7420 Controller Hardware Overview
Figure Legend
Locator LED and button (white)
1
Service Required LED (amber)
2
Power/OK LED (green)
3
Power button
4
Service Processor (SP) OK LED
5
(green)
Fan/CPU/Memory Service
6
Required LED

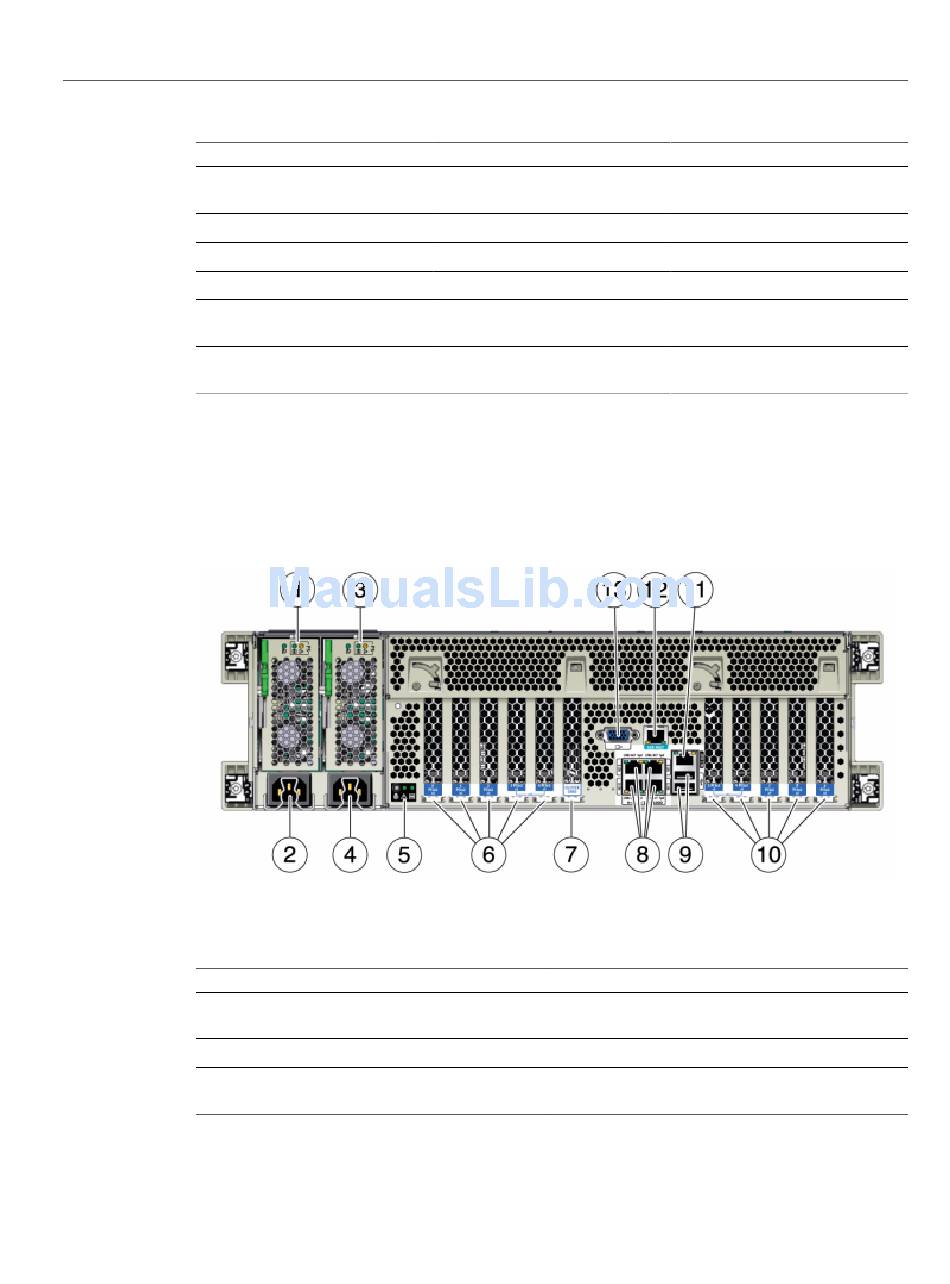

7420 Back Panel Components - The following graphic shows the rear panel of the controller.
Base configuration HBAs are not depicted in this illustration.
FIGURE 37
Figure Legend
Power supply unit 0 status LEDs OK: green Power
1
Supply Fail: amber AC OK: green
Power supply unit 0 AC inlet
2
Power supply unit 1 status LEDs OK: green Power
3
Supply Fail: amber AC OK: green
216 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
Figure Legend
Power Supply (PS) Service
7
Required LED
Over Temperature Warning LED
8
USB 2.0 Connectors
9
DB-15 video connector
10
Boot drive 0 (mirrored)
11
Boot drive 1 (mirrored)
12
7420 Controller Rear Panel
Figure Legend
SSD 2 (optional)
13
SSD 3 (optional)
14
SSD 4 (optional)
15
SSD 5 (optional)
16
Figure Legend
Network (NET) 10/100/1000 ports: NET0-NET3
8
USB 2.0 ports
9
PCIe slots 5-9
10
