Oracle ZFS Storage Appliance Service Manual page 114

ZS3-4 Controller Hardware Overview

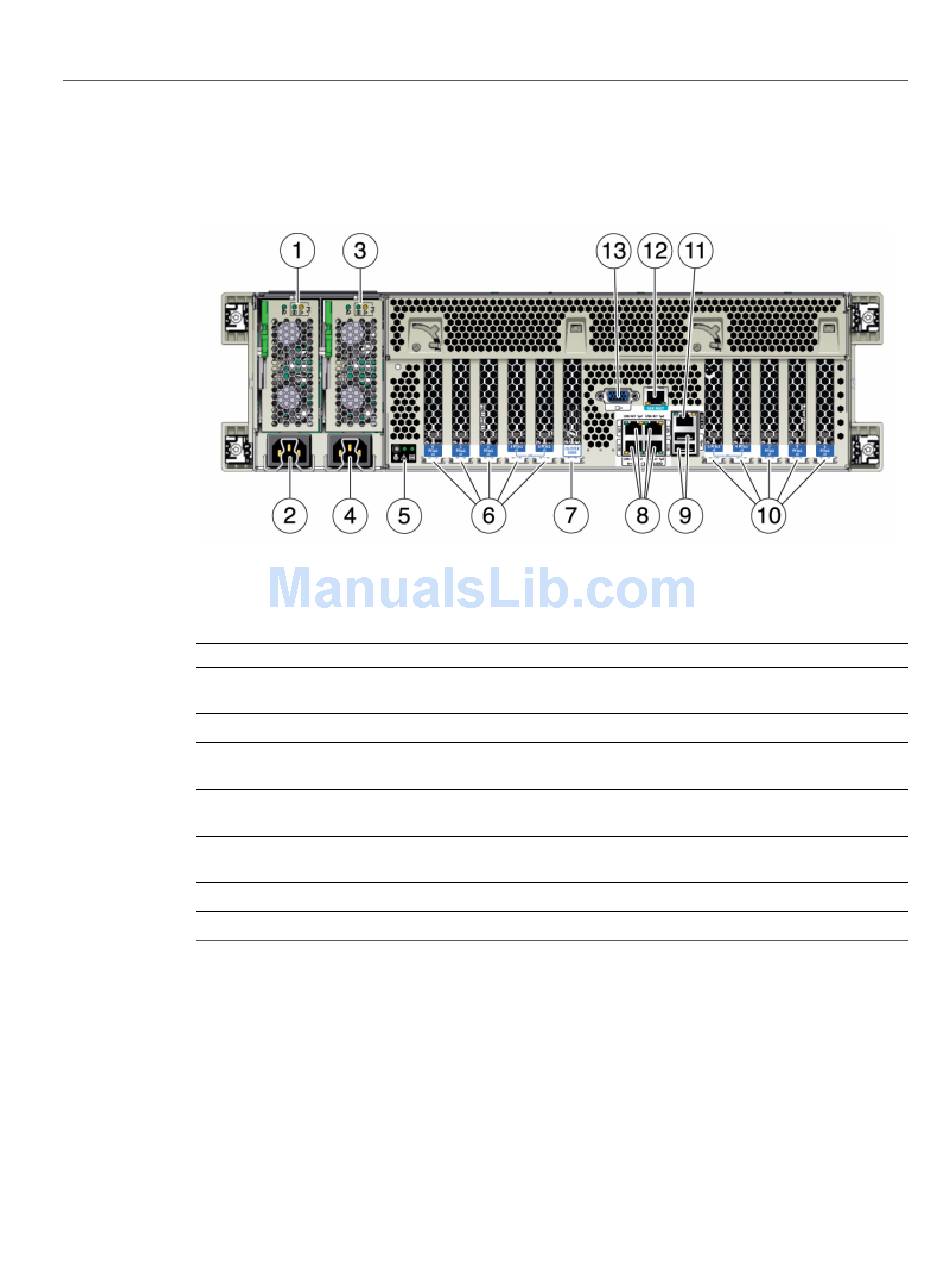

FIGURE 14
Figure Legend
Power supply unit 0 status LEDs OK: green Power
1
Supply Fail: amber AC OK: green
Power supply unit 0 AC inlet
2
Power supply unit 1 status LEDs OK: green Power
3
Supply Fail: amber AC OK: green
Power supply unit 1 AC inlet
4
System status LEDs Power: green Attention: amber
5
Locate: white
PCIe slots 0-4
6
Cluster card slot
7
Cluster Interface Card Compatibility - The ZS3-4 controller contains a Version 2 cluster
interface card. This card cannot be replaced with a Version 3 cluster interface card.
For information about how to connect cables to form a cluster, see
in Oracle ZFS Storage Appliance Cabling
114 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
ZS3-4 Controller Rear Panel
Figure Legend
Network (NET) 10/100/1000 ports: NET0-NET3
8
USB 2.0 ports
9
PCIe slots 5-9
10
Network management (NET MGT) 10/100 BASE-T
11
Ethernet port
Serial management (SER MGT) port
12
DB-15 video connector
13
"Connecting Cluster Cables"
Guide.
