Disk Shelf Hardware Overview
FIGURE 68
Figure Legend
Power Supply Filler Panel, Slot 0
1
Power Supply with Fan Module 1
2
Power Supply with Fan Module 2
3
Note -
slots.
276 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

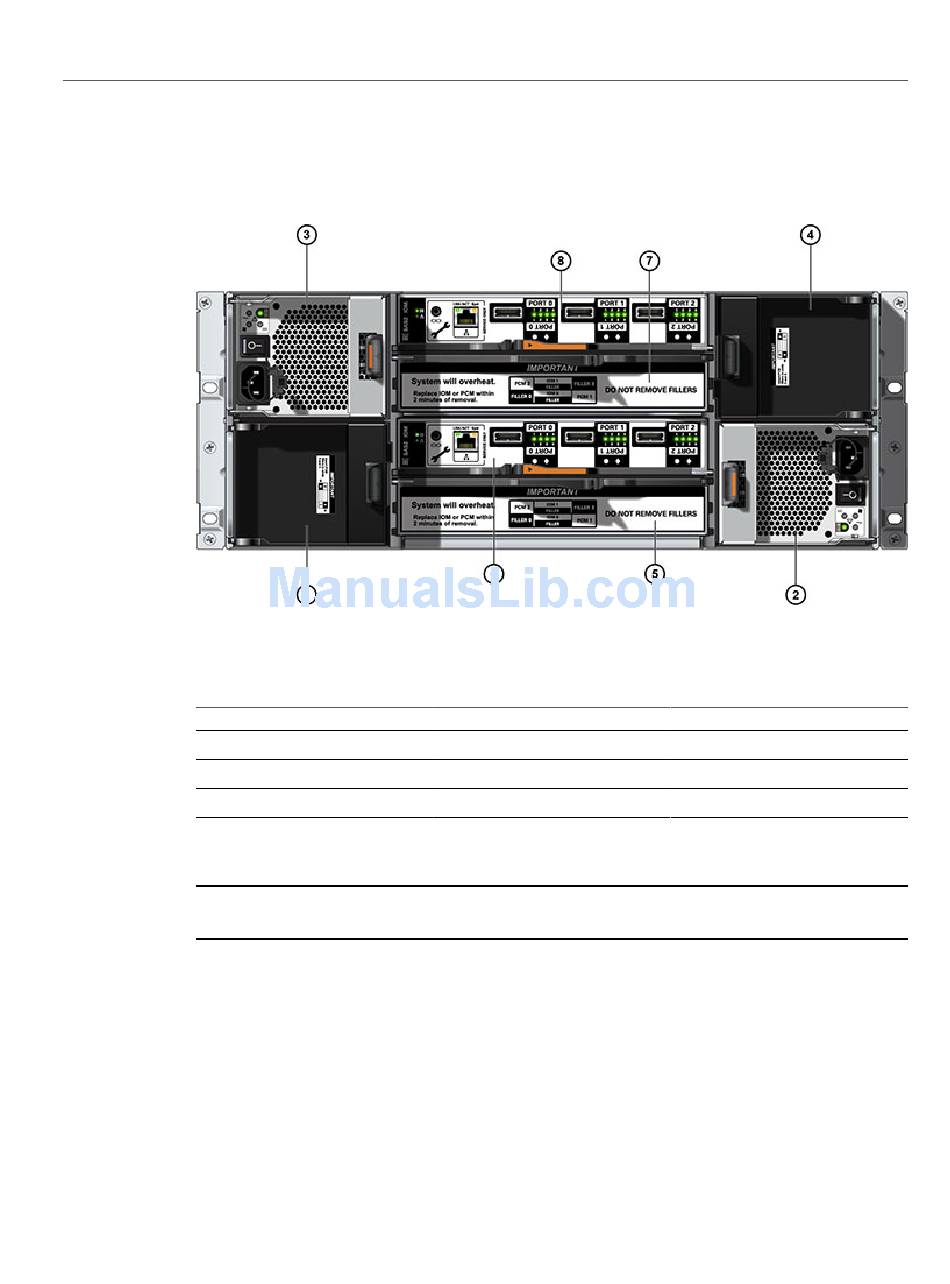

Oracle Storage Drive Enclosure DE2-24C Back Panel
It is especially important that power supplies and their filler panels are in the correct
Figure Legend
Power Supply Filler Panel, Slot 3
4
I/O Module Filler Panel
5
I/O Module 0
6
Figure Legend
I/O Module Filler Panel
7
I/O Module 1
8
