5.9.3.3

Monitor OFF connector

The monitor OFF connector (X28) offers the possibility to turn off the displays attached to the conga-IA5.
Table 34 Monitor OFF (Connector X28) Pinout Description
Pin Function
1 MONITOR_OFF#
2 GND
Connector Type
X28: 2.54mm, 2 pin Molex connector
5.10

PCI Express

The conga-IA5 provides 3 PCIe interfaces — a x1 PCIe slot on connector X8, a half-size mini PCIe (mPCIe) and a full size mini PCIe / mini SATA
slot on connector X9.
5.10.1

x1 PCIe Slot

The conga-IA5 offers one PCIe x1 slot on connector X8. This connector shares the SoC's PCIe 0 signals with connector X9 (mPCIe / mSATA
slot) via a multiplexer. When an mPCIe device is inserted into connector X9, the multiplexer automatically switches the PCIe signals to mPCIe
slot (X9).
Table 35 x1 PCIe Slot (Connector X8) Pinout Description
Pin Signal
B1 +12V
B2 +12V
B3 +12V
B4 GND
B5 SMB_CLK
B6 SMB_DAT
B7 GND
B8 +3.3V
Copyright © 2017 congatec AG
Pin Signal
A1 GND
A2 +12V
A3 +12V
A4 GND
A5 N.C.
A6 N.C.
A7 N.C.
A8 N.C.

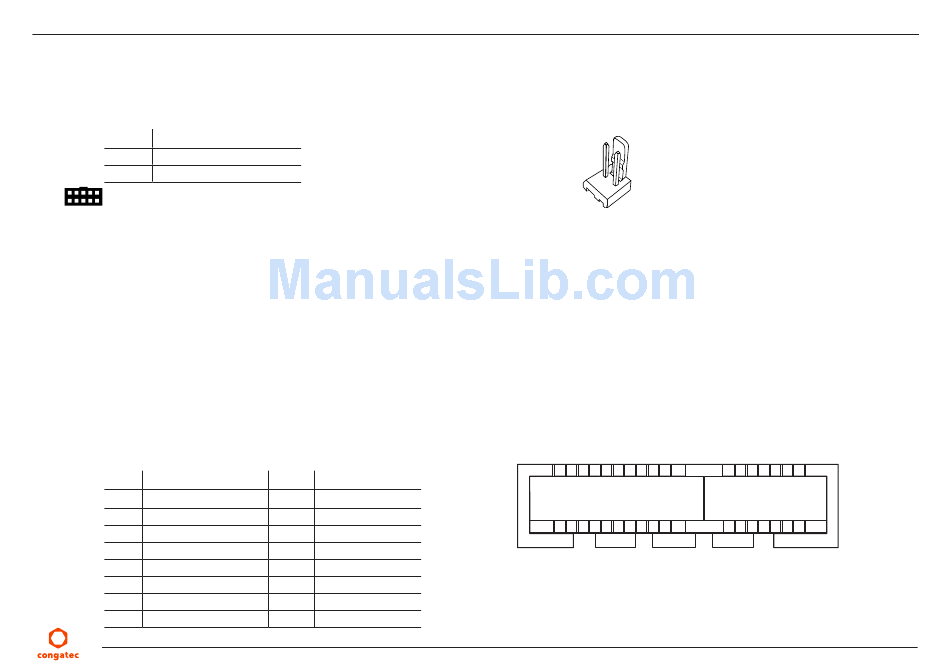

Monitor OFF - Connector X28
PCIe Slot - Connector X8
x1 PCIe
