5.4
PCIe Connectors
The conga-MEVAL provides:
• one x4 PCIe slot connector X74 (PCIe lanes 0–3)
• two x1 PCIe slot connectors X8 and X84 (PCIe lanes 1 and 3)
• one mPCIe socket connector X15 (PCIe lane 2)

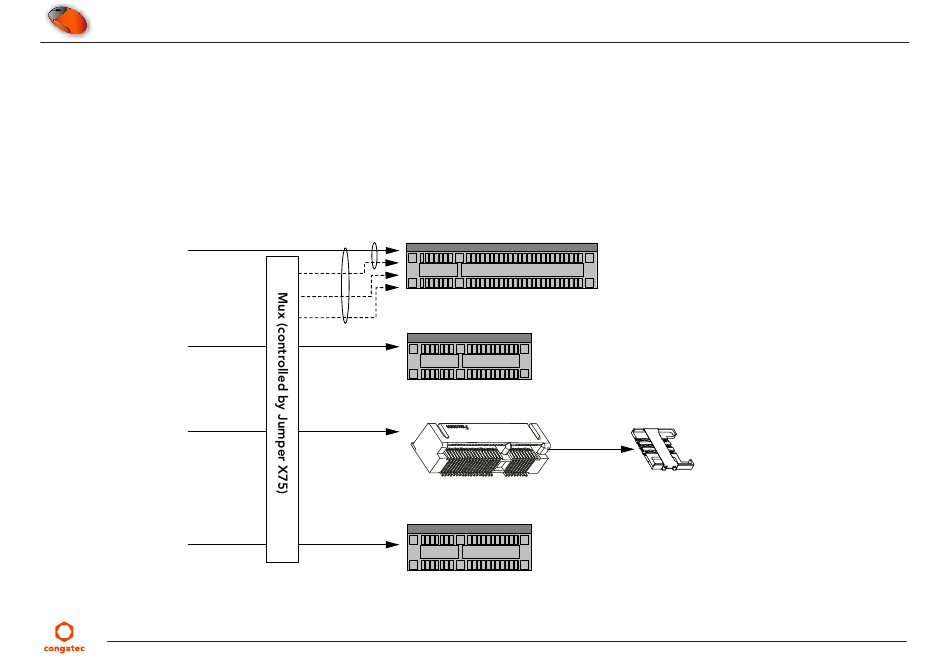

The pcie lanes are routed as shown below:
PCIe Lane 0
PCIe Lane 1
PCIe Lane 2
PCIe Lane 3
Copyright © 2022 congatec GmbH
x4 lanes - Slot 0 (X74)
PCIe Lane 1
PCIe Lane 2
PCIe Lane 3
x1 Slot 1 (X8)
Mini PCIe (X15)
x1 Slot 2 (X84)
SIM Card Slot (X88)
CET0m10
25/58
