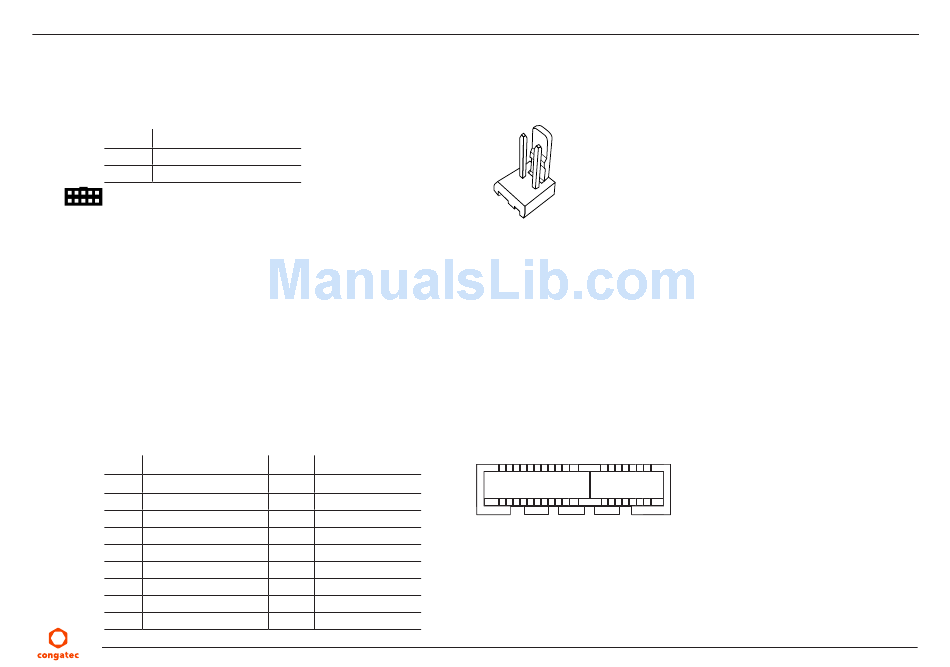

Monitor OFF Header

The conga-IA5 provides a monitor OFF header (X28). You can use it to turn off the attached displays.
Table 37 X28 Pinout Description
Pin Function
1 MONITOR_OFF#
2 GND
Connector Type
X28: 2x1 pins, 2.54mm pitch
5.9

PCI Express Connectors

The conga-IA5 provides a PCIe x1 card slot, a mini PCIe card slot (half-size ) and a mini PCIe (full-size) card slot. You can use either the mini
PCIe half-size or full-size card slot.
5.9.1

PCIe x1 Card Slot

The conga-IA5 provides one PCIe x1 card slot (X8). This connector shares the SoC's PCIe 2 signals with mini PCIe card slot (X9) via a multiplexer.
When an mPCIe device is inserted into connector X9, the multiplexer automatically switches the PCIe signals to the mini PCIe card slot (X9).
Table 38 X8 Pinout Description
Pin Signal
B1 +12V
B2 +12V
B3 +12V
B4 GND
B5 SMB_CLK
B6 SMB_DAT
B7 GND
B8 +3.3V
B9 N.C.
Copyright © 2017 congatec AG
Pin Signal
A1 GND
A2 +12V
A3 +12V
A4 GND
A5 N.C.
A6 N.C.
A7 N.C.
A8 N.C.
A9 +3.3V
X28
X8
