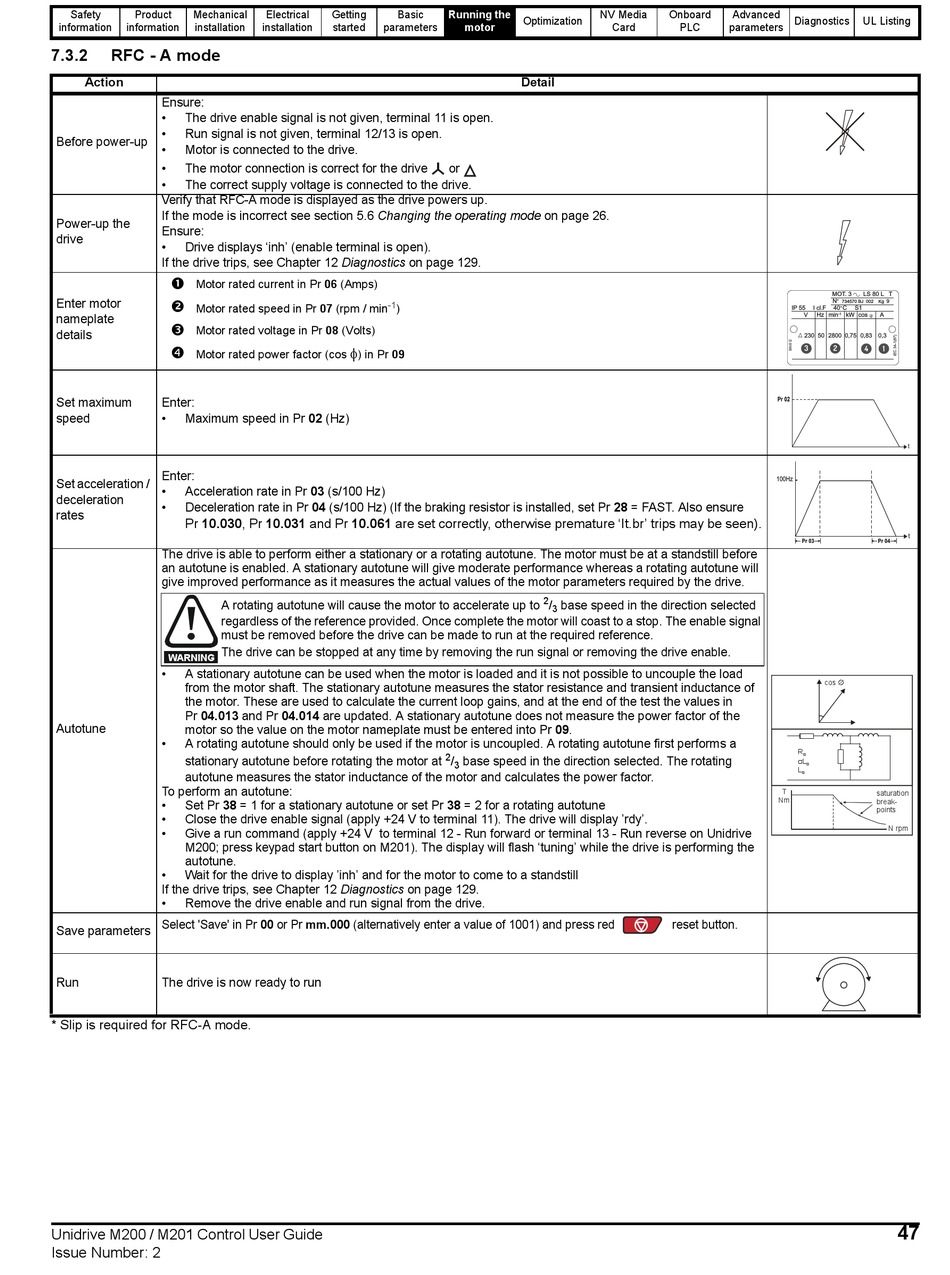

7.3.2 RFC - A mode
Action
Ensure:
• The drive enable signal is not given, terminal 11 is open.
• Run signal is not given, terminal 12/13 is open.
Before power-up
• Motor is connected to the drive.
• The motor connection is correct for the drive
• The correct supply voltage is connected to the drive.
Verify that RFC-A mode is displayed as the drive powers up.
If the mode is incorrect see section 5.6 Changing the operating mode on page 26.
Power-up the
Ensure:
drive
• Drive displays 'inh' (enable terminal is open).
If the drive trips, see Chapter 12 Diagnostics on page 129.

Motor rated current in Pr 06 (Amps)
Enter motor

Motor rated speed in Pr 07 (rpm / min
nameplate

Motor rated voltage in Pr 08 (Volts)
details

Motor rated power factor (cos
Set maximum Enter:
speed • Maximum speed in Pr 02 (Hz)
Enter:
Set acceleration /
• Acceleration rate in Pr 03 (s/100 Hz)
deceleration
• Deceleration rate in Pr 04 (s/100 Hz) (If the braking resistor is installed, set Pr 28 = FAST. Also ensure
rates
Pr 10.030, Pr 10.031 and Pr 10.061 are set correctly, otherwise premature 'It.br' trips may be seen).
The drive is able to perform either a stationary or a rotating autotune. The motor must be at a standstill before
an autotune is enabled. A stationary autotune will give moderate performance whereas a rotating autotune will
give improved performance as it measures the actual values of the motor parameters required by the drive.
A rotating autotune will cause the motor to accelerate up to
regardless of the reference provided. Once complete the motor will coast to a stop. The enable signal
must be removed before the drive can be made to run at the required reference.
The drive can be stopped at any time by removing the run signal or removing the drive enable.
WARNING
• A stationary autotune can be used when the motor is loaded and it is not possible to uncouple the load
from the motor shaft. The stationary autotune measures the stator resistance and transient inductance of
the motor. These are used to calculate the current loop gains, and at the end of the test the values in
Pr 04.013 and Pr 04.014 are updated. A stationary autotune does not measure the power factor of the
Autotune
motor so the value on the motor nameplate must be entered into Pr 09.
• A rotating autotune should only be used if the motor is uncoupled. A rotating autotune first performs a
stationary autotune before rotating the motor at
autotune measures the stator inductance of the motor and calculates the power factor.
To perform an autotune:
• Set Pr 38 = 1 for a stationary autotune or set Pr 38 = 2 for a rotating autotune
• Close the drive enable signal (apply +24 V to terminal 11). The drive will display 'rdy'.
• Give a run command (apply +24 V to terminal 12 - Run forward or terminal 13 - Run reverse on Unidrive
M200; press keypad start button on M201). The display will flash 'tuning' while the drive is performing the
autotune.
• Wait for the drive to display 'inh' and for the motor to come to a standstill
If the drive trips, see Chapter 12 Diagnostics on page 129.
• Remove the drive enable and run signal from the drive.
Select 'Save' in Pr 00 or Pr mm.000 (alternatively enter a value of 1001) and press red
Save parameters
Run The drive is now ready to run
* Slip is required for RFC-A mode.
Unidrive M200 / M201 Control User Guide
Issue Number: 2
Electrical Getting Basic
installation started parameters
-1
)

) in Pr 09
Running the NV Media
Optimization
motor Card
Detail
or
2
/ base speed in the direction selected
3
2
/ base speed in the direction selected. The rotating
3
Onboard Advanced
Diagnostics
PLC parameters
MOT. 3
N
734570 BJ 002
IP 55 I cl.F 40 C
V Hz min kW cos
-1
230 50 2800 0,75 0,83 0,3
3 2
Pr 02
100Hz
Pr 03

cos
R
S
L
S
L
S
T
Nm
reset button.
UL Listing
LS 80 L T
9
Kg
S1
A
4
1
t
t
Pr 04
saturation
break-
points
N rpm
