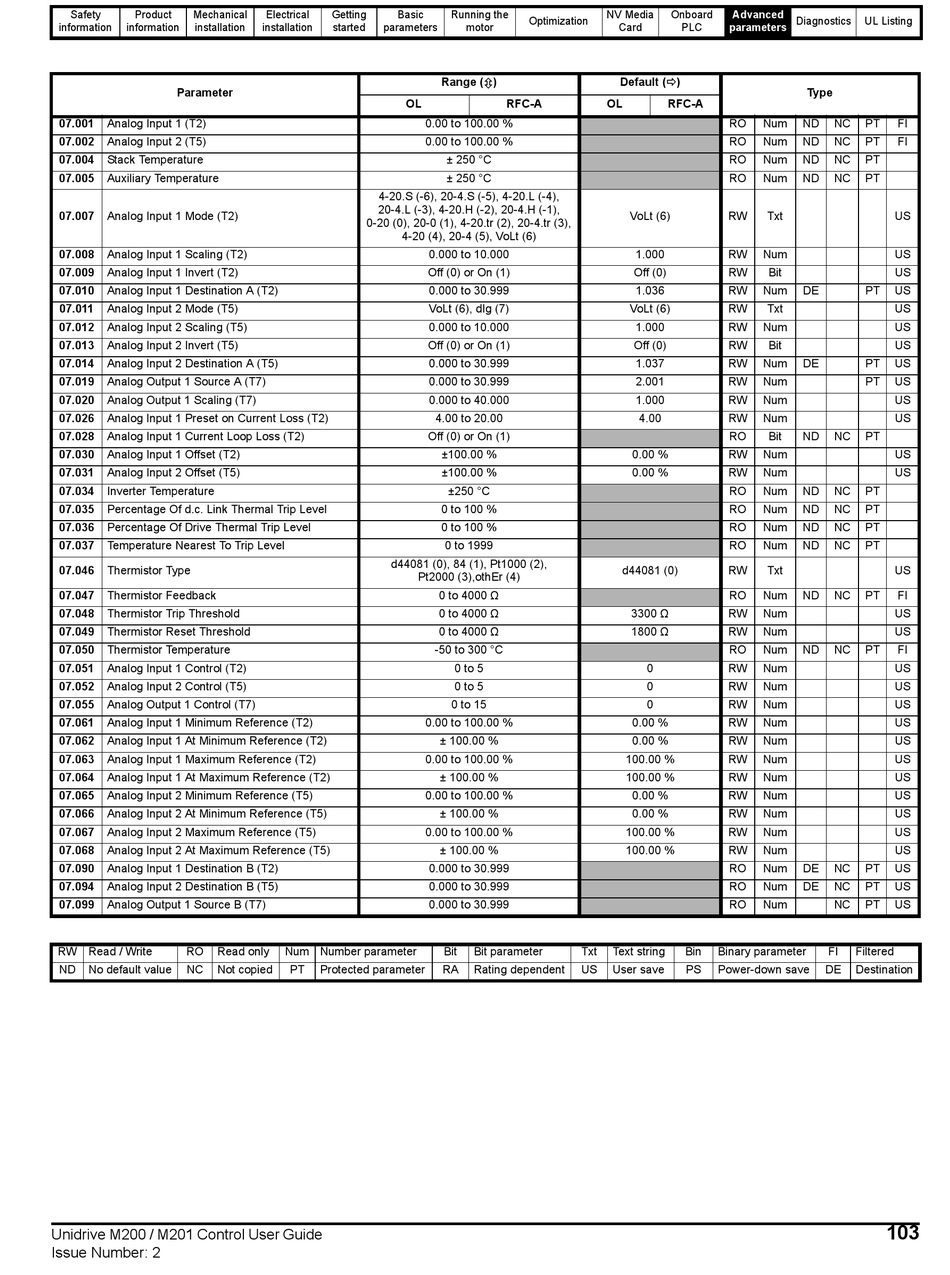

Nidec Unidrive M200 User Manual page 103

Safety Product Mechanical
information information installation
Parameter
07.001 Analog Input 1 (T2)
07.002 Analog Input 2 (T5)
07.004 Stack Temperature
07.005 Auxiliary Temperature
07.007 Analog Input 1 Mode (T2)
07.008 Analog Input 1 Scaling (T2)
07.009 Analog Input 1 Invert (T2)
07.010 Analog Input 1 Destination A (T2)
07.011 Analog Input 2 Mode (T5)
07.012 Analog Input 2 Scaling (T5)
07.013 Analog Input 2 Invert (T5)
07.014 Analog Input 2 Destination A (T5)
07.019 Analog Output 1 Source A (T7)
07.020 Analog Output 1 Scaling (T7)
07.026 Analog Input 1 Preset on Current Loss (T2)
07.028 Analog Input 1 Current Loop Loss (T2)
07.030 Analog Input 1 Offset (T2)
07.031 Analog Input 2 Offset (T5)
07.034 Inverter Temperature
07.035 Percentage Of d.c. Link Thermal Trip Level
07.036 Percentage Of Drive Thermal Trip Level
07.037 Temperature Nearest To Trip Level
07.046 Thermistor Type
07.047 Thermistor Feedback
07.048 Thermistor Trip Threshold
07.049 Thermistor Reset Threshold
07.050 Thermistor Temperature
07.051 Analog Input 1 Control (T2)
07.052 Analog Input 2 Control (T5)
07.055 Analog Output 1 Control (T7)
07.061 Analog Input 1 Minimum Reference (T2)
07.062 Analog Input 1 At Minimum Reference (T2)
07.063 Analog Input 1 Maximum Reference (T2)
07.064 Analog Input 1 At Maximum Reference (T2)
07.065 Analog Input 2 Minimum Reference (T5)
07.066 Analog Input 2 At Minimum Reference (T5)
07.067 Analog Input 2 Maximum Reference (T5)
07.068 Analog Input 2 At Maximum Reference (T5)
07.090 Analog Input 1 Destination B (T2)
07.094 Analog Input 2 Destination B (T5)
07.099 Analog Output 1 Source B (T7)
RW Read / Write RO Read only
ND No default value NC Not copied
