Safety Product Mechanical
information information installation
3

Mechanical installation

3.1

Installing / removing options

Power down the drive before installing / removing the SI option module. Failure to do so may result in damage to the product.
CAUTION

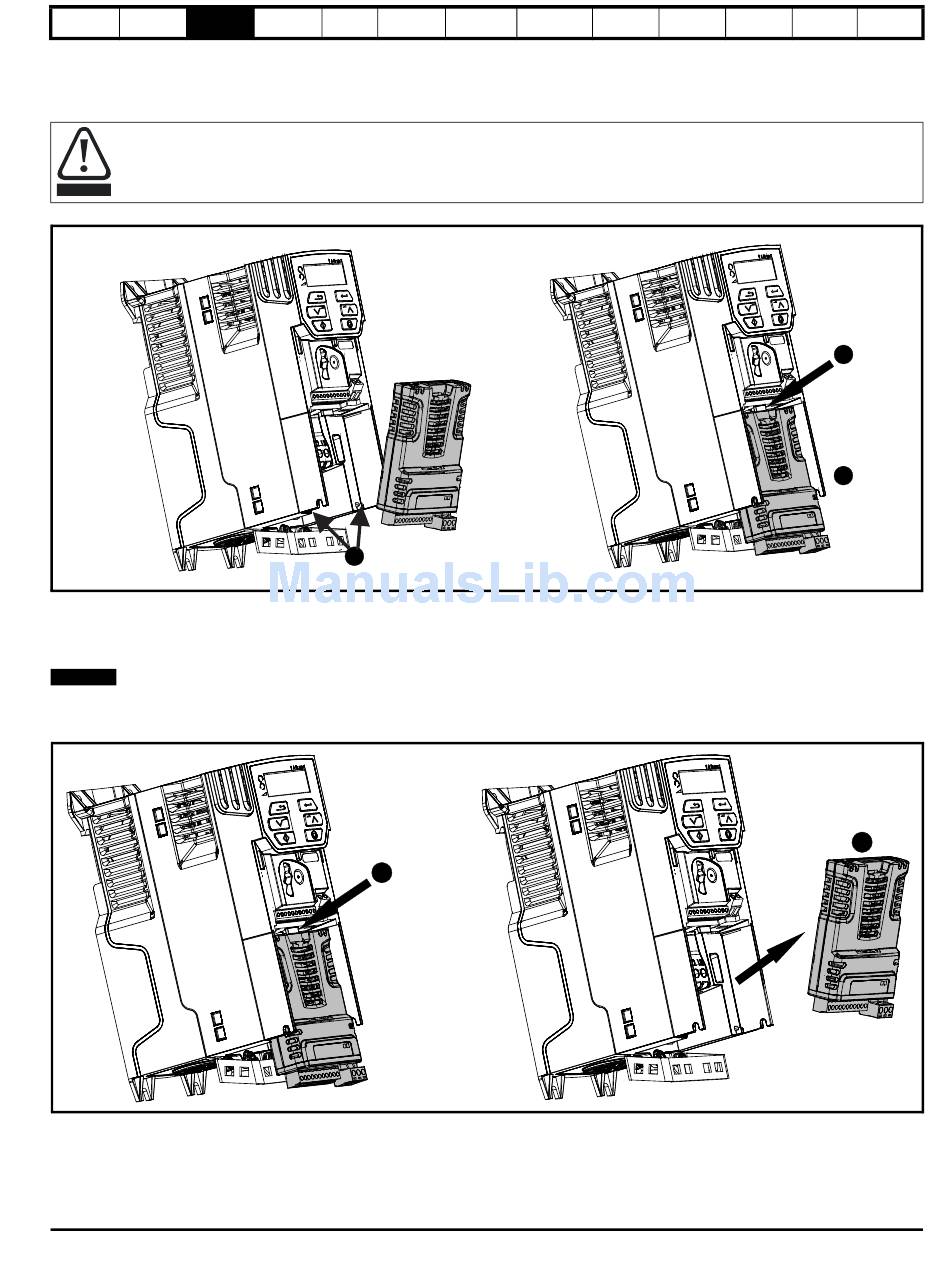

Figure 3-1 Installation of an SI option module (size 2 to 4)
Installing the option module
• With the option module tilted slightly backwards, align and locate the two holes in the rear of the option module onto the two tabs (1) on the drive.
• Press the option module onto the drive as shown in (2) until the connector mates with the drive, ensuring that the tab (3) retains the option module
in place.
NOTE
Check that the option module is securely located on the drive. Always ensure that the terminal cover is always replaced before use as this ensures
that the option module is firmly secured.
Figure 3-2 Removing the SI-Option module (size 2 to 4)
• Press down on the tab (1) to release the option module from the drive housing as shown.
• Tilt the option module slightly towards you and pull away from the drive housing (2).
Unidrive M200 / M201 Control User Guide
Issue Number: 2
