Nidec Unidrive M200 User Manual page 16

Safety Product Mechanical
information information installation

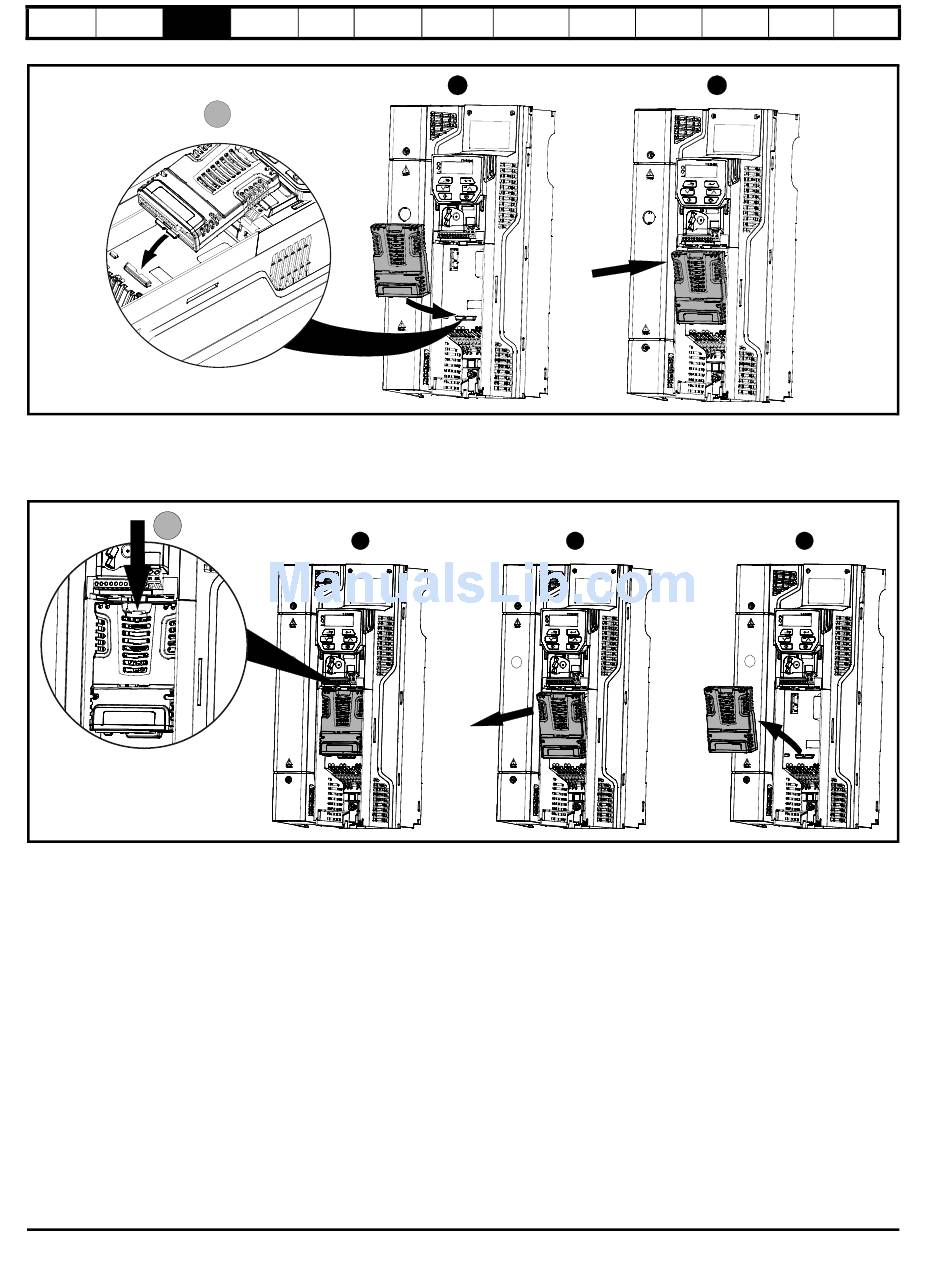

Figure 3-3 Installation of an SI option module (size 5 to 9)
• Move the option module in the direction shown (1).
• Align and insert the option module tab into the slot provided (2), This is shown in the detailed view (A).
• Press down on the option module until it clicks in place.
Figure 3-4 Removal of an SI option module (size 5 to 9)
A
• To release the option module from the drive housing, press down on the tab (1) as shown in detailed view (A).
• Tilt the option module towards you as shown in (2).
• Remove the option module by lifting away from the drive as shown in (3).
16
Electrical Getting Basic
installation started parameters
A
1
Running the NV Media
Optimization
motor Card
1
2
Onboard Advanced
Diagnostics
PLC parameters
2
3
Unidrive M200 / M201 Control User Guide
Issue Number: 2
UL Listing
