Configuring metering values
586
programmable pushbutton or selector switch button being activated, a new fault report
being triggered, selection of the autorecloser in the single line diagram, or toggling of the
local/remote status.

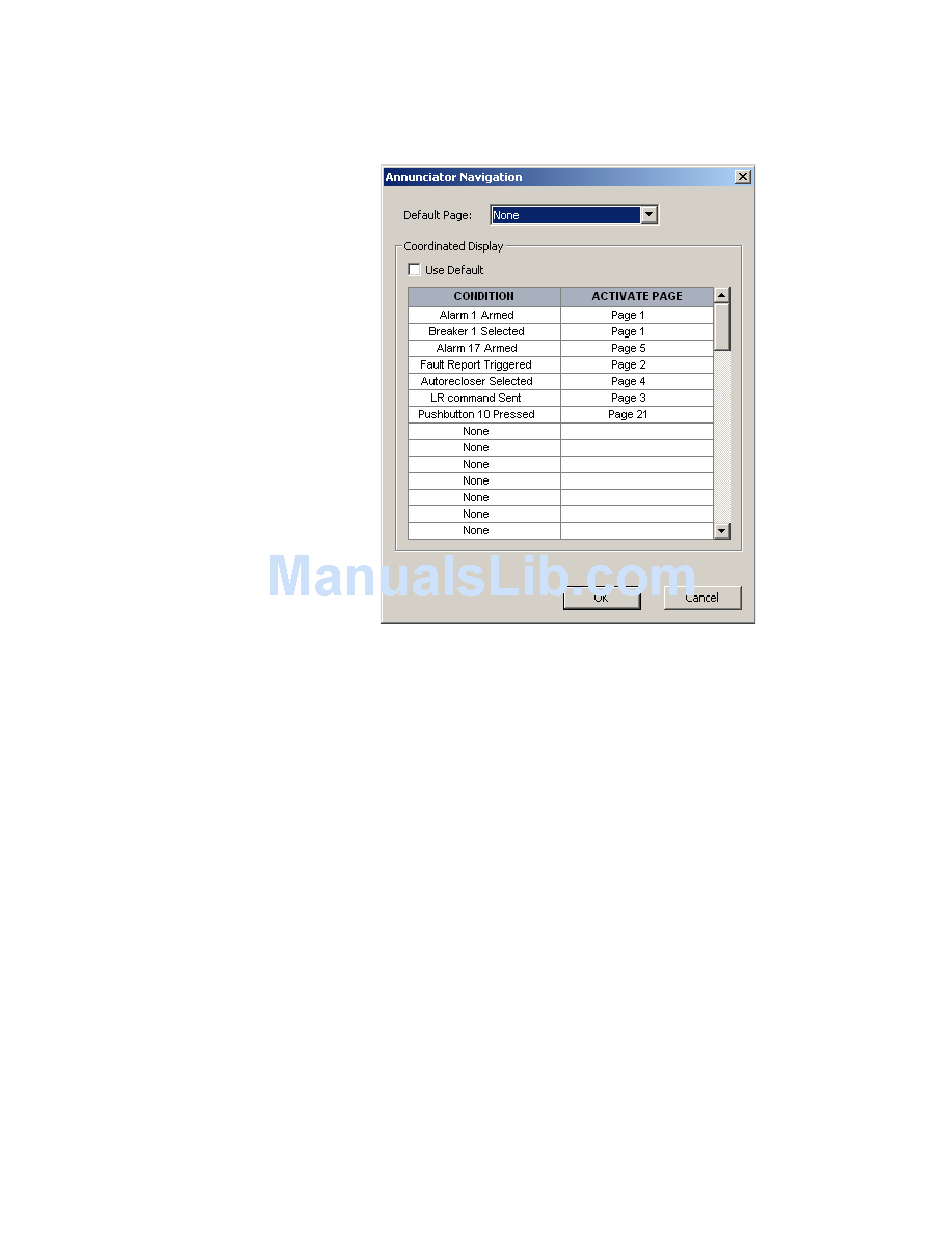

Figure 509: Annunciator navigation dialog
If the Use Default check box is selected and the
the alarm page to display follows the following sequence:
• In the event of a new alarm, the page containing the alarm will be promoted to the
active page. If there are multiple pages with alarms, the lowest numbered page is
promoted.
• If there are alarms on multiple pages, and alarms on some pages have already been
acknowledged but not reset by the user, then the lowest numbered page with an
alarm is promoted above any page that has an acknowledged alarm.
The Default Page menu item allows the user to select the page that is displayed after the
user-specified period of inactivity has elapsed.
Plus
The D90 is shipped with a complete range of default annunciator settings. These may
be modified according to the specific applications.
The following dialog box is displayed when the Configure button is pressed for metered
value indicators.
Default Page
PLUS
D90 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 12: LOCAL INTERFACE
is set to "None", selection of
