NOTE:

Buffered report control configuration

134
Unbuffered Reports BufTm
Range: 0 to 4294967295 in steps of 1
Default: 0
This setting specifies the buffer time.
Unbuffered Reports TrgOps
Range: 0 to 65535 in steps of 1
Default: 0
This setting specifies a bitmask that selects the trigger options. The following bits are
Plus
supported by the D90
– Bit 1: data-change.
– Bit 4: integrity.
– Bit 5: general interrogation.
Unbuffered Reports IntgPd
Range: 0, or 250 to 4294967295 in steps of 1
Default: 0
This setting specifies the integrity period for unbuffered reports.
Disconnect any IEC 61850 client connection to the D90
to the unbuffered report configuration. Disconnecting the rear Ethernet connection from
Plus
the D90 will disconnect the IEC 61850 client connection.
IEC 61850 buffered reporting is provided in the GGIO1 logical nodes (for binary status
values) and MMXU1 to MMXU4 (for analog measured values). Report settings are
configured using the EnerVista UR
via an IEC 61850 client.
Select the Settings > Communications > IEC 61850 > Buffered Report Control
Configuration menu item to open the IEC 61850 buffered report configuration window.

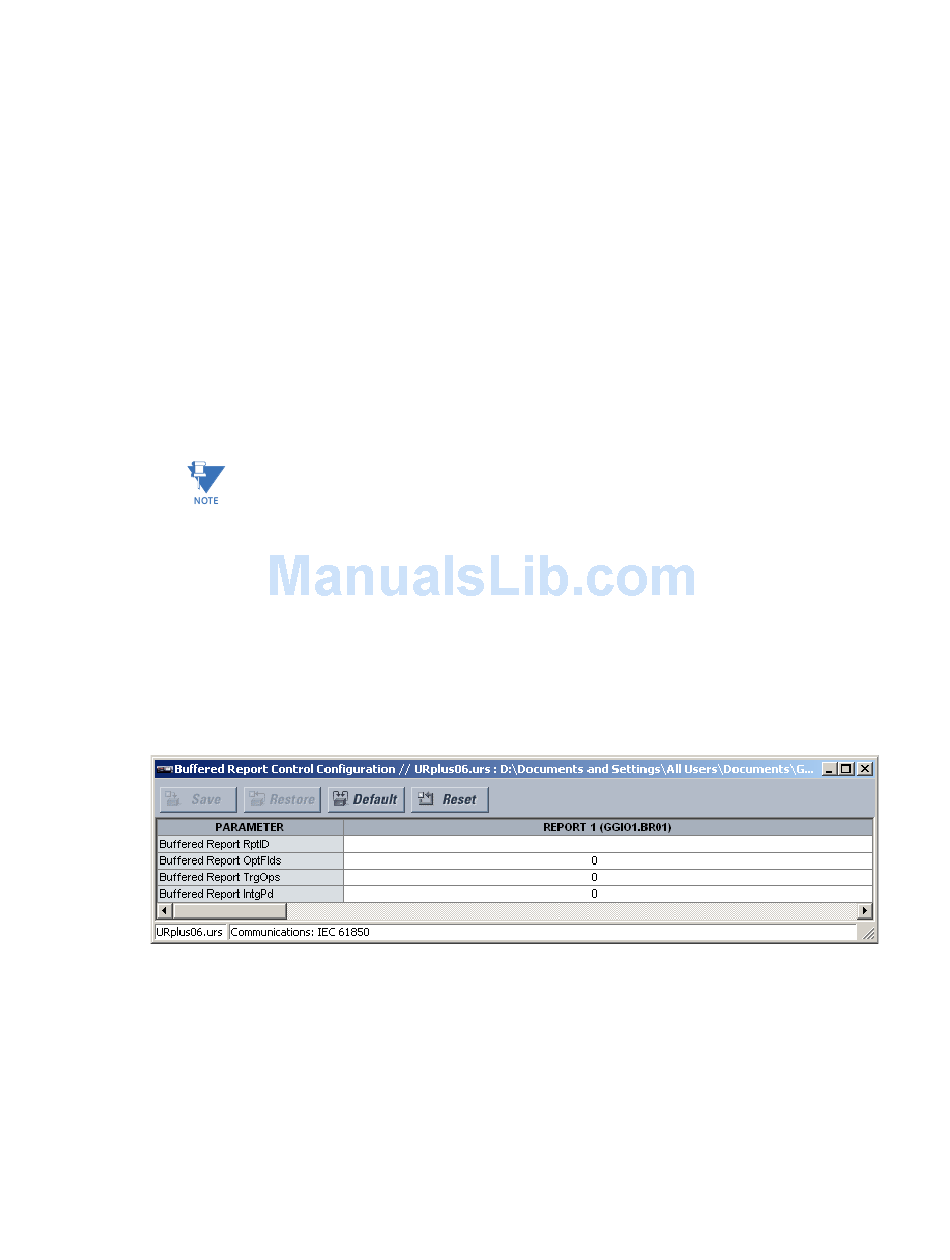

Figure 108: IEC 61850 buffered report control configuration
The following settings are available for each buffered report. Up to 6 buffered reports can
be configured. Changes to the report configuration will not take effect until the D90
restarted.
Buffered Reports RptID
Range: up to 65 alphanumeric characters
Default: empty
This setting specifies the name for the IEC 61850 buffered report.
.
Plus
Setup software, substation configurator software, or
PLUS
