MIMIC DIAGRAM EDITOR

Static symbols

590
Figure 513: Mimic diagram editor dynamic symbols
A maximum of 1010 dynamic components is allowed for each mimic diagram.
When a dynamic symbol is selected and added to the diagram, a window will appear to
configure the device. This allows the user to specify the name and orientation of the
device. For example, the breaker properties device configuration window is shown below.

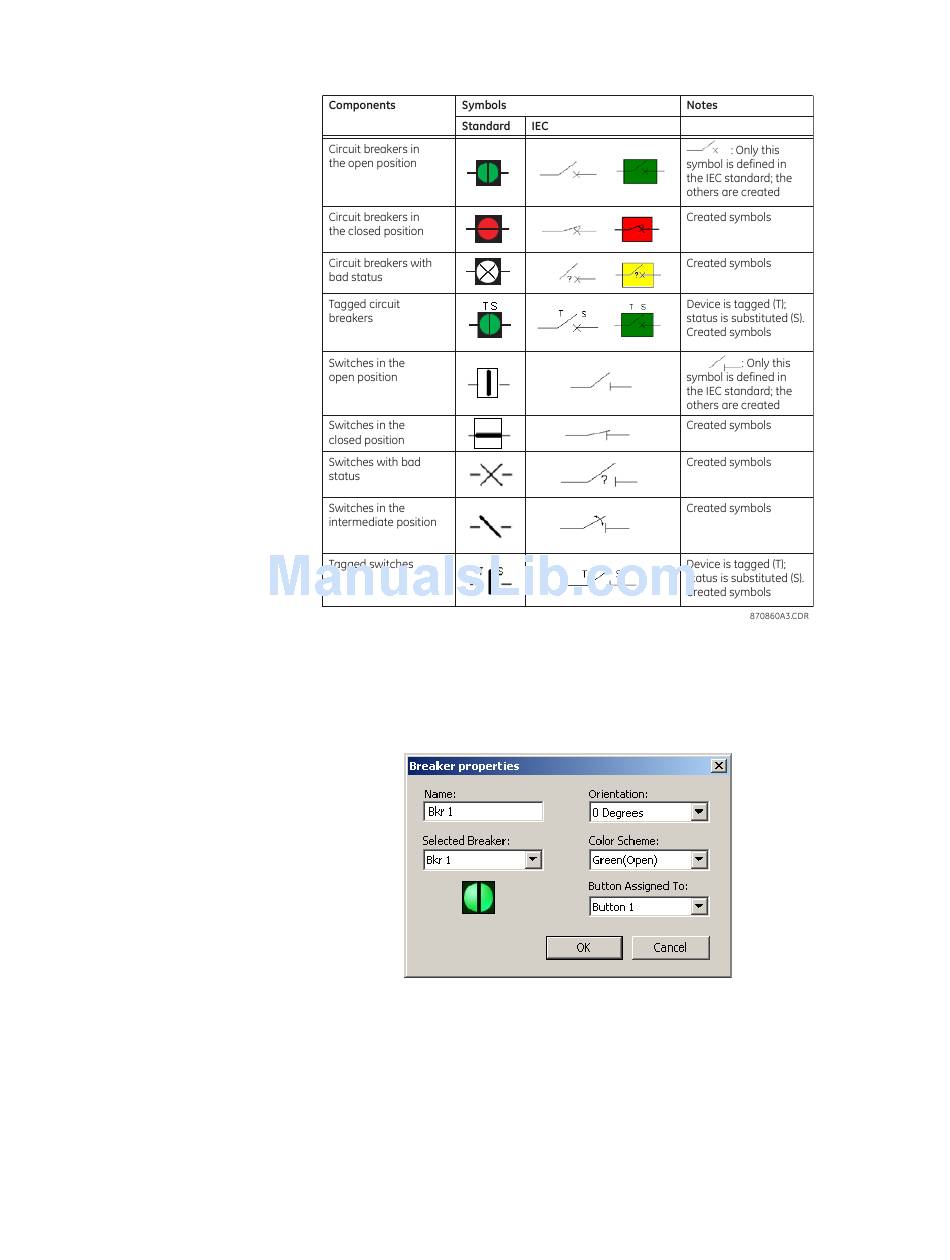

Figure 514: Breaker properties device configuration
The following static symbols are available. The symbols can be displayed in the standard
Plus
UR -series format or as IEC style symbols.
