CHAPTER 7: PROTECTION
Phase overvoltage
PLUS
D90 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PHASE UV1 OP B.........................................Asserted when phase B of the phase undervoltage 1 element
PHASE UV1 OP C.........................................Asserted when phase C of the phase undervoltage 1 element
PHASE UV1 PKP...........................................Asserted when at least one phase of the phase undervoltage 1
PHASE UV1 PKP A.......................................Asserted when phase A of the phase undervoltage 1 element
PHASE UV1 PKP B.......................................Asserted when phase B of the phase undervoltage 1 element
PHASE UV1 PKP C ......................................Asserted when phase C of the phase undervoltage 1 element
PHASE UV2....................................................Same set of operands as shown above for the phase
The logic for the phase undervoltage 1 element is shown below. The logic is similar for all
phase undervoltage elements.

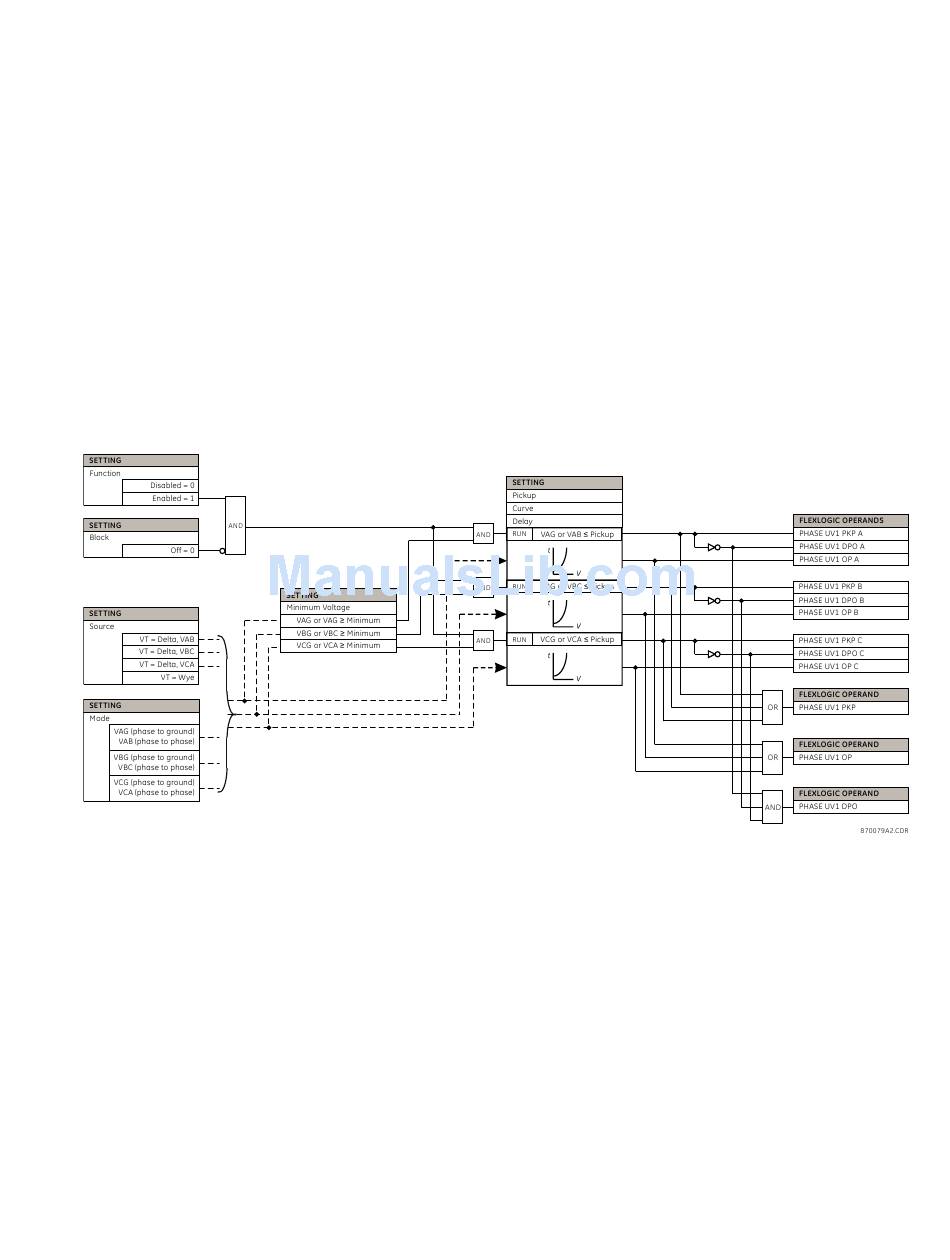

Figure 225: Phase undervoltage 1 scheme logic
The phase overvoltage element may be used as an instantaneous element with no
intentional time delay or as a definite time element. The input voltage is the phase-to-
phase voltage, either measured directly from delta-connected VTs or as calculated from
phase-to-ground (wye) connected VTs. The specific voltages to be used for each phase are
shown in the logic diagram.
Select the Settings > Protection > Elements > Group 1 > Voltage > Phase OV menu item
to open the phase overvoltage configuration window.
operates.
operates.
element picks up.
picks up.
picks up.
picks up.
undervoltage 2 element.
