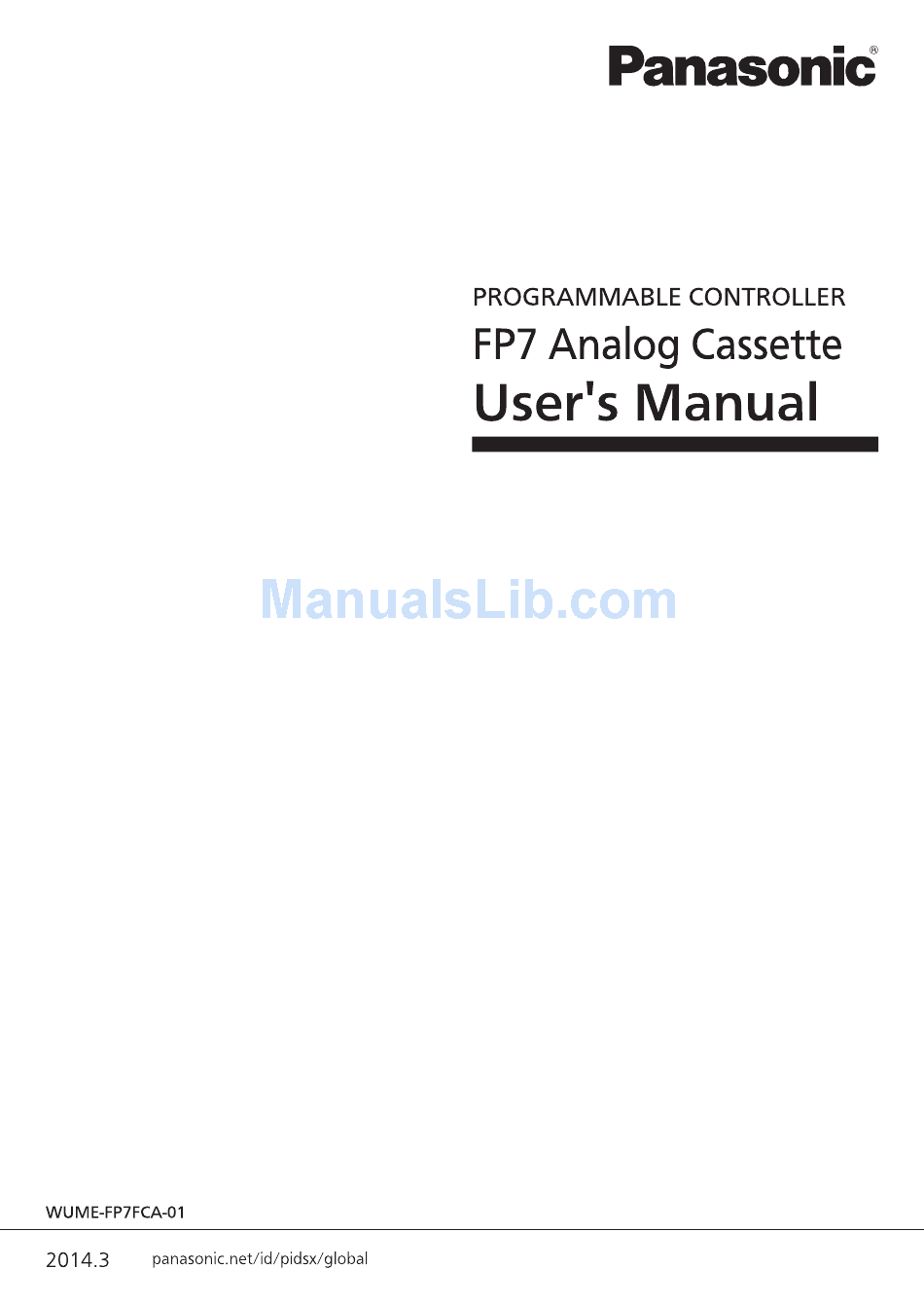

Panasonic FP7 User Manual

Analog casette, programable controller.
Hide thumbs
Also See for FP7
User manual - 275 pages
User manual - 109 pages
User manual - 109 pages

Advertisement

Advertisement

   Also See for Panasonic FP7

   Related Manuals for Panasonic FP7

   Summary of Contents for Panasonic FP7

  • Page 2

    It could lead to an electric shock. Copyright / Trademarks -This manual and its contents are copyrighted. Panasonic -You may not copy this manual, in whole or part, without written consent of Industrial Devices SUNX Co., Ltd.

  • Page 3

    Types of Manual • There are different types of users manual for the FP7 series, as listed below. Please refer to a relevant manual for the unit and purpose of your use. • The manuals can be downloaded on our website: http://industrial.panasonic.com/ac/e/dl_center/manual/...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1. Unit Functions and Restrictions ........1-1 Unit Functions and How They Work ............1-2 1.1.1 Functions of Cassettes ................1-2 1.1.2 Types and Model Numbers of Cassettes ..........1-2 Restrictions on Combinations of Units ........... 1-3 1.2.1 Restrictions on Power Consumption ............

  • Page 5

    Table of Contents 3.2.2 Example of Thermocouple Input ............. 3-3...

  • Page 6

    Table of Contents...

  • Page 7: Unit Functions And Restrictions

    Unit Functions and Restrictions...

  • Page 8: Unit Functions And How They Work

    (K8000) so that you can determine the situation is not normal. 1.1.2 Types and Model Numbers of Cassettes Name Model No. Analog I/O cassette 2-ch Input, 1-ch output AFP7FCA21 FP7 Extension Cassette Analog input cassette 2-ch input AFP7FCAD2 (Function Cassette) Thermocouple input cassette...

  • Page 9: Restrictions On Combinations Of Units

    1.2.2 Applicable Versions of Unit and Software For using the above function cassettes, the following versions of unit and software are required. Item Applicable version FP7 CPU unit Ver.2.0 or later Programmingn tool software Ver.1.4 or later FPWIN GR7 1.2.3 Restrictions on the Combination of Extension Cassettes There are following restrictions depending on units and cassettes to be used.

  • Page 10

    Unit Functions and Restrictions...

  • Page 11: Specifications

    Specifications...

  • Page 12: Analog I/o Cassette And Analog Input Cassette

    Specifications 2.1 Analog I/O Cassette and Analog Input Cassette 2.1.1 Input Specifications (AFP7FCA21 / AFP7FCAD2)  Input specifications Items Description No. of input points 2 channels (non-insulated between channels) Voltage 0-10 V, 0-5 V (Can be set individually. Switchable) Input range Current 0 -20 mA Digital conversion value...

  • Page 13: Output Specifications (afp7fca21

    2.1 Analog I/O Cassette and Analog Input Cassette 2.1.2 Output Specifications (AFP7FCA21)  Output specifications Items Description No. of output points 1 channel/cassette Voltage 0 – 10 V, 0 – 5 V (Switchable) Output range Current 0 – 20 mA Digital value K0 - K4000 Resolution...

  • Page 14: Switch Settings

    Specifications 2.1.3 Switch Settings • Set the range selection switches on the cassette before wiring.  Range selection switches (AFP7FCA21) SW No. Name Voltage / Current I/O 10 V 0 to +10 V Output range selection switch (Note) 0 to +5 V 10 V 0 to +10 V CH0 input range selection switch...

  • Page 15: Wiring

    2.1 Analog I/O Cassette and Analog Input Cassette 2.1.4 Wiring  Wiring Diagram Voltage input Current input Analog device Analog device *1: For the current input, short-circuit the V and I terminals. Voltage output Current output Analog device Analog device ...

  • Page 16

    Specifications  Terminal layout (AFP7FCA21) Voltage input Current input Output device Output device ※1 ※1 *1: Connect the V and I terminals for using it as current input.  Terminal layout (AFP7FCAD2) Voltage input Current input *1: Connect the V and I terminals for using it as current input.

  • Page 17: Input Conversion Characteristics (afp7fca21 / Afp7fcad2)

    2.1 Analog I/O Cassette and Analog Input Cassette 2.1.5 Input Conversion Characteristics (AFP7FCA21 / AFP7FCAD2)  0V to 10V DC input Conversion characteristics graph Table of A/D converted values Input voltage (V) Digital value 1600 2400 3200 10.0 4000 When exceeding the rated range Input voltage (V) A/D converted value 0 V or less (Negative value)

  • Page 18: Output Conversion Characteristics (afp7fca21)

    Specifications 2.1.6 Output Conversion Characteristics (AFP7FCA21)  0V to 10V DC output Conversion characteristics graph Table of D/A converted values Digital value Output voltage (V) 1600 2400 3200 4000 10.0 When exceeding the rated range Digital input value Output voltage (V) Negative value (Note) 10.0 4001 or more...

  • Page 19

    2.1 Analog I/O Cassette and Analog Input Cassette  0mA to 20mA output Conversion characteristics graph Table of D/A converted values Digital value Output current (mA) 1000 2000 10.0 3000 15.0 4000 20.0 When exceeding the rated range Digital value Output current (mA) Negative value (Note) 20.0...

  • Page 20: Thermocouple Input Cassette

    Specifications 2.2 Thermocouple Input Cassette 2.2.1 Input Specifications  Input specifications Items Description No. of input points 2 channels (insulated between channels) Input range Thermocouple type K (-50.0 to 500.0 °C), Thermocouple type J (-50.0 to 500.0 °C) In normal condition K –...

  • Page 21: Wiring

    2.2 Thermocouple Input Cassette 2.2.3 Wiring  Precautions on wiring • Keep the space more than 100 mm between the input line and the power line/high-voltage line. • It is recommended to ground the unit using the shielded compensating lead wire. ...

  • Page 22

    Specifications 2-12...

  • Page 23: I/o Allocation And Programs

    I/O Allocation and Programs...

  • Page 24: I/o Allocation

    I/O Allocation and Programs 3.1 I/O Allocation 3.1.1 I/O Allocation • The I/O areas of the CPU unit are allocated to each cassette. • An area of one word (16 points) is allocated to a channel. Input Output Specifications Analog I/O cassette 2-ch Input, 1-ch output Analog input cassette 2-ch input...

  • Page 25: Sample Programs

    3.2 Sample Programs 3.2 Sample Programs 3.2.1 Example of Analog Input/Output • For analog input, digital conversion values are read from the device area (WX) of the input relay. • For analog output, digital conversion values are written into the device area (WY) of the output relay.

  • Page 26

    I/O Allocation and Programs...

  • Page 27

    Record of changes Manual No. Date Record of Changes WUME-FP7FCA-01 MAR.2014 First Edition...
