ENGINE TROUBLESHOOTING

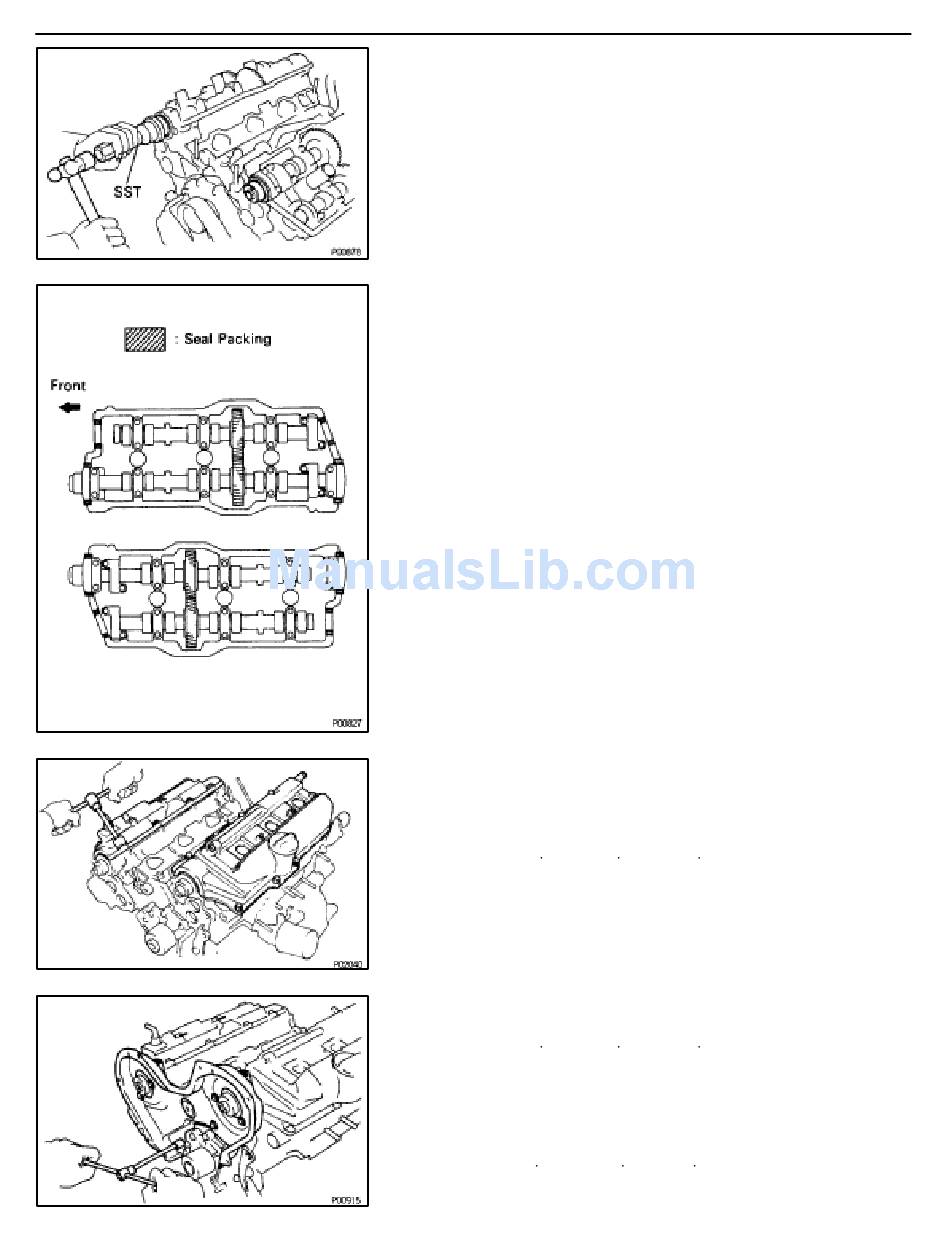

(b) Using SST, tap in the oil seals.
SST 09223–46011
8.

INSTALL CYLINDER HEAD COVERS

(a) Apply seal packing to the cylinder heads as shown in the
illustration.
Seal packing:
(b) Install the gasket to the cylinder head cover.
(c) Install the cylinder head cover with the eight seal washers
and nuts. Uniformly tighten the nuts in several passes. Install
the two cylinder head covers.
Torque: 5.9 N m (60 kgf cm, 52 in. lbf)
9.

INSTALL NO.3 TIMING BELT COVER

Install the timing belt cover with the six bolts.
Torque: 7.4 N m (75 kgf cm, 65 in. lbf)
10. INSTALL NO.2 IDLER PULLEY, CAMSHAFT TIMING
PULLEYS AND TIMING BELT
(See page EG–29)
11. INSTALL SPARK PLUGS
Torque: 18 N m (180 kgf cm, 13 ft lbf)
– ENGINE MECHANICAL
Part No.08826–00080 or equivalent
EG–79
