EG–434

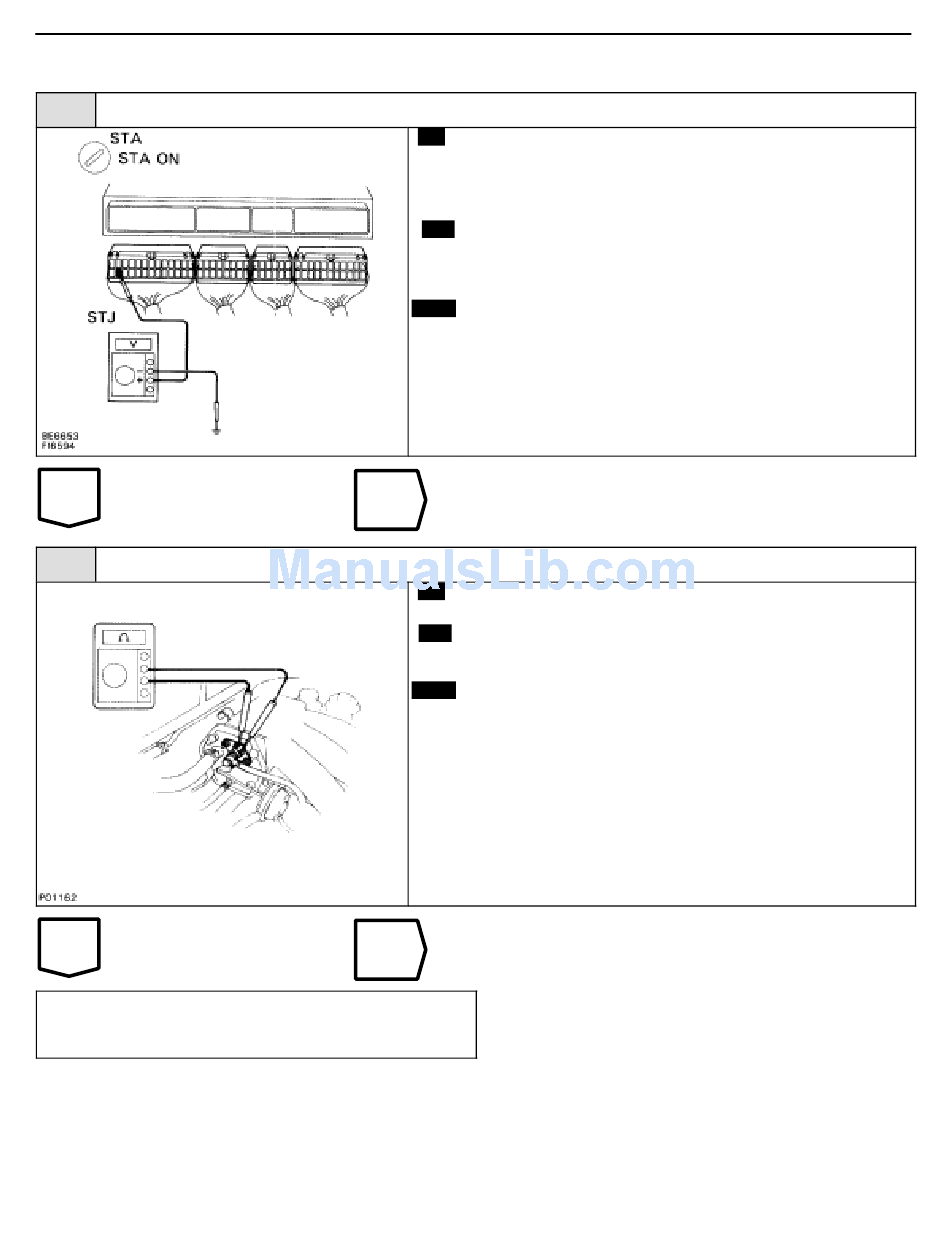

INSPECTION PROCEDURE
1
Check voltage between terminal STJ of ECM connector and body ground.
NG
2
Check resistance of cold start injector.
OK
Check and repair harness and connector between
ECM and cold start injector, cold start injector and
battery.
ENGINE TROUBLESHOOTING
P
OK
OK
P
OK
NG
– CIRCUIT INSPECTION
1. Remove glove compartment. (See page BO–111).
2. Disconnect start injector time switch connector.
3. Disconnect ECM connector.
Measure voltage between terminal STJ of ECM connec-
C
tor and body ground when ignition switch is turned to
STA.
Voltage: 10 – 14 V
Go to step

Disconnect cold start injector connector.
Measure resistance between terminals of cold start in-
C
jector.
Resistance: 2 – 4 W at 20C (68F)
Replace cold start injector.
