Air Conditioning Cut Control Circuit
CIRCUIT DESCRIPTION
This circuit cuts air conditioning operation during vehicle acceleration in order to increase acceleration perfor-
mance. During acceleration with the vehicle speed at 25 km/h (16 mph) or less, engine speed at 1,600 rpm or
less and throttle valve opening angle at 60 or more, the A/C magnet switch is turned OFF for several seconds.

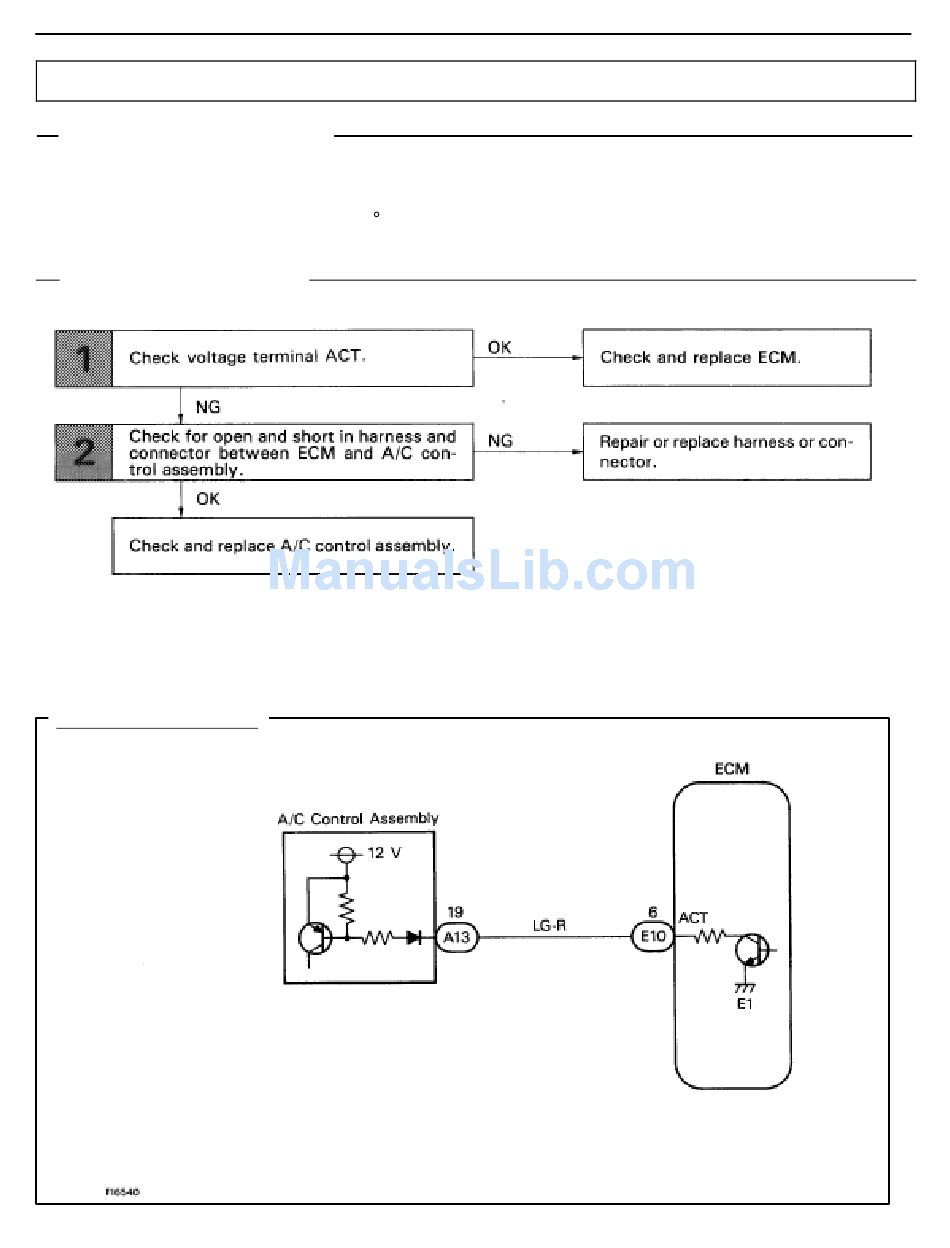

DIAGNOSTIC CHART
DIAGNOSTIC CHART
WIRING DIAGRAM
ENGINE TROUBLESHOOTING
–
CIRCUIT INSPECTION
