4
Cooling Solutions
congatec AG offers three cooling solutions for the conga-TR3:
• Active cooling solution (CSA)
• Passive cooling solution (CSP)
• Heatspreader
The dimensions of the cooling solutions are shown below and all measurements are in millimeters. The maximum torque specification for
heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/ISO specifications..

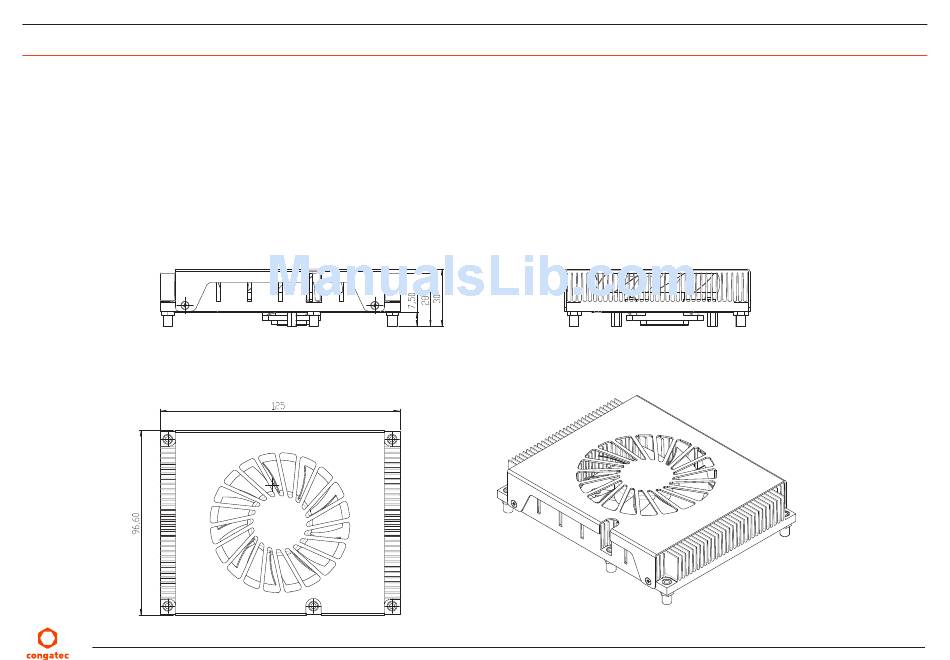

4.1
CSA Dimensions
Copyright © 2016 congatec AG
TR33m10
20/105
