4
Cooling Solutions
congatec AG offers two cooling solutions for the conga-TC175:
• Passive cooling solution (CSP)
• Heatspreader
The dimensions of the cooling solutions are shown below and all measurements are in millimeters. The mechanical system assembly mounting
shall follow the valid DIN/ISO specifications.
The maximum torque specification for all screws is 0.3 Nm. Higher torque may damage the module and/or carrier board.
4.1

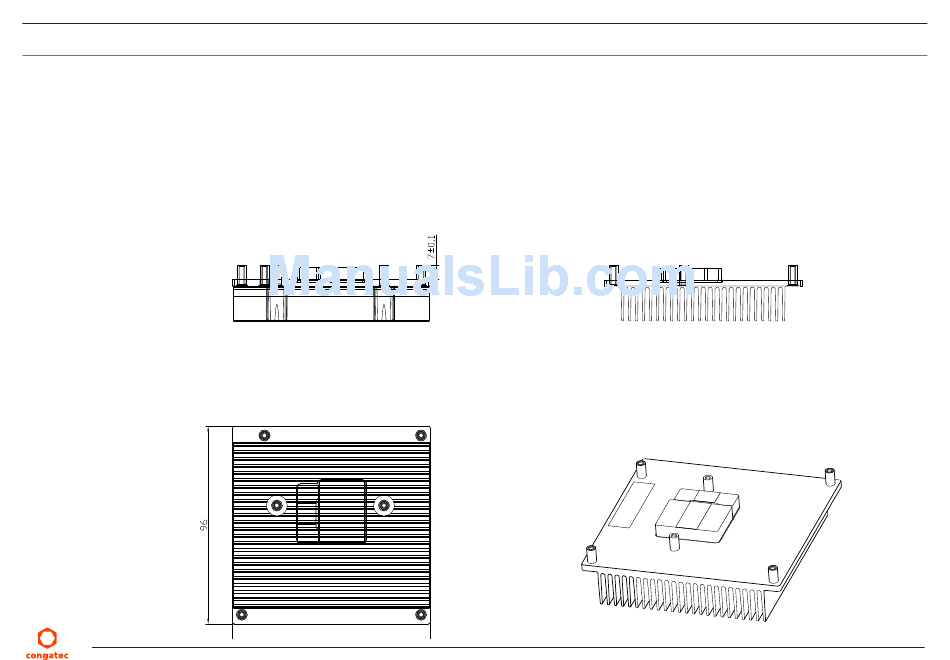

CSP Dimensions
Copyright © 2017 congatec AG
TCKLm10
19/71
