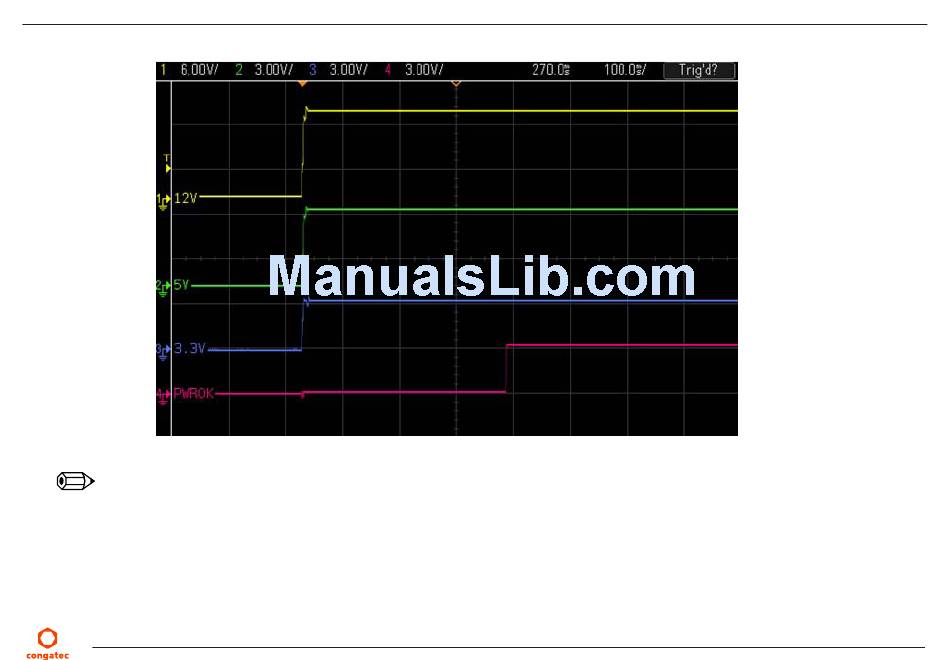

A sample screenshot is shown below:
Note
The module is kept in reset as long as the PWR_OK is driven by carrier board hardware.
The three typical usage scenarios for a carrier board design are:
• Connect PWR_OK to the "power good" signal of an ATX type power supply.
• Connect PWR_OK to the last voltage regulator in the chain on the carrier board.
• Simply pull PWR_OK with a 1k resistor to the carrier board 3.3V power rail.
