780C Multi-Interface Interoperability Tester – User Guide

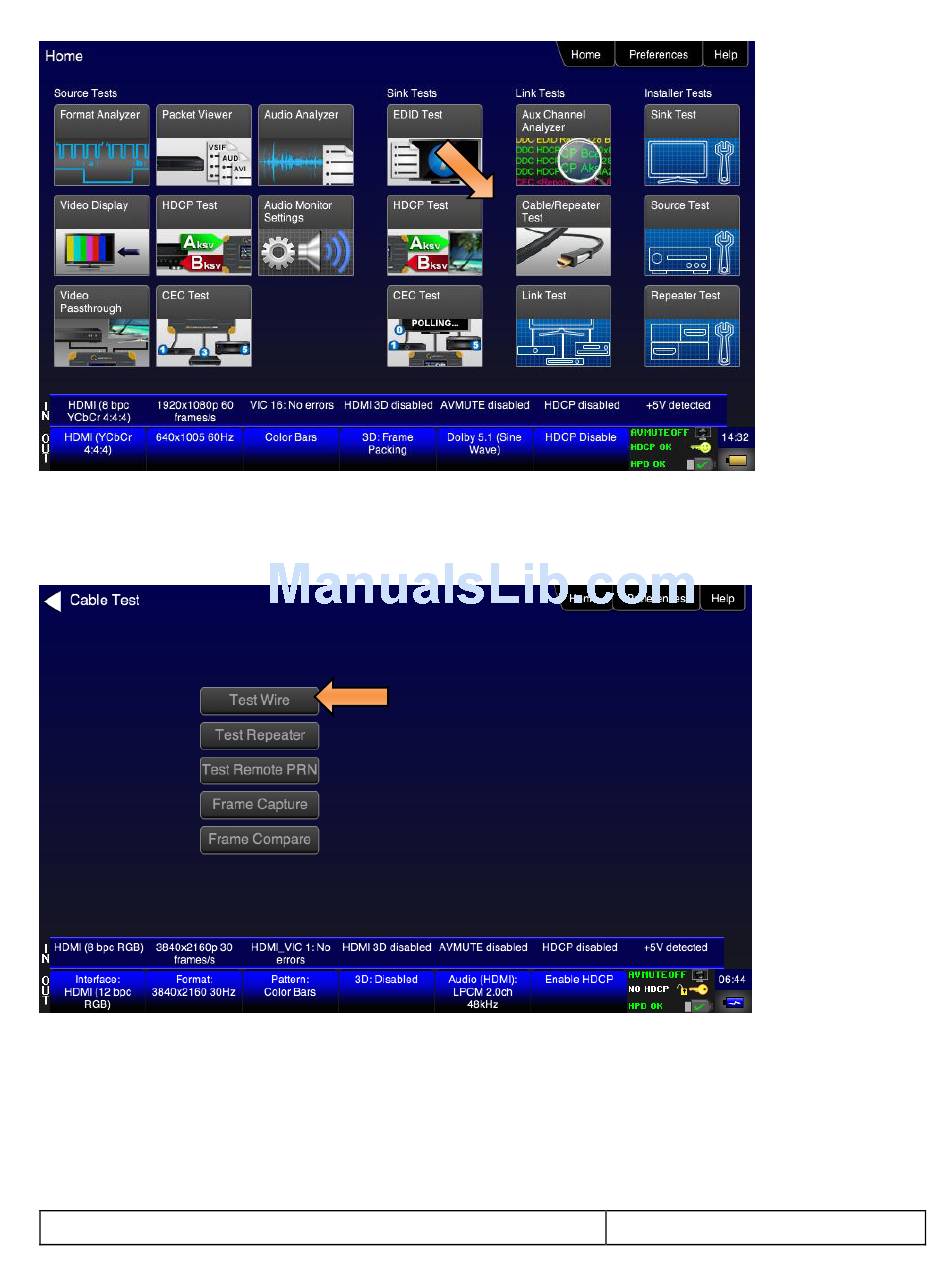

3. For testing an HDMI cable touch select Test Wire to initiate the test.
The pixel errors are displayed for each timing on the screen as shown below. The +5V, Hot Plug and DDC
test results are shown as Pass/Fail.
For testing an HDMI repeater device touch select Test Repeater to initiate the test.
September 29, 2014
Page 174
Revision A1
