780C Multi-Interface Interoperability Tester – User Guide
7.1.2

Connection Configurations for Testing HDBaseT Source Devices

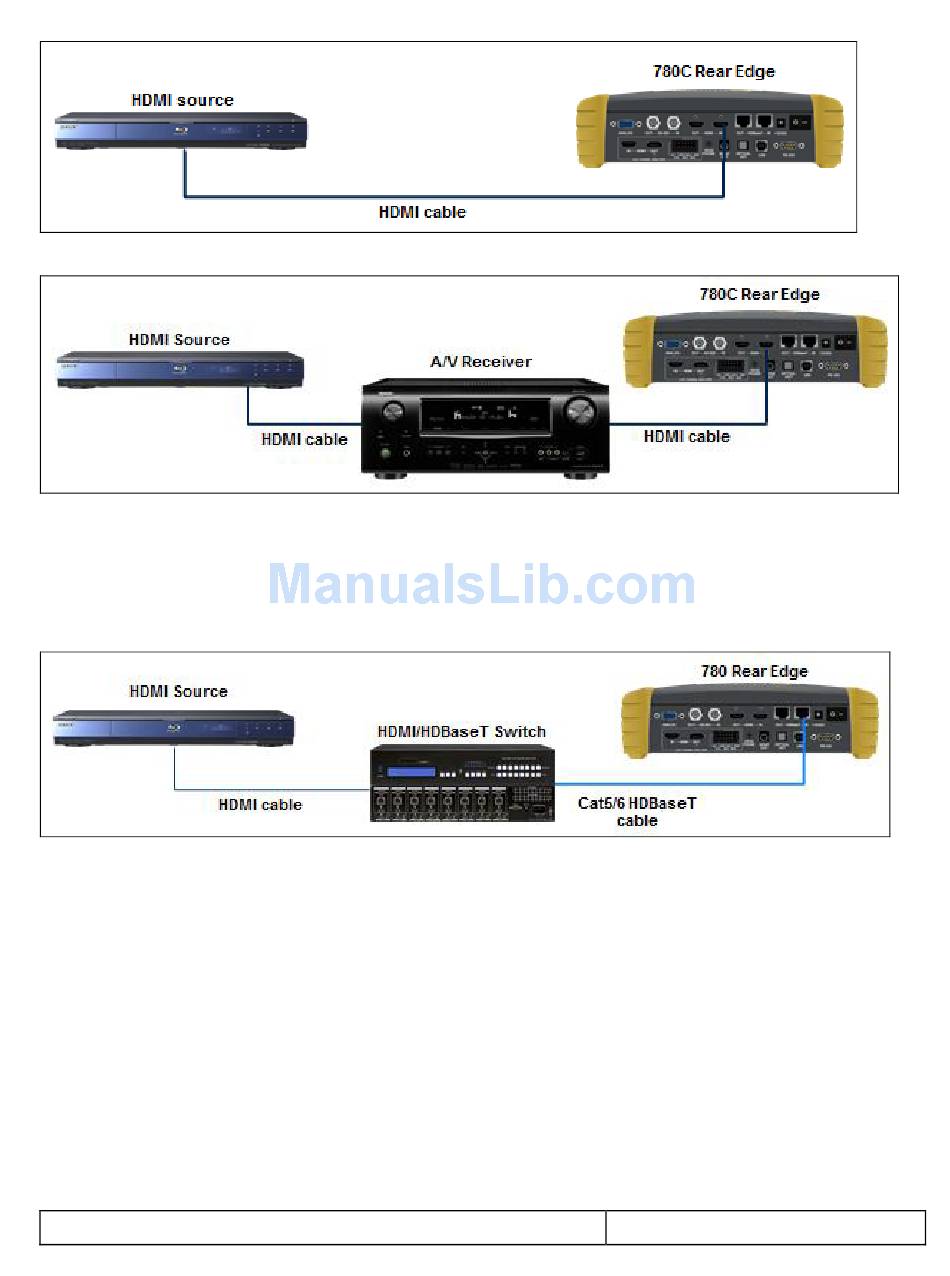

The 780C's HDBaseT input port acts as a "reference" HDBaseT sink device. Therefore it enables you to
emulate a known good HDBaseT sink device to conduct diagnostics upstream toward the source device. The
following illustrations show the typical configurations.
7.1.3

Procedures for Testing Upstream (Source Test) with the Installer Utility

Use the following procedures to test the video from an HDMI source device directly at the HDMI source or
through an HDMI repeater device or HDBaseT distribution device. You can view the incoming video and check
the video and timing parameters of the incoming video.
1. Make the physical connection between the 780C HDMI IN or HDBaseT IN port and the upstream device
under test using the configuration instructions above or by following the instructions on the screen.
2. Enable the HDMI or HDBaseT as the active digital interface input.
