780C Multi-Interface Interoperability Tester – User Guide

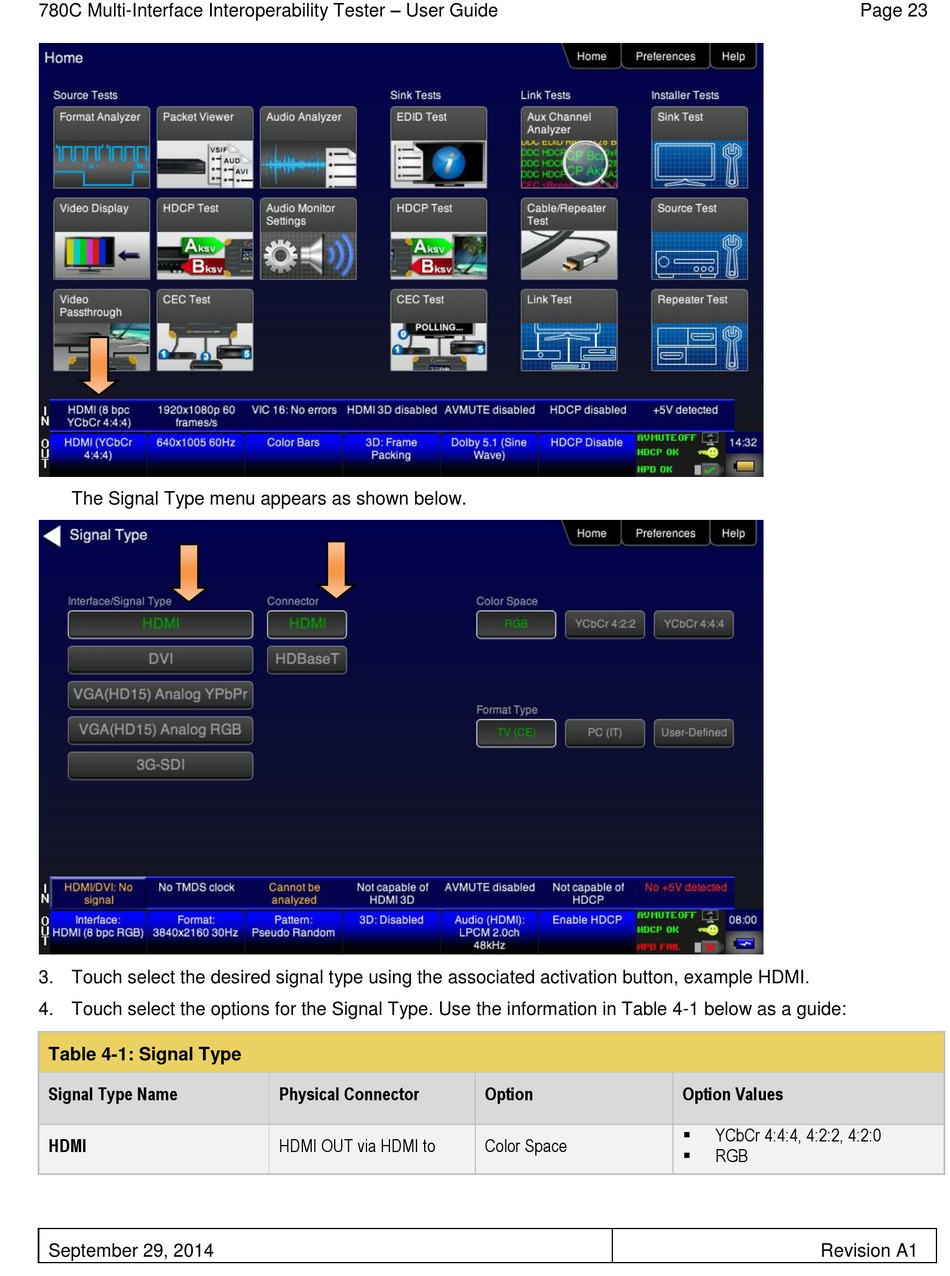

The Signal Type menu appears as shown below.
3. Touch select the desired signal type using the associated activation button, example HDMI.
4. Touch select the options for the Signal Type. Use the information in Table 4-1 below as a guide:
Table 4-1: Signal Type
Signal Type Name
HDMI
September 29, 2014
Physical Connector
HDMI OUT via HDMI to
Option
Color Space
Page 23
Option Values
YCbCr 4:4:4, 4:2:2, 4:2:0

 RGB
Revision A1
