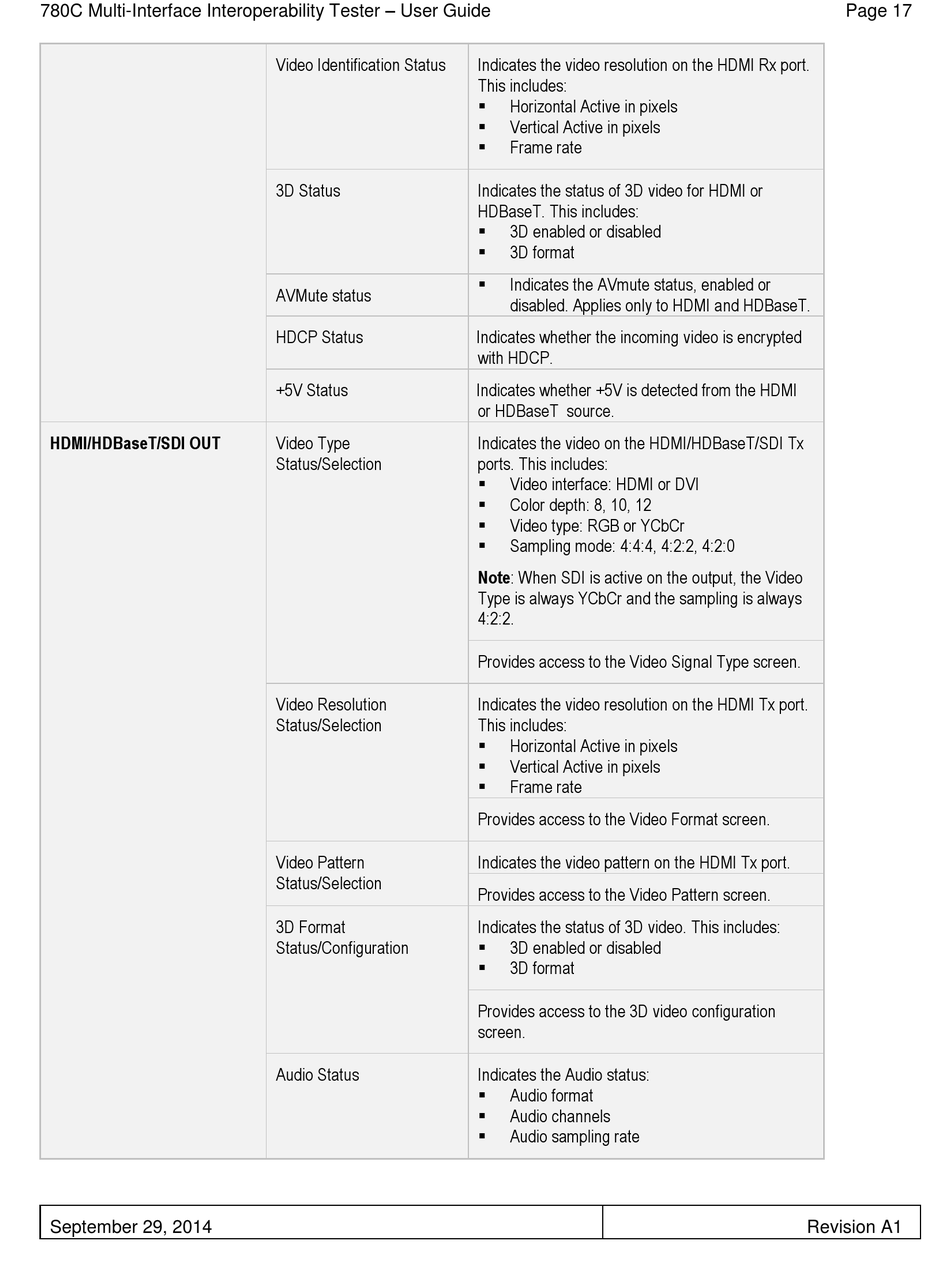

Quantum Data 780C User Manual page 18

780C Multi-Interface Interoperability Tester – User Guide
HDMI/HDBaseT/SDI OUT
September 29, 2014
Video Identification Status
3D Status
AVMute status
HDCP Status
+5V Status
Video Type
Status/Selection
Video Resolution
Status/Selection
Video Pattern
Status/Selection
3D Format
Status/Configuration
Audio Status
Indicates the video resolution on the HDMI Rx port.
This includes:
Horizontal Active in pixels

Vertical Active in pixels

Frame rate

Indicates the status of 3D video for HDMI or
HDBaseT. This includes:
 3D enabled or disabled
3D format

 Indicates the AVmute status, enabled or
disabled. Applies only to HDMI and HDBaseT.
Indicates whether the incoming video is encrypted
with HDCP.
Indicates whether +5V is detected from the HDMI
or HDBaseT source.
Indicates the video on the HDMI/HDBaseT/SDI Tx
ports. This includes:
 Video interface: HDMI or DVI
Color depth: 8, 10, 12

Video type: RGB or YCbCr

 Sampling mode: 4:4:4, 4:2:2, 4:2:0
Note: When SDI is active on the output, the Video
Type is always YCbCr and the sampling is always
4:2:2.
Provides access to the Video Signal Type screen.
Indicates the video resolution on the HDMI Tx port.
This includes:
 Horizontal Active in pixels
 Vertical Active in pixels
Frame rate

Provides access to the Video Format screen.
Indicates the video pattern on the HDMI Tx port.
Provides access to the Video Pattern screen.
Indicates the status of 3D video. This includes:
 3D enabled or disabled
3D format

Provides access to the 3D video configuration
screen.
Indicates the Audio status:
Audio format

Audio channels

 Audio sampling rate
Page 17
Revision A1
