780C Multi-Interface Interoperability Tester – User Guide

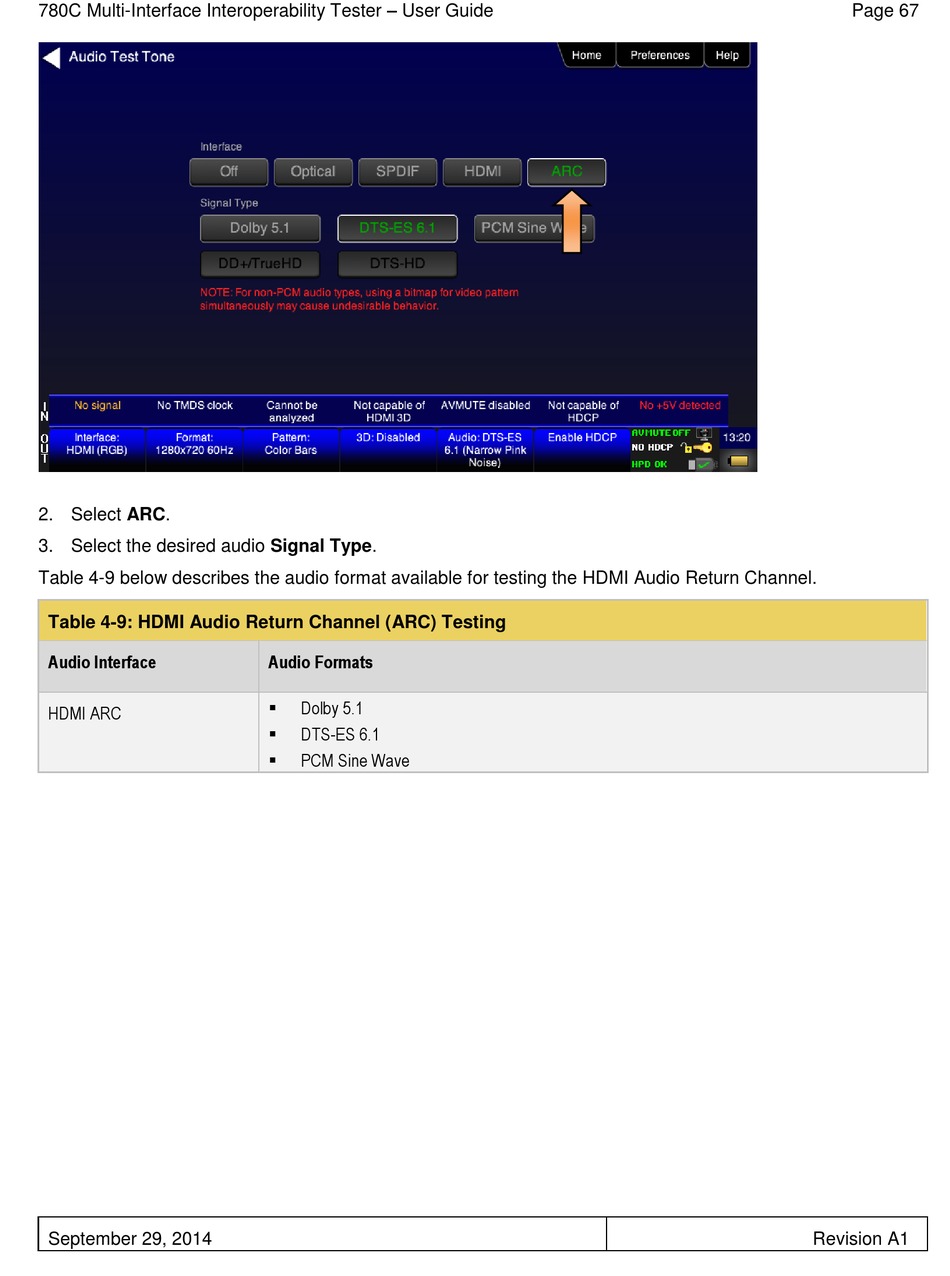

2. Select ARC.
3. Select the desired audio Signal Type.
Table 4-9 below describes the audio format available for testing the HDMI Audio Return Channel.
Table 4-9: HDMI Audio Return Channel (ARC) Testing
Audio Interface
HDMI ARC
September 29, 2014
Audio Formats
Dolby 5.1

DTS-ES 6.1

PCM Sine Wave

Page 67
Revision A1
