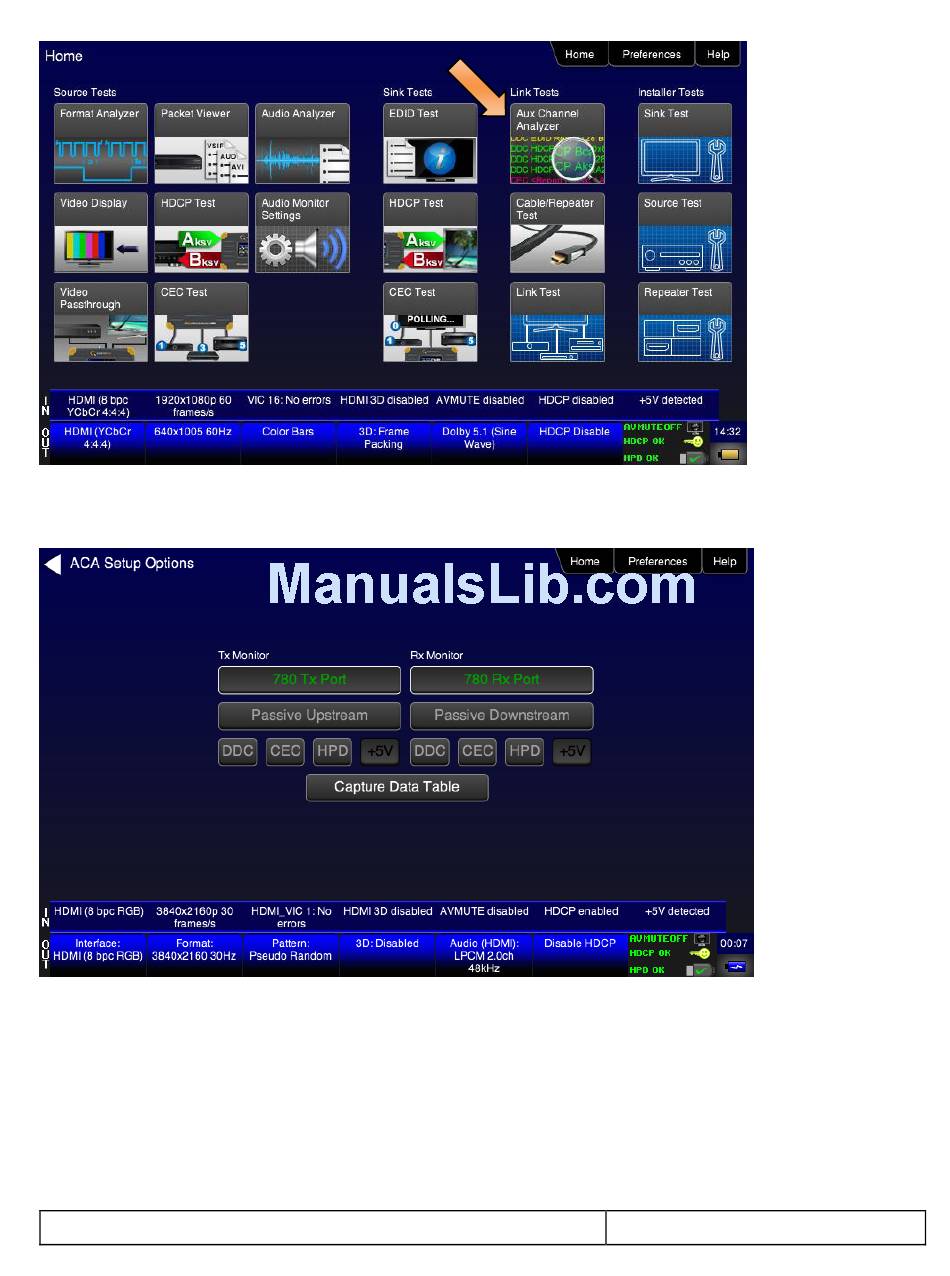

The ACA Setup Options screen appears:
4. Determine what data types you wish to monitor. Typically you will want to monitor the DDC and hot plug
(+5V is only available for monitoring with the passive monitoring option). Select the data types that you
wish to monitor.
Note: By default the two activation buttons labeled 780C Tx Port and 780C Rx Port are enabled. You
cannot disable them. Transactions will be shown based on which ports (HDMI OUT and/or HDMI IN) are
connected to HDMI devices and which transaction types (i.e. DDC and HPD) you have enabled.
