4. Select Frame Compare to compare a series of frames to the reference frame.

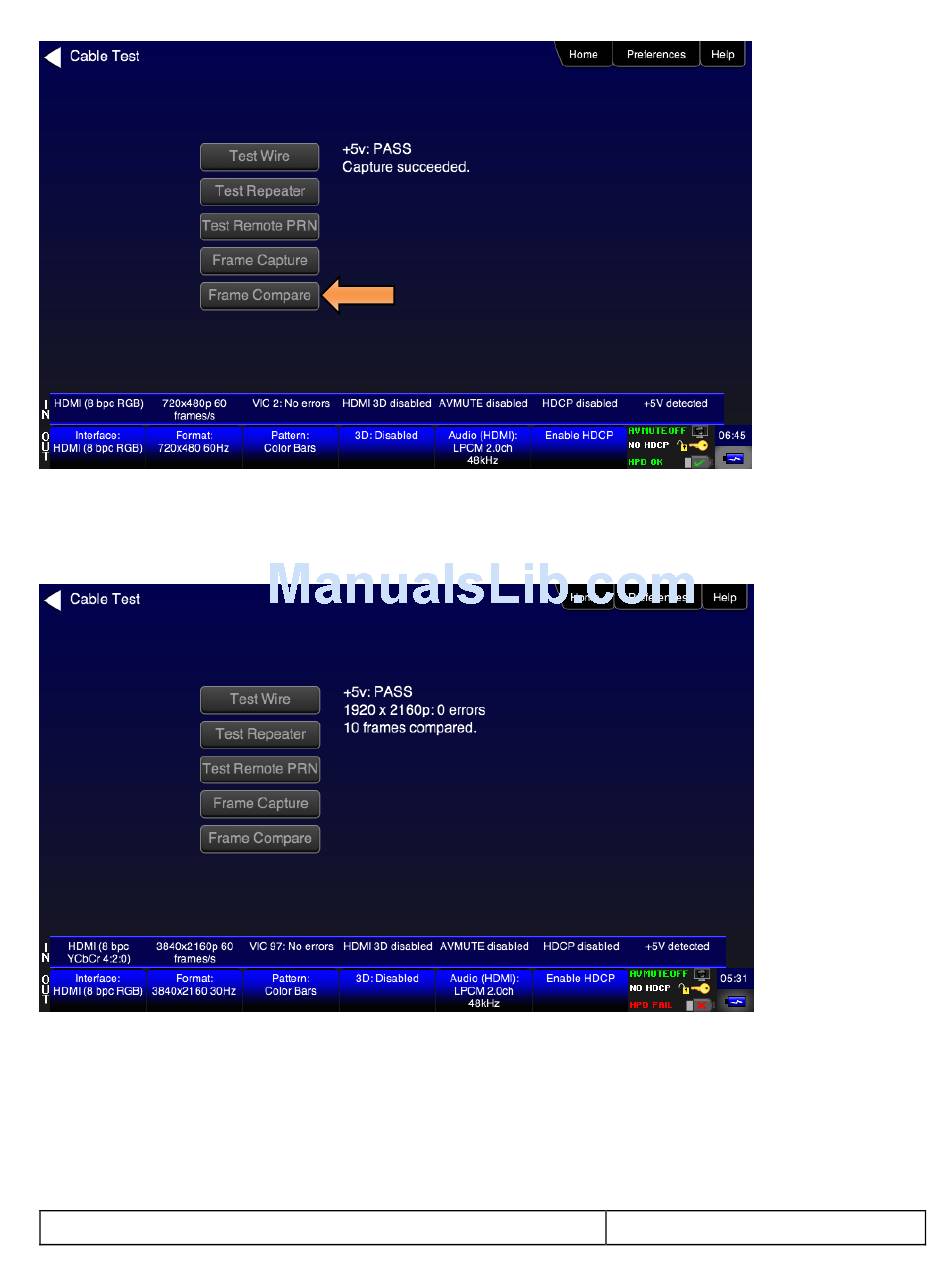

The following screen example shows the results of the Frame Compare test. Note that the incoming
resolution is shown with the number of pixel errors detected.
9.2.3

Procedures for Running the Remote PRN Test

This subsection provides procedures for performing an HDMI Remote PRN test on an HDMI network
comprised of repeaters, splitters, extenders, switches, etc. This test differs in that there is a 780 at both ends of
the network—source and sink ends.
1. Follow the procedures above for rendering a Test Pattern on an HDMI HDTV Rendering Test Patterns on
an HDMI HDTV.
