780C Multi-Interface Interoperability Tester – User Guide

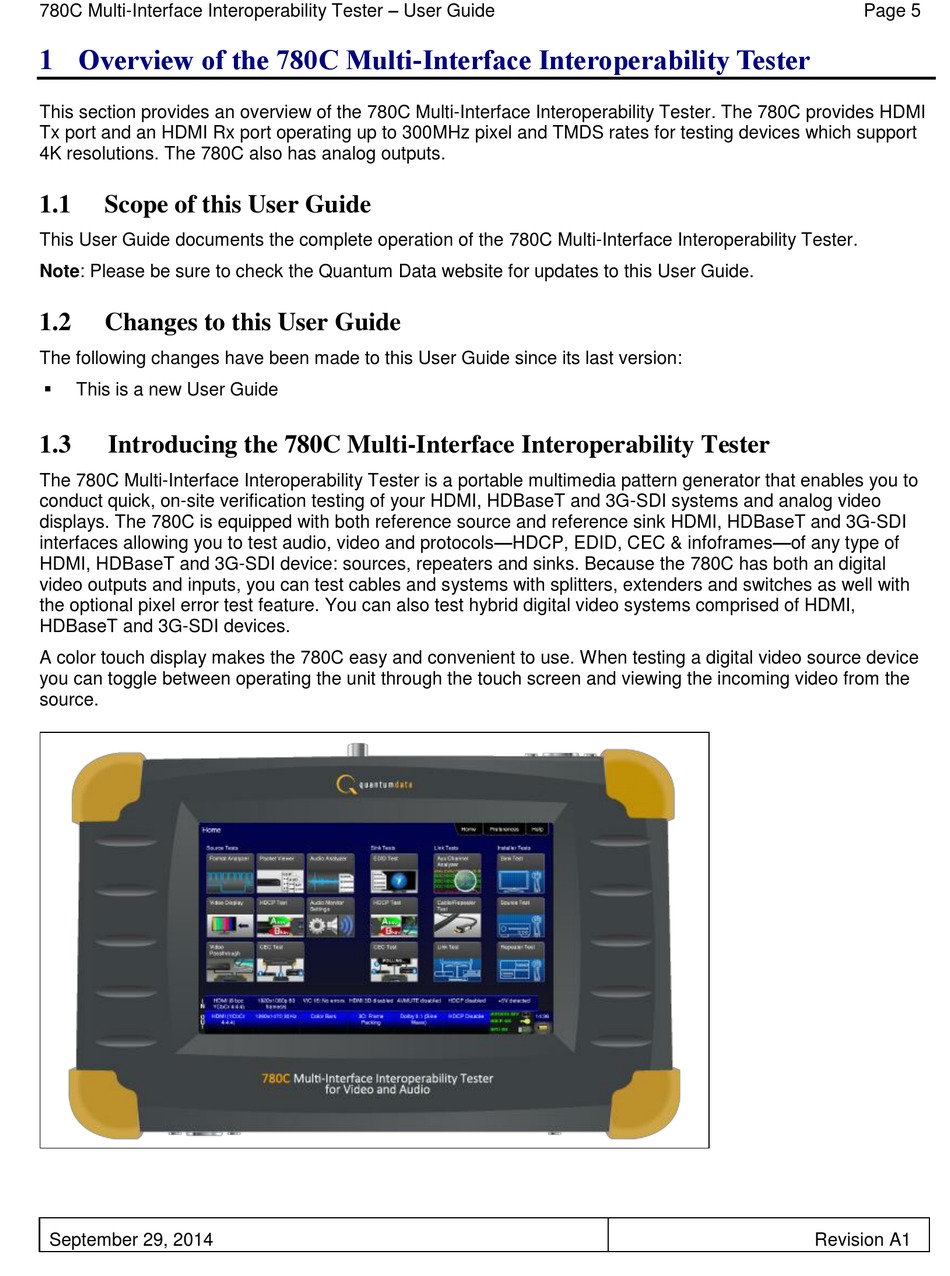

1 Overview of the 780C Multi-Interface Interoperability Tester

This section provides an overview of the 780C Multi-Interface Interoperability Tester. The 780C provides HDMI
Tx port and an HDMI Rx port operating up to 300MHz pixel and TMDS rates for testing devices which support
4K resolutions. The 780C also has analog outputs.
1.1

Scope of this User Guide

This User Guide documents the complete operation of the 780C Multi-Interface Interoperability Tester.
Note: Please be sure to check the Quantum Data website for updates to this User Guide.
1.2

Changes to this User Guide

The following changes have been made to this User Guide since its last version:

This is a new User Guide
1.3

Introducing the 780C Multi-Interface Interoperability Tester

The 780C Multi-Interface Interoperability Tester is a portable multimedia pattern generator that enables you to
conduct quick, on-site verification testing of your HDMI, HDBaseT and 3G-SDI systems and analog video
displays. The 780C is equipped with both reference source and reference sink HDMI, HDBaseT and 3G-SDI
interfaces allowing you to test audio, video and protocols—HDCP, EDID, CEC & infoframes—of any type of
HDMI, HDBaseT and 3G-SDI device: sources, repeaters and sinks. Because the 780C has both an digital
video outputs and inputs, you can test cables and systems with splitters, extenders and switches as well with
the optional pixel error test feature. You can also test hybrid digital video systems comprised of HDMI,
HDBaseT and 3G-SDI devices.
A color touch display makes the 780C easy and convenient to use. When testing a digital video source device
you can toggle between operating the unit through the touch screen and viewing the incoming video from the
source.
