Viewing The Auto-Edid Test Report - Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide

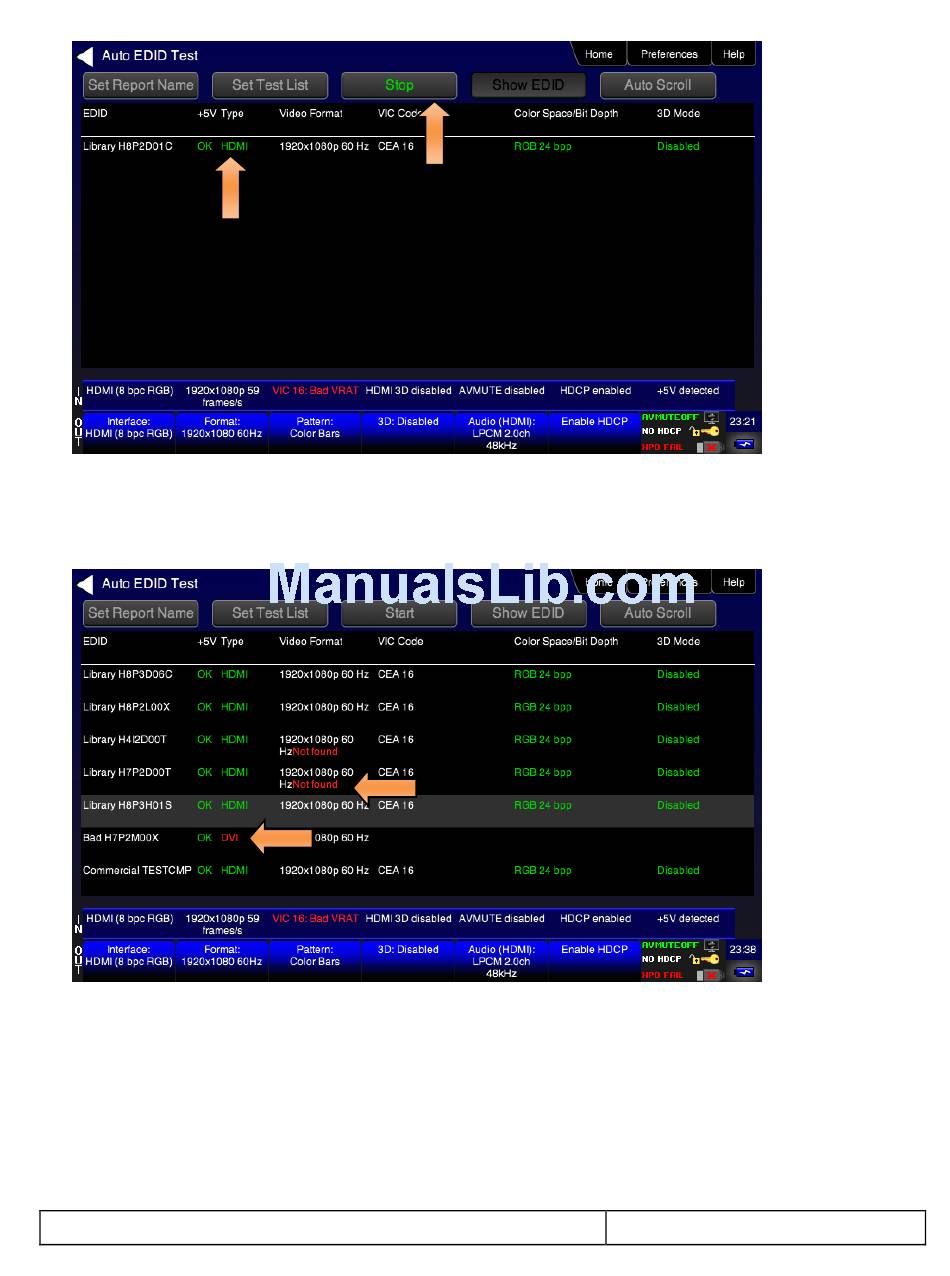

The test will begin executing and you will see the results one by one as each EDID it tested. The following
screen shows another example. Note that you can stop the test anytime by touch selecting the Stop
activation/toggle button (indicated above).
The following screen shows an example of a completed report:
Notes on the example above:
Red text in the example above, indicates anomalous conditions in the handling of an EDID.
Examples show:
1. Incoming video timing resolution is not present in EDID (2 cases).
2. EDID with bad checksum where incoming video is interpreted as DVI (since there are no infoframes).

10.1.4 Viewing the Auto-EDID Test report.

This subsection discusses viewing of the AutoEDID test text report. The test report is a text file stored on the
SDCard that you inserted in the SDCard slot. You will need an SDCard reader or an SDCard slot on your PC to
