780C Multi-Interface Interoperability Tester – User Guide

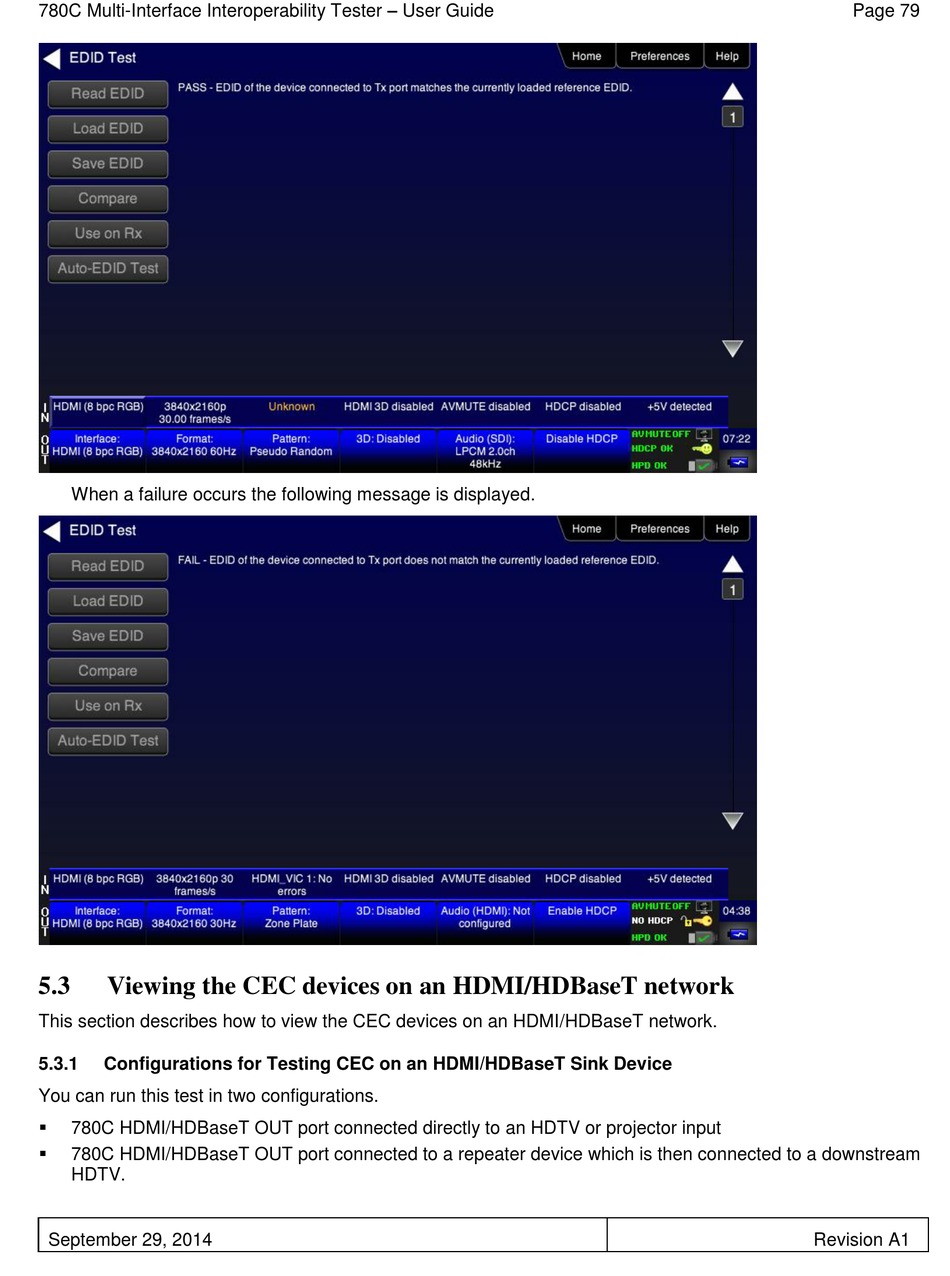

When a failure occurs the following message is displayed.
5.3

Viewing the CEC devices on an HDMI/HDBaseT network

This section describes how to view the CEC devices on an HDMI/HDBaseT network.
5.3.1

Configurations for Testing CEC on an HDMI/HDBaseT Sink Device

You can run this test in two configurations.

780C HDMI/HDBaseT OUT port connected directly to an HDTV or projector input

780C HDMI/HDBaseT OUT port connected to a repeater device which is then connected to a downstream
HDTV.
September 29, 2014
Page 79
Revision A1
