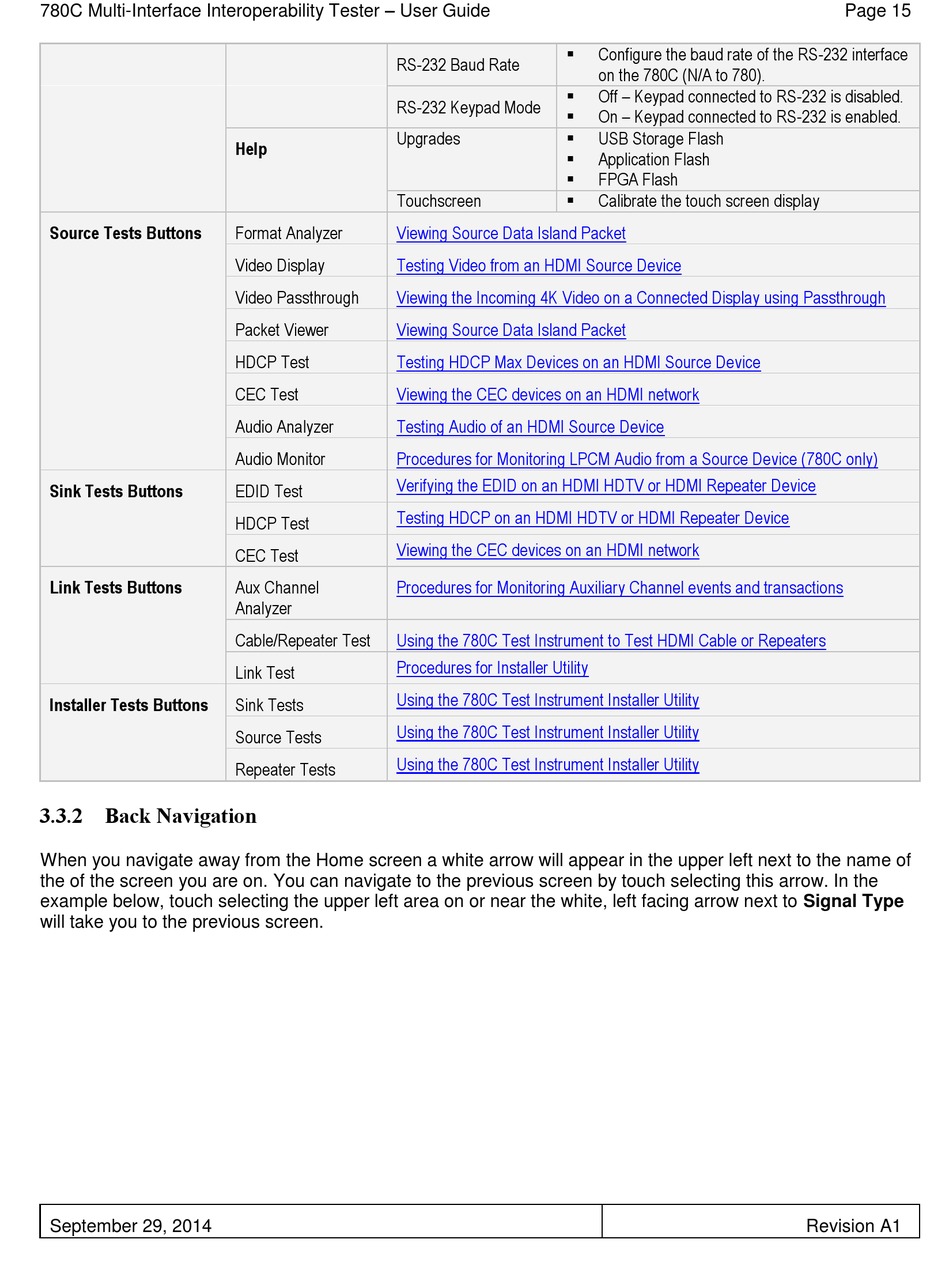

780C Multi-Interface Interoperability Tester – User Guide
Source Tests Buttons
Sink Tests Buttons
Link Tests Buttons
Installer Tests Buttons

3.3.2 Back Navigation

When you navigate away from the Home screen a white arrow will appear in the upper left next to the name of
the of the screen you are on. You can navigate to the previous screen by touch selecting this arrow. In the
example below, touch selecting the upper left area on or near the white, left facing arrow next to Signal Type
will take you to the previous screen.
September 29, 2014
RS-232 Baud Rate
RS-232 Keypad Mode
Upgrades
Help
Touchscreen
Format Analyzer Viewing Source Data Island Packet
Video Display Testing Video from an HDMI Source Device
Video Passthrough Viewing the Incoming 4K Video on a Connected Display using Passthrough
Packet Viewer Viewing Source Data Island Packet
HDCP Test Testing HDCP Max Devices on an HDMI Source Device
CEC Test Viewing the CEC devices on an HDMI network
Audio Analyzer Testing Audio of an HDMI Source Device
Audio Monitor Procedures for Monitoring LPCM Audio from a Source Device (780C only)
Verifying the EDID on an HDMI HDTV or HDMI Repeater Device
EDID Test
Testing HDCP on an HDMI HDTV or HDMI Repeater Device
HDCP Test
Viewing the CEC devices on an HDMI network
CEC Test
Aux Channel Procedures for Monitoring Auxiliary Channel events and transactions
Analyzer
Cable/Repeater Test Using the 780C Test Instrument to Test HDMI Cable or Repeaters
Procedures for Installer Utility
Link Test
Using the 780C Test Instrument Installer Utility
Sink Tests
Using the 780C Test Instrument Installer Utility
Source Tests
Using the 780C Test Instrument Installer Utility
Repeater Tests
Configure the baud rate of the RS-232 interface

on the 780C (N/A to 780).
 Off – Keypad connected to RS-232 is disabled.
On – Keypad connected to RS-232 is enabled.

USB Storage Flash

 Application Flash
FPGA Flash

Calibrate the touch screen display

Page 15
Revision A1
