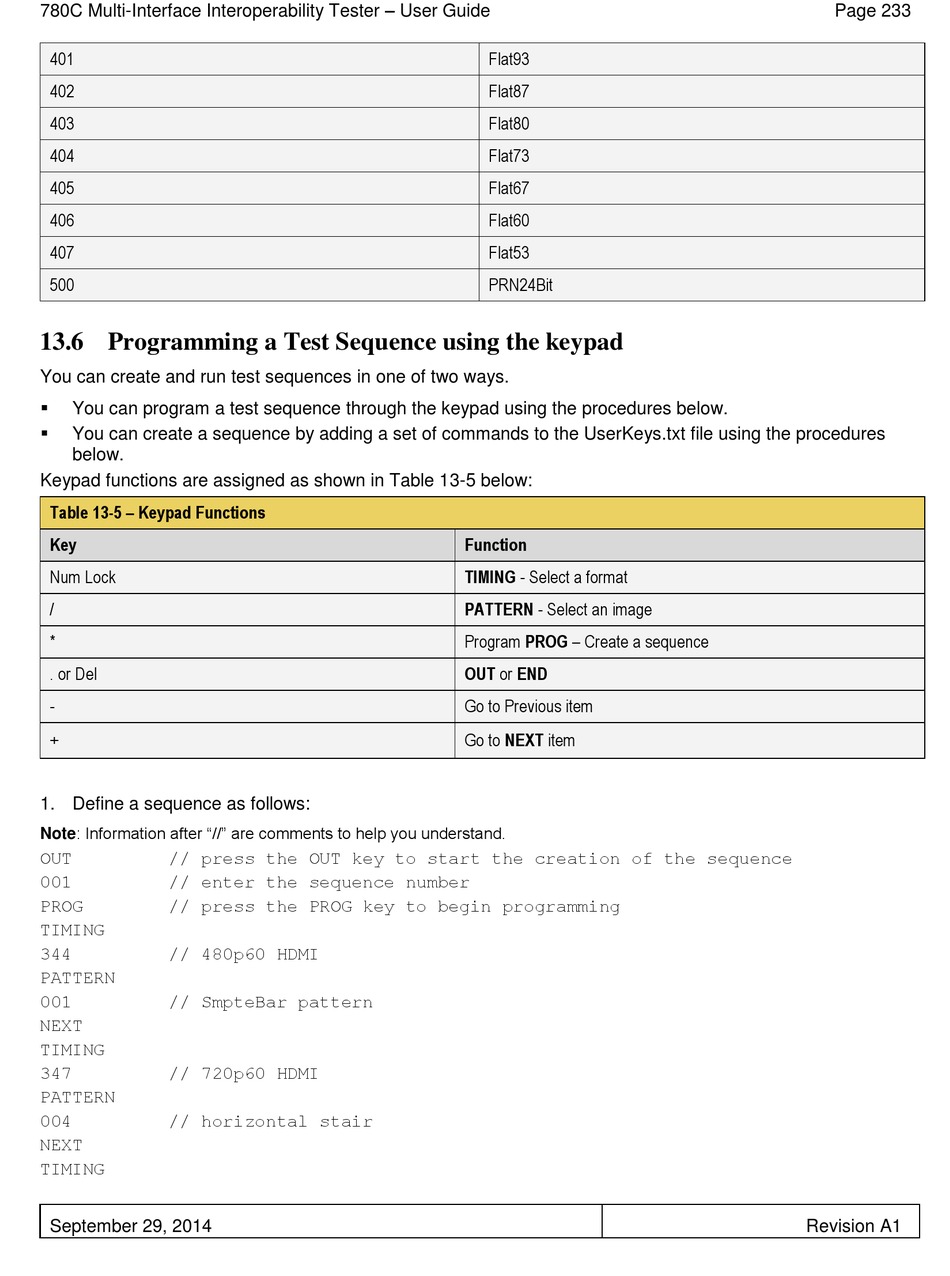

13.6 Programming a Test Sequence using the keypad

You can create and run test sequences in one of two ways.

You can program a test sequence through the keypad using the procedures below.

You can create a sequence by adding a set of commands to the UserKeys.txt file using the procedures
below.
Keypad functions are assigned as shown in Table 13-5 below:
Table 13-5 – Keypad Functions
Key
Num Lock
/
*
. or Del
-
+
1. Define a sequence as follows:
Note: Information after "//" are comments to help you understand.
OUT // press the OUT key to start the creation of the sequence
001 // enter the sequence number
PROG // press the PROG key to begin programming
TIMING
344 // 480p60 HDMI
PATTERN
001 // SmpteBar pattern
NEXT
TIMING
347 // 720p60 HDMI
PATTERN
004 // horizontal stair
NEXT
TIMING
September 29, 2014
Flat93
Flat87
Flat80
Flat73
Flat67
Flat60
Flat53
PRN24Bit
Function
TIMING - Select a format
PATTERN - Select an image
Program PROG – Create a sequence
OUT or END
Go to Previous item
Go to NEXT item
