780C Multi-Interface Interoperability Tester – User Guide

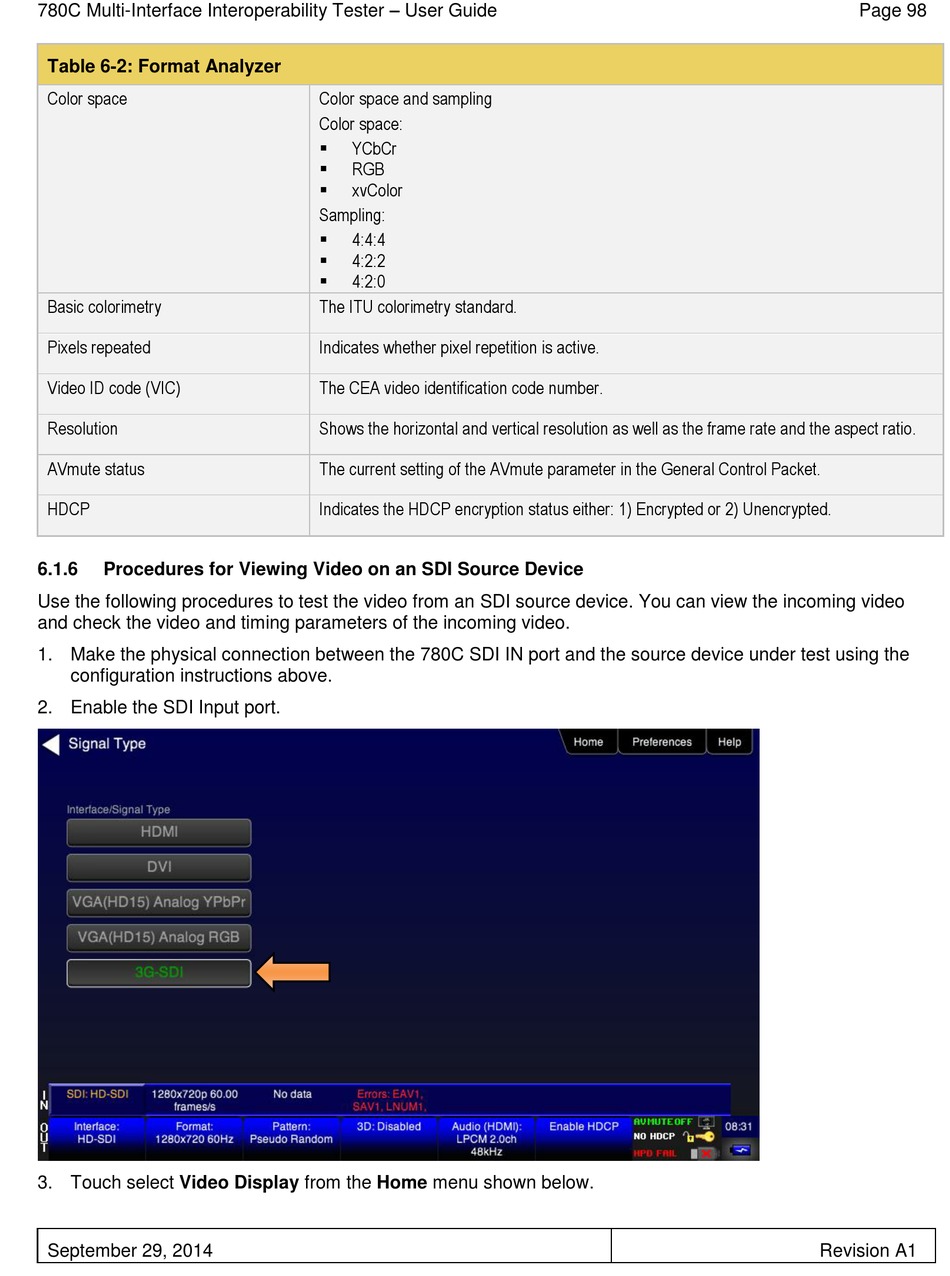

Table 6-2: Format Analyzer
Color space
Basic colorimetry
Pixels repeated
Video ID code (VIC)
Resolution
AVmute status
HDCP
6.1.6

Procedures for Viewing Video on an SDI Source Device

Use the following procedures to test the video from an SDI source device. You can view the incoming video
and check the video and timing parameters of the incoming video.
1. Make the physical connection between the 780C SDI IN port and the source device under test using the
configuration instructions above.
2. Enable the SDI Input port.
3. Touch select Video Display from the Home menu shown below.
September 29, 2014
Color space and sampling
Color space:
YCbCr

RGB

 xvColor
Sampling:
4:4:4

4:2:2

4:2:0

The ITU colorimetry standard.
Indicates whether pixel repetition is active.
The CEA video identification code number.
Shows the horizontal and vertical resolution as well as the frame rate and the aspect ratio.
The current setting of the AVmute parameter in the General Control Packet.
Indicates the HDCP encryption status either: 1) Encrypted or 2) Unencrypted.
Page 98
Revision A1
