780C Multi-Interface Interoperability Tester – User Guide

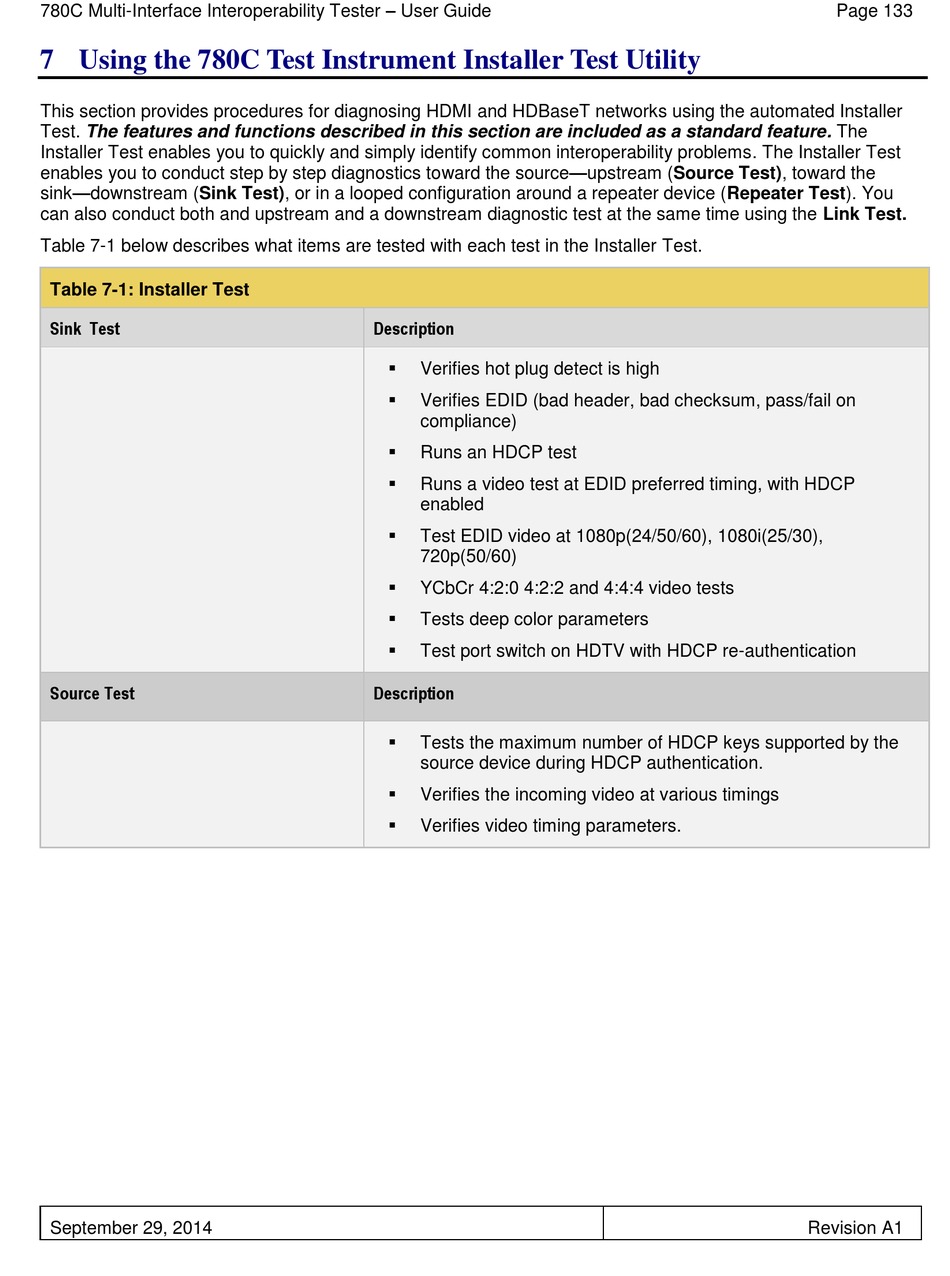

7 Using the 780C Test Instrument Installer Test Utility

This section provides procedures for diagnosing HDMI and HDBaseT networks using the automated Installer
Test. The features and functions described in this section are included as a standard feature. The
Installer Test enables you to quickly and simply identify common interoperability problems. The Installer Test
enables you to conduct step by step diagnostics toward the source—upstream (Source Test), toward the
sink—downstream (Sink Test), or in a looped configuration around a repeater device (Repeater Test). You
can also conduct both and upstream and a downstream diagnostic test at the same time using the Link Test.
Table 7-1 below describes what items are tested with each test in the Installer Test.
Table 7-1: Installer Test
Sink Test
Source Test
September 29, 2014
Description

Verifies hot plug detect is high

Verifies EDID (bad header, bad checksum, pass/fail on
compliance)

Runs an HDCP test

Runs a video test at EDID preferred timing, with HDCP
enabled

Test EDID video at 1080p(24/50/60), 1080i(25/30),
720p(50/60)

YCbCr 4:2:0 4:2:2 and 4:4:4 video tests

Tests deep color parameters

Test port switch on HDTV with HDCP re-authentication
Description

Tests the maximum number of HDCP keys supported by the
source device during HDCP authentication.

Verifies the incoming video at various timings

Verifies video timing parameters.
