780C Multi-Interface Interoperability Tester – User Guide
3 General Operation
This section describes power up, power usage and general operation.
3.1
Power Considerations

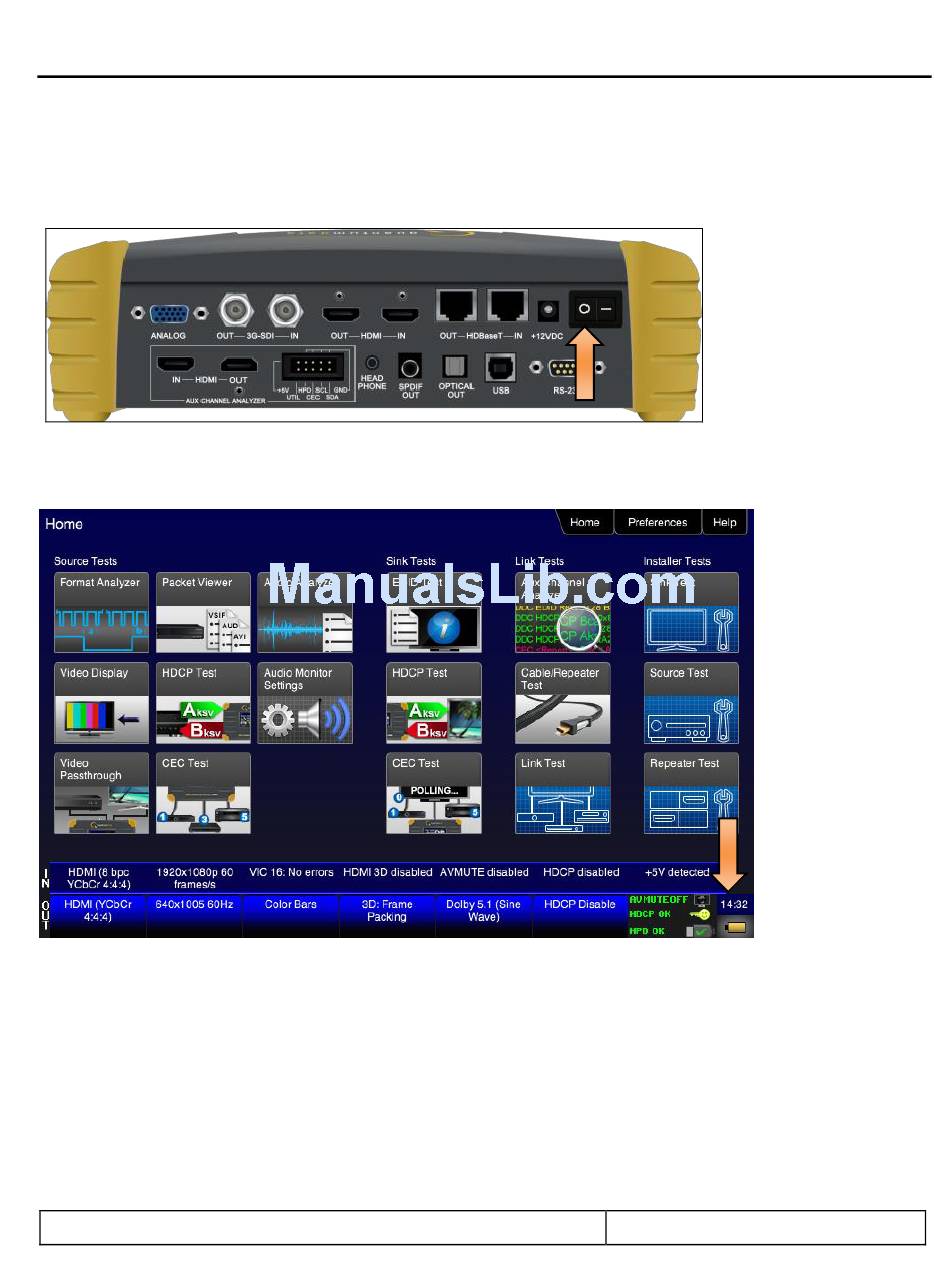

The 780C has a rocker style power switch on the back panel. Refer to the photo below.
The 780C is supplied with the Part No 25-00106 12V DC power supply adapter as well as a part number
30A00400A03 line cord.
3.2
Tilt Bail
The 780C has support bail for convenience in viewing. This is depicted in the illustration below. (The illustration
shows the 780; however, the 780C tilt bail operates in the same manner.)
September 29, 2014
Page 12
Revision A1
