780C Multi-Interface Interoperability Tester – User Guide

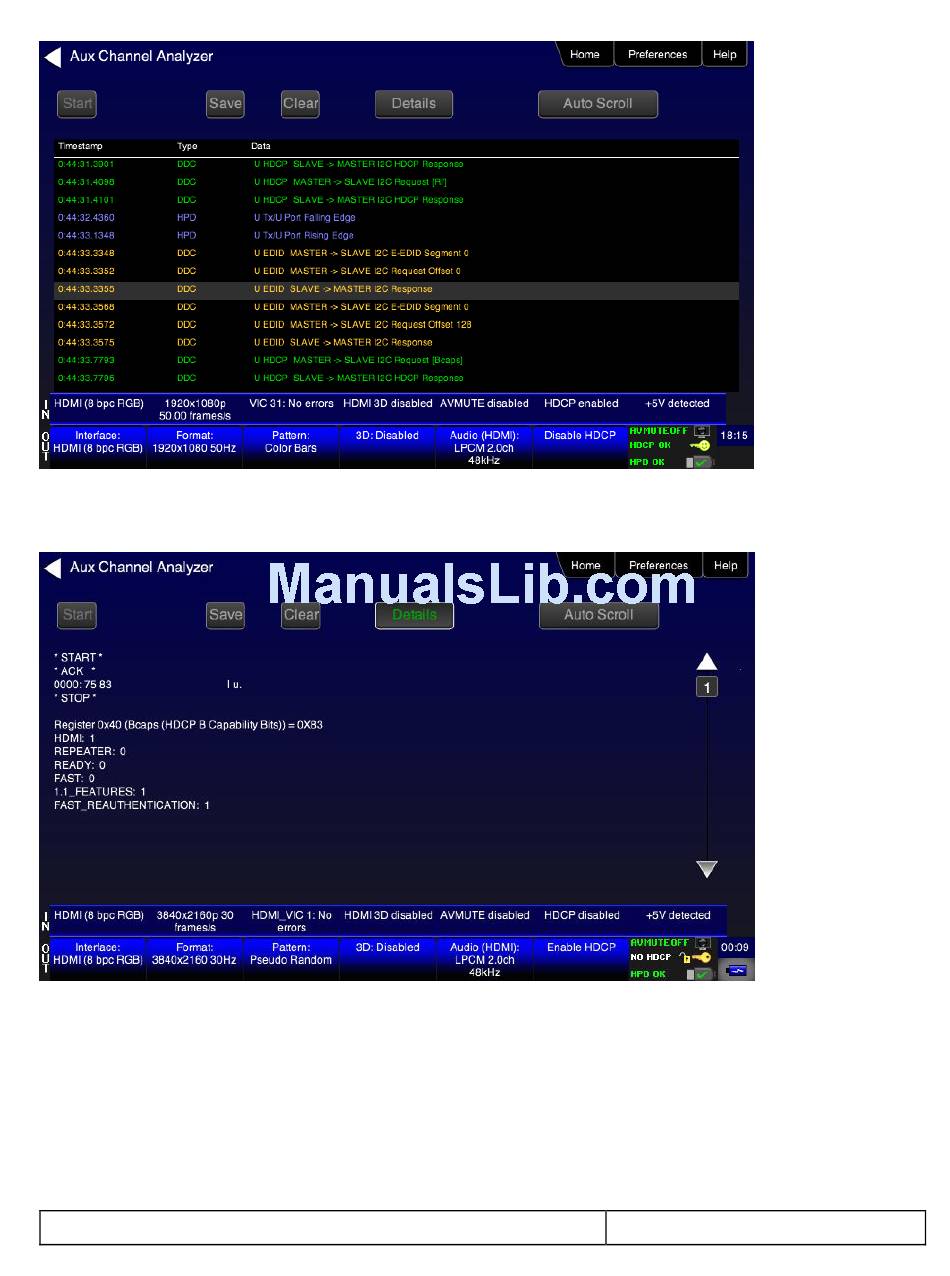

8. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen. This example shows the
BCAPS register details. Touch select the Details activation button again to return to the trace view.
10. Touch select Stop activation button (top left) to halt the collection of messages.
11. Touch select Clear activation button (top center) to clear the collected of messages.
8.5 Auxiliary Channel Analyzer – Monitoring of CEC Messages
The Aux Channel Analyzer test monitors the CEC channel message while emulating HDMI/HDBaseT devices.
The features and functions described in this section are included only if you have purchased the
Auxiliary Channel Analyzer option.
September 29, 2014
Page 168
Revision A1
