780C Multi-Interface Interoperability Tester – User Guide
6. Take whatever action necessary to initiate a new HDCP authentication. Typically this would be a hot plug
event, for example a disconnection and reconnection on the 780C HDMI/HDBaseT IN port.

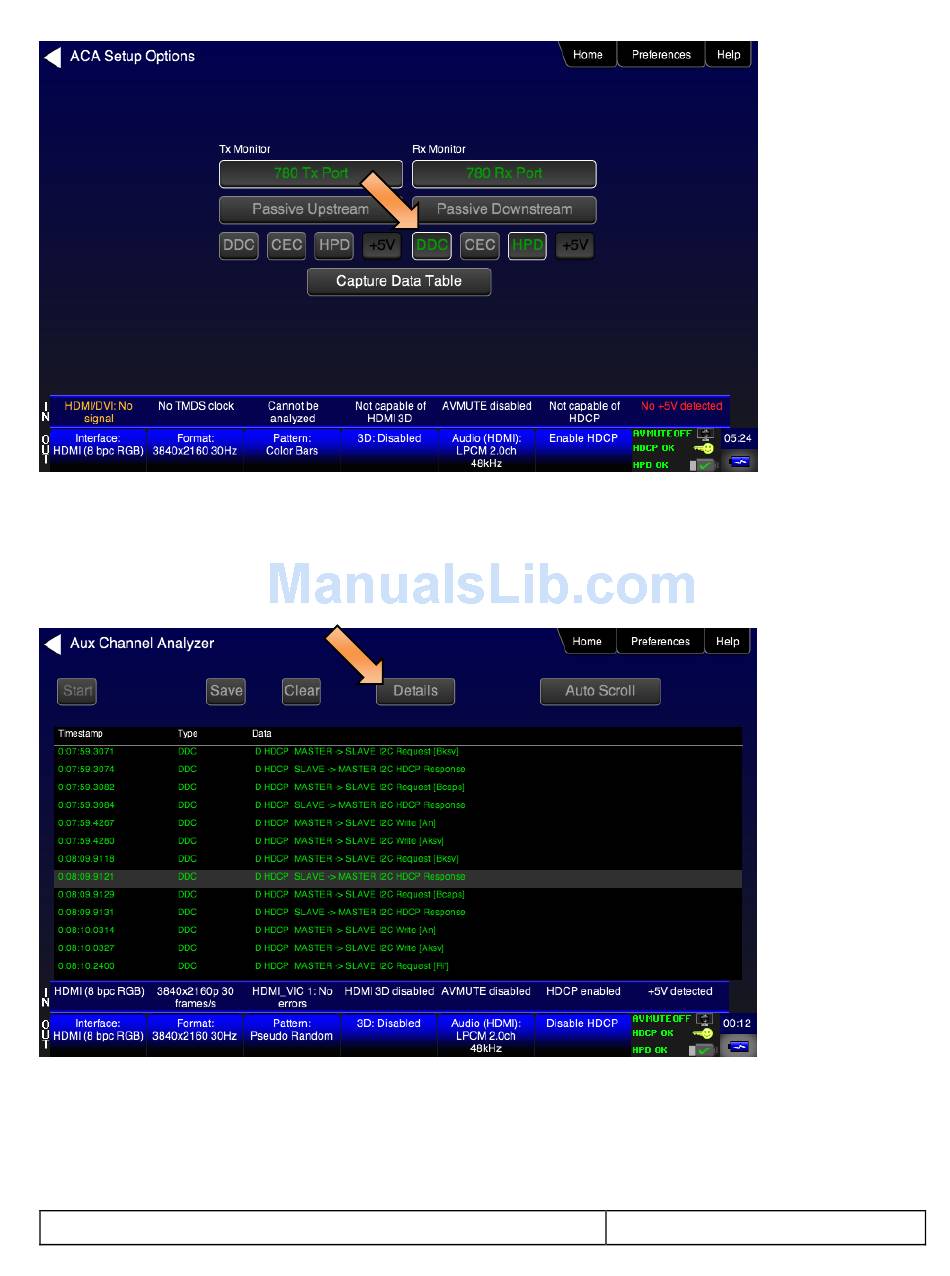

7. Touch select the Capture Data Table activation button to access the Auxiliary Channel Analyzer screen.
Then touch select Start to initiate the capturing of the data. A screen similar to the one shown below will
appear.
8. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen. The screen below shows a
detailed view of the BCAPS register.
