780C Multi-Interface Interoperability Tester – User Guide
3.4

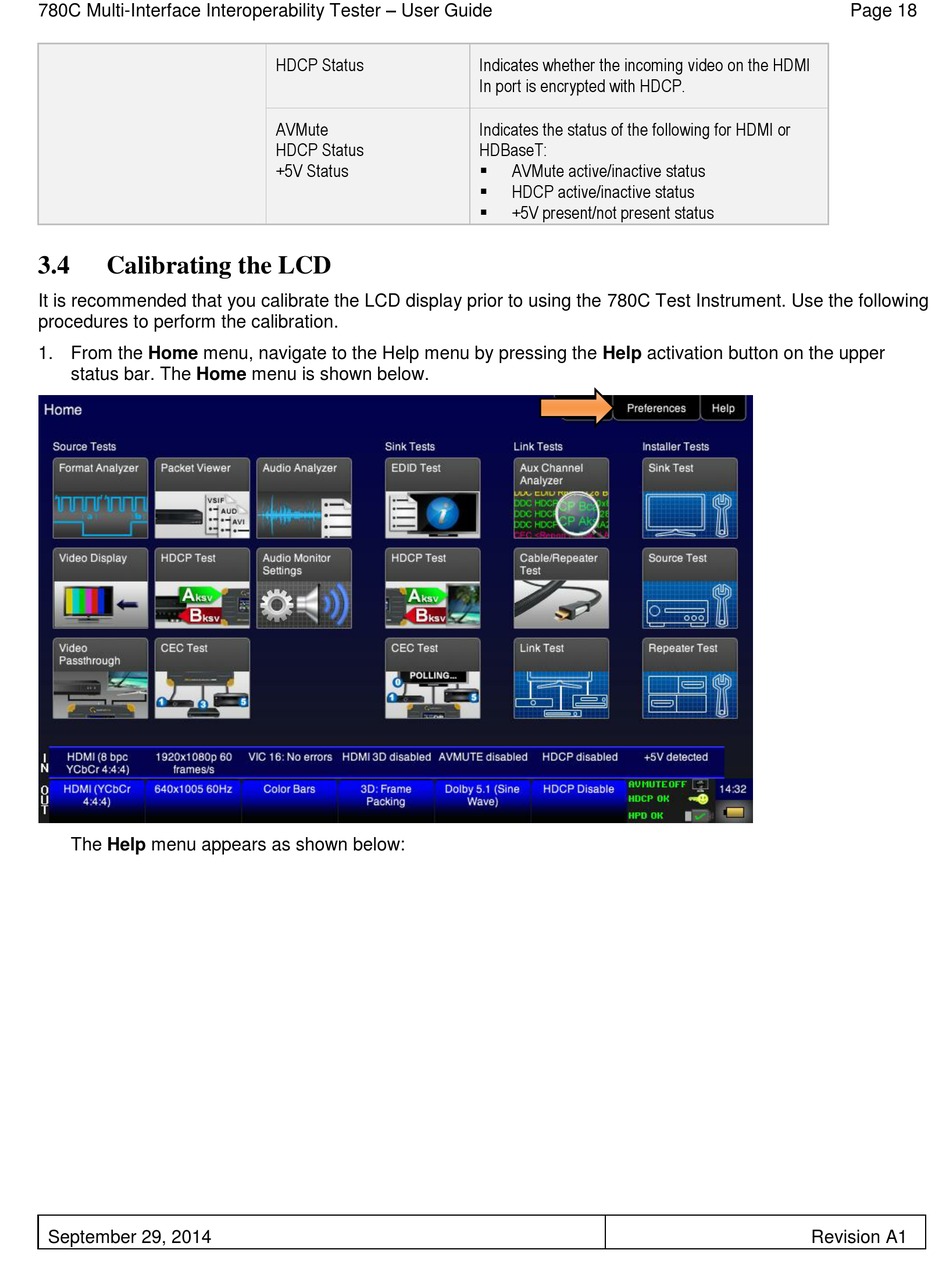

Calibrating the LCD

It is recommended that you calibrate the LCD display prior to using the 780C Test Instrument. Use the following
procedures to perform the calibration.
1. From the Home menu, navigate to the Help menu by pressing the Help activation button on the upper
status bar. The Home menu is shown below.
The Help menu appears as shown below:
September 29, 2014
HDCP Status
AVMute
HDCP Status
+5V Status
Indicates whether the incoming video on the HDMI
In port is encrypted with HDCP.
Indicates the status of the following for HDMI or
HDBaseT:
AVMute active/inactive status

HDCP active/inactive status

+5V present/not present status

Page 18
Revision A1
