780C Multi-Interface Interoperability Tester – User Guide
Table 6-2: Audio Analyzer
Audio IEC Header decoded data (left side)
Word length
6.4.4

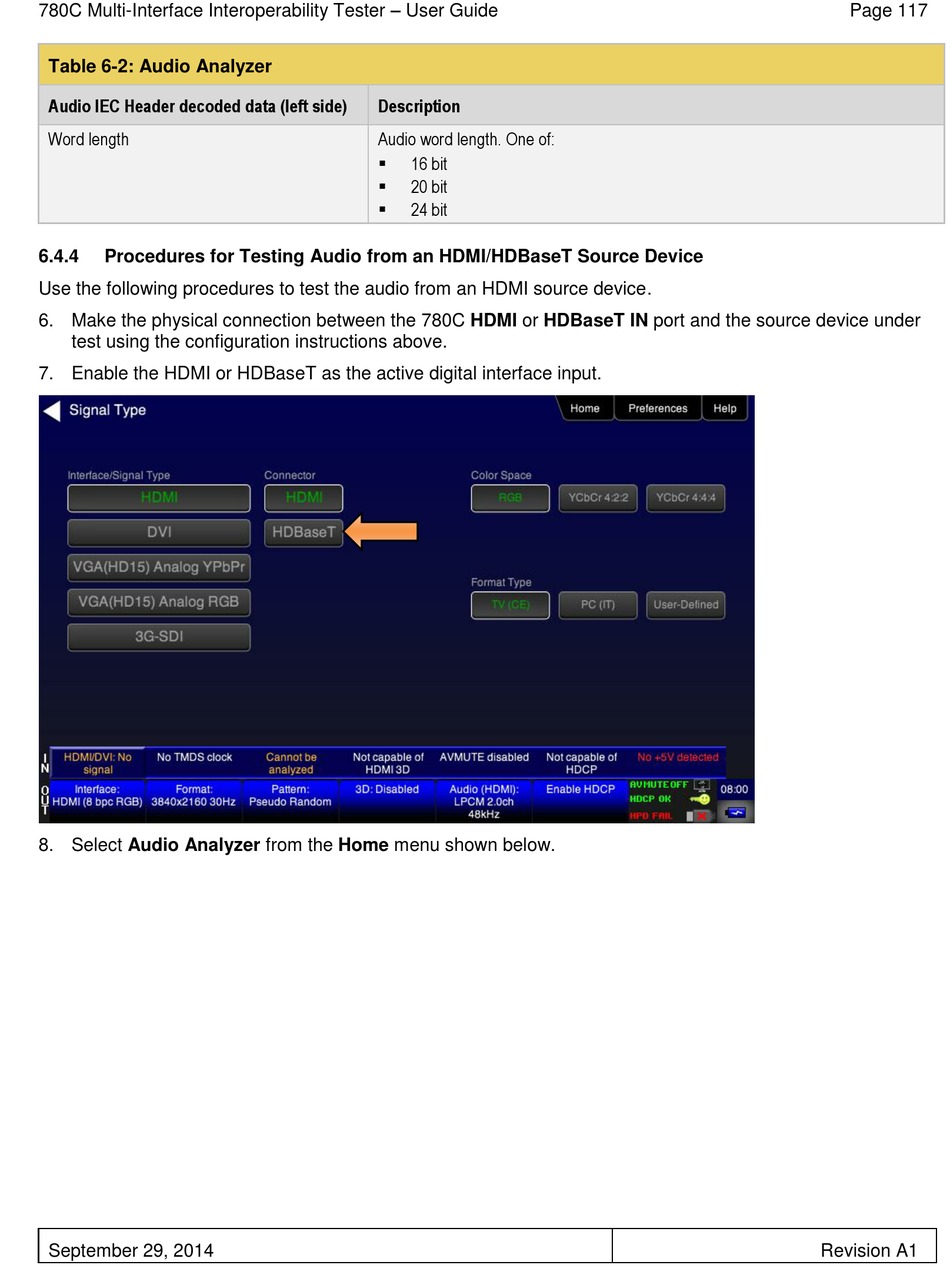

Procedures for Testing Audio from an HDMI/HDBaseT Source Device

Use the following procedures to test the audio from an HDMI source device.
6. Make the physical connection between the 780C HDMI or HDBaseT IN port and the source device under
test using the configuration instructions above.
7. Enable the HDMI or HDBaseT as the active digital interface input.
8. Select Audio Analyzer from the Home menu shown below.
September 29, 2014
Description
Audio word length. One of:
 16 bit
20 bit

 24 bit
Page 117
Revision A1
