780C Multi-Interface Interoperability Tester – User Guide

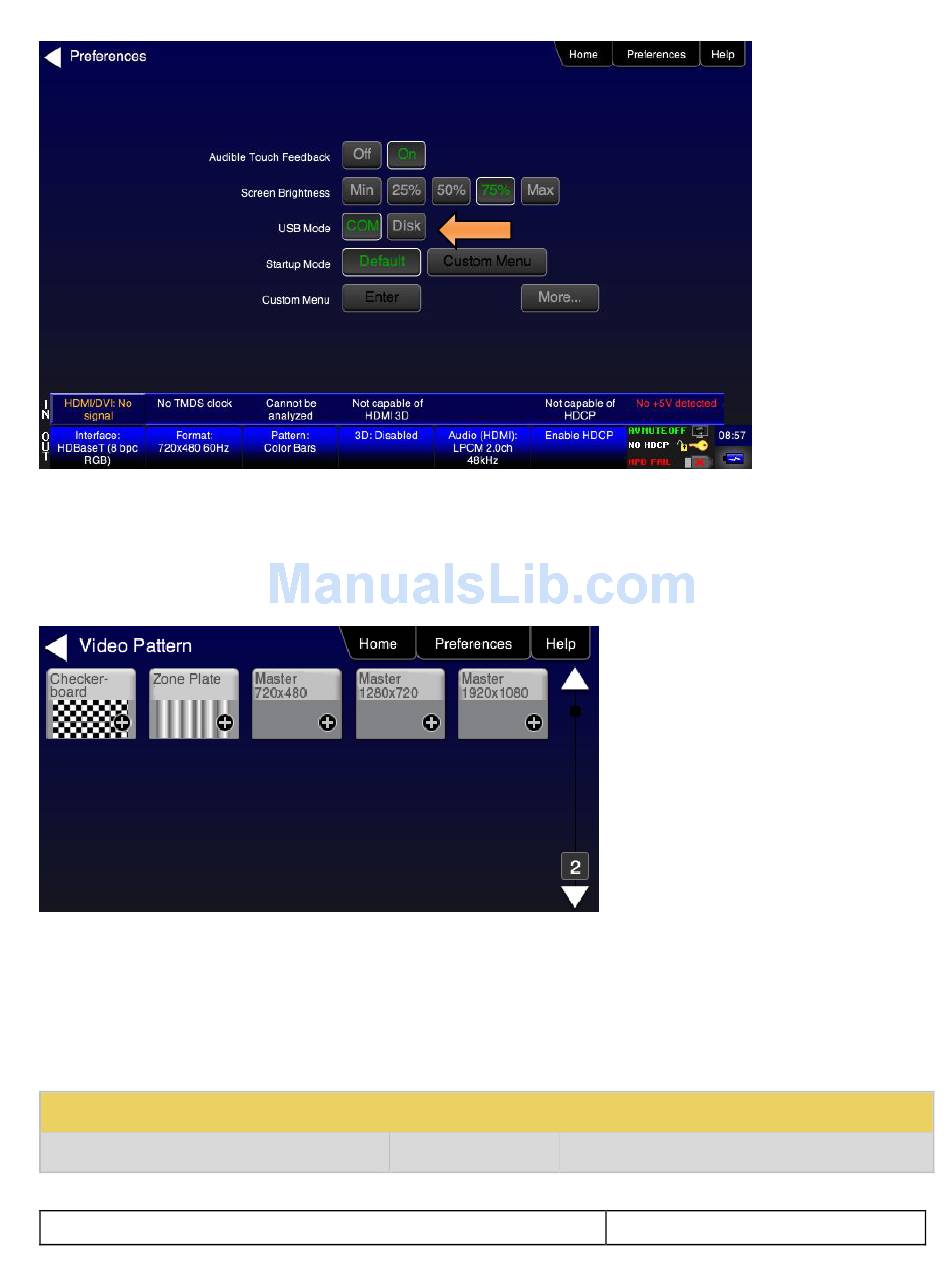

10. Touch select COM for the USB Mode (refer to the screen above).
11. Power cycle the 780C.
12. Navigate to the Video Pattern menu.
You should now see the new bitmap image(s) on the pattern list (below).

11.3.4 Procedures for Loading Bitmaps from SD Card

Use the procedures below to load bitmaps from an SD card.
1. Load your bitmaps on to the SD card from your PC using a USB SD card reader.
2. Create the UserPats.txt text file listing your bitmaps. Use the information in Table 10-2 below to construct
your text file:
Table 10-2: Importing Bitmaps – UserPats.txt file
Bitmap Name (use 8.3 naming convention)
September 29, 2014
Bitmap Resolution UserPats.txt Text File Structure
Page 203
Revision A1
