780C Multi-Interface Interoperability Tester – User Guide
DVI
HDBaseT
3G-SDI
YPbPr Analog
RGB Analog

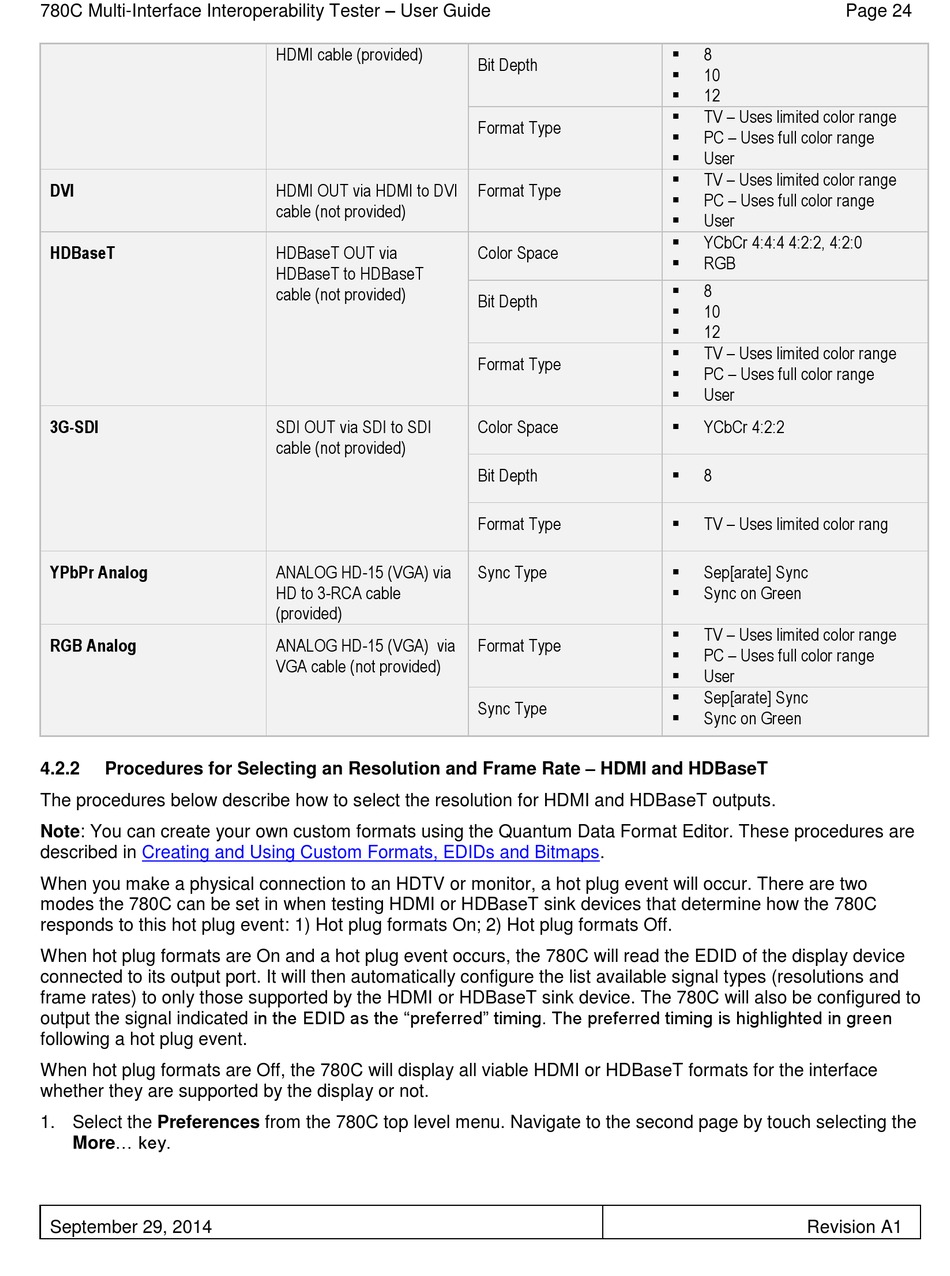

Procedures for Selecting an Resolution and Frame Rate – HDMI and HDBaseT
4.2.2
The procedures below describe how to select the resolution for HDMI and HDBaseT outputs.
Note: You can create your own custom formats using the Quantum Data Format Editor. These procedures are
described in Creating and Using Custom Formats, EDIDs and
When you make a physical connection to an HDTV or monitor, a hot plug event will occur. There are two
modes the 780C can be set in when testing HDMI or HDBaseT sink devices that determine how the 780C
responds to this hot plug event: 1) Hot plug formats On; 2) Hot plug formats Off.
When hot plug formats are On and a hot plug event occurs, the 780C will read the EDID of the display device
connected to its output port. It will then automatically configure the list available signal types (resolutions and
frame rates) to only those supported by the HDMI or HDBaseT sink device. The 780C will also be configured to
output the signal indicated in the EDID as the "preferred" timing. The preferred timing is highlighted in green
following a hot plug event.
When hot plug formats are Off, the 780C will display all viable HDMI or HDBaseT formats for the interface
whether they are supported by the display or not.
1. Select the Preferences from the 780C top level menu. Navigate to the second page by touch selecting the
More... key.
September 29, 2014
HDMI cable (provided)
HDMI OUT via HDMI to DVI
cable (not provided)
HDBaseT OUT via
HDBaseT to HDBaseT
cable (not provided)
SDI OUT via SDI to SDI
cable (not provided)
ANALOG HD-15 (VGA) via
HD to 3-RCA cable
(provided)
ANALOG HD-15 (VGA) via
VGA cable (not provided)
Bit Depth
Format Type
Format Type
Color Space
Bit Depth
Format Type
Color Space
Bit Depth
Format Type
Sync Type
Format Type
Sync Type
Bitmaps.
Page 24
8

10

 12
TV – Uses limited color range

PC – Uses full color range

 User
TV – Uses limited color range

PC – Uses full color range

 User
YCbCr 4:4:4 4:2:2, 4:2:0

RGB

8

 10
12

TV – Uses limited color range

 PC – Uses full color range
 User
YCbCr 4:2:2

 8
TV – Uses limited color rang

Sep[arate] Sync

Sync on Green

TV – Uses limited color range

PC – Uses full color range

 User
Sep[arate] Sync

Sync on Green

Revision A1
