780C Multi-Interface Interoperability Tester – User Guide
4.1.2
Connecting the 780C to the Display Device - HDBaseT
Use the following procedures to make the physical connections from the 780C to the display device under test.
1. Make the cable connection between the appropriate the 780C video HDBaseT output connector and the
input connector of the HDBaseT device.

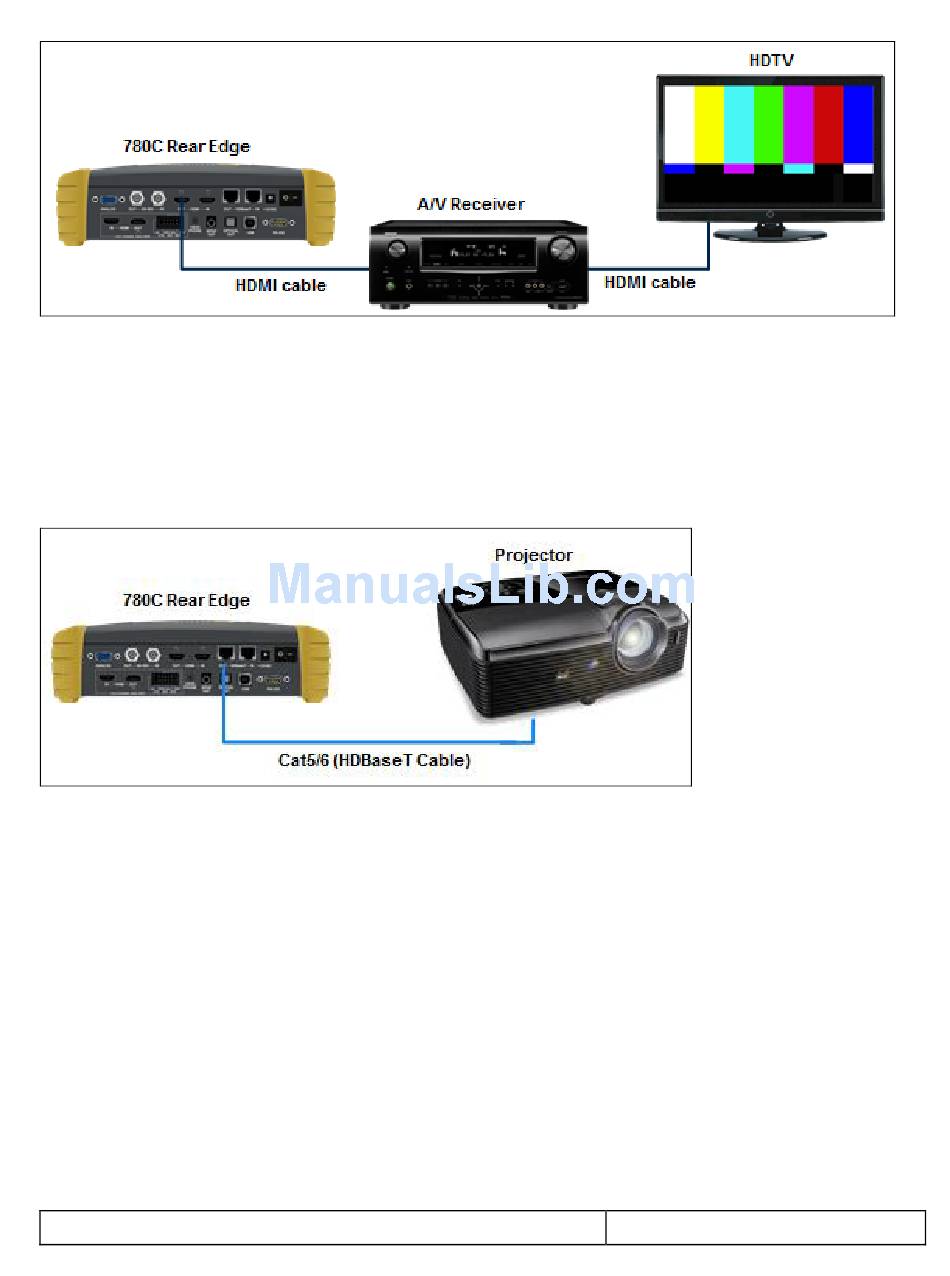

The following illustrations depict the typical test configurations.
4.1.3
Connecting the 780C to the Display Device - SDI
Use the following procedures to make the physical connections from the 780C to the display device under test.
1. Make the cable connection between the appropriate the 780C video SDI output connector and the input
connector of the display or monitor using the cables supplied.
