3. Select the CEC to monitor. In this application you would select Passive Upstream. Note that you need
only set either the Passive Upstream or Passive Downstream.
4. Enable HDCP on the HDMI source device under test. Use the procedures in the section entitled:
HDCP on an HDMI HDTV or HDMI Repeater
5. Take whatever action necessary to initiate CEC messages.

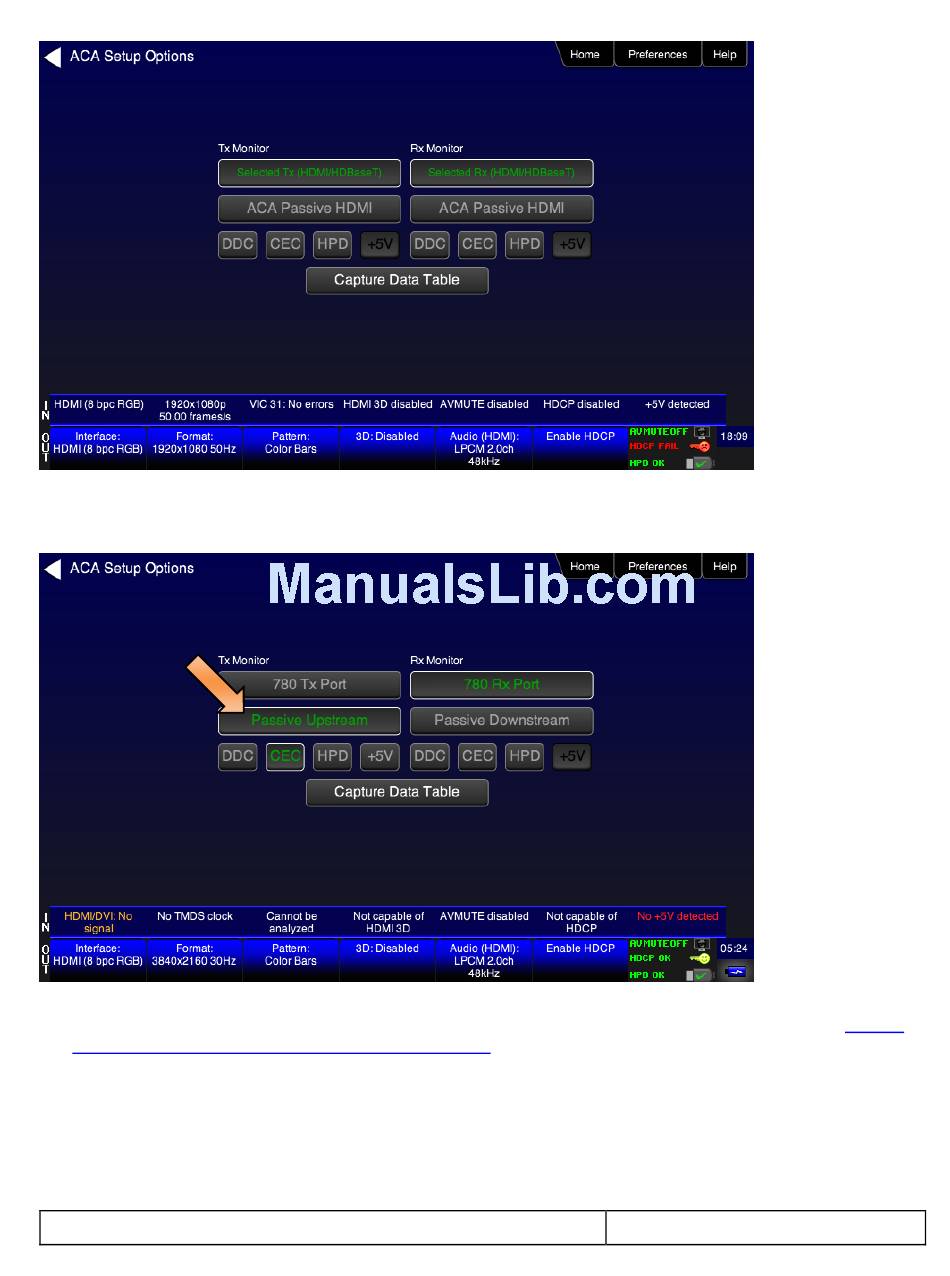

6. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear.
