780C Multi-Interface Interoperability Tester – User Guide
Page 184

10.1.3 Procedures for Running the Auto EDID Test

This subsection provides procedures for running the optional Auto EDID Test on an HDMI source or upstream
network. The procedure assumes that you have the EDIDs saved on the 780C and also the AutoEDID test list

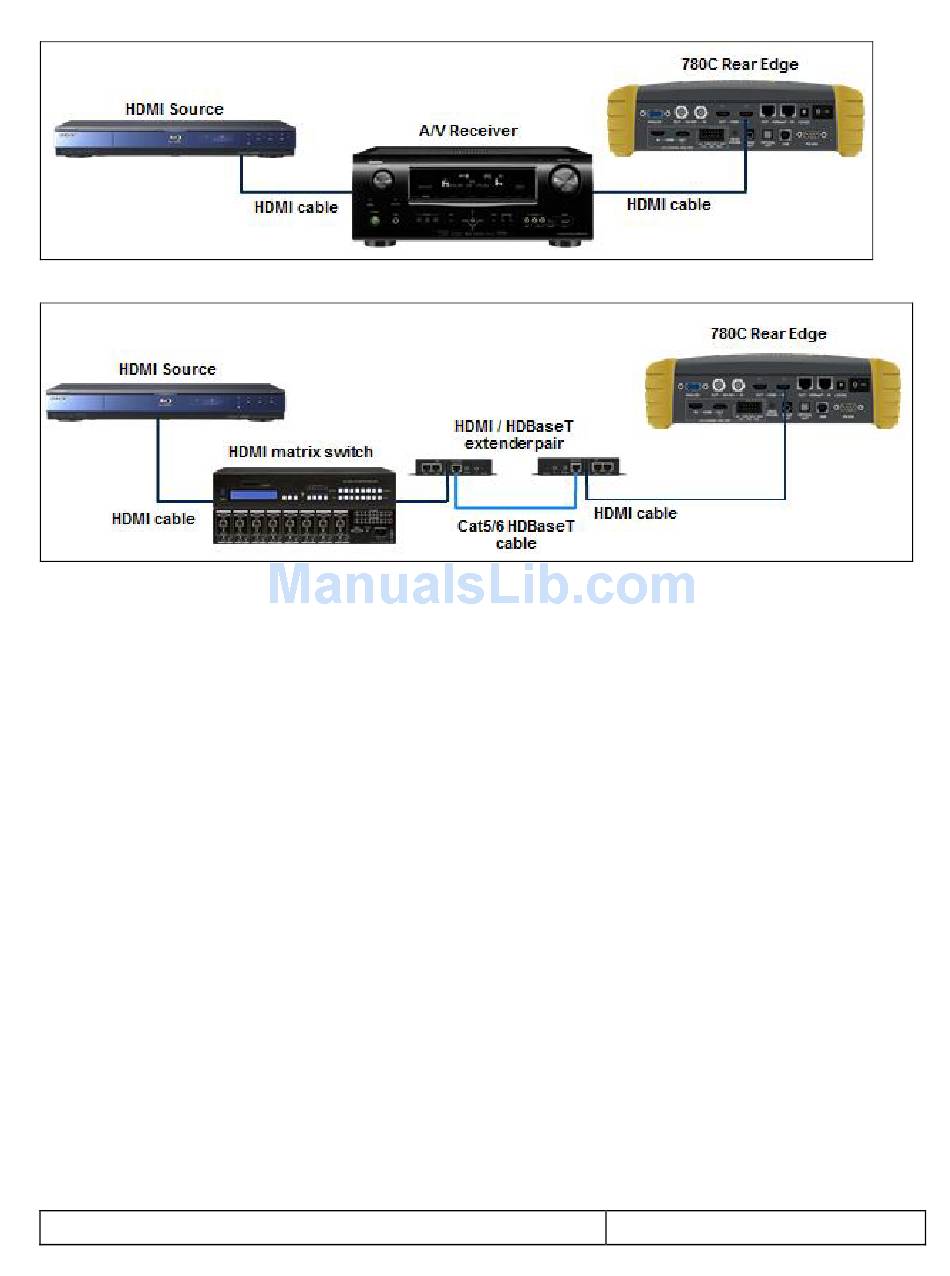

file using the procedures above. The procedures also assume that you have the source device connected to
the 780C's HDMI Rx port.
Important Note: If you wish to run the optional text report, you will have to have installed a suitable SDCard
into the 780C at the SDCard input on the front edge. You will have to install the SDCard before you boot up
the 780C and run the test.
1. From the Home screen touch select the EDID Test application on the Sink Test region.
September 29, 2014 Revision A1
