780C Multi-Interface Interoperability Tester – User Guide
HDMI/HDBaseT IN) are connected to HDMI/HDBaseT devices and which set of transactions you have
enabled (i.e. DDC, HPD on Tx or Rx side).
7. Enable HDCP on the 780C HDMI or HDBaseT OUT port. Use the procedures in the section entitled:
Testing HDCP on an HDMI HDTV or HDMI Repeater
8. Take whatever action necessary to initiate a new HDCP authentication. Typically this would be a hot plug
event at the sink device you are testing. Alternatively you can simply disable and re-enable HDCP on the
780C.

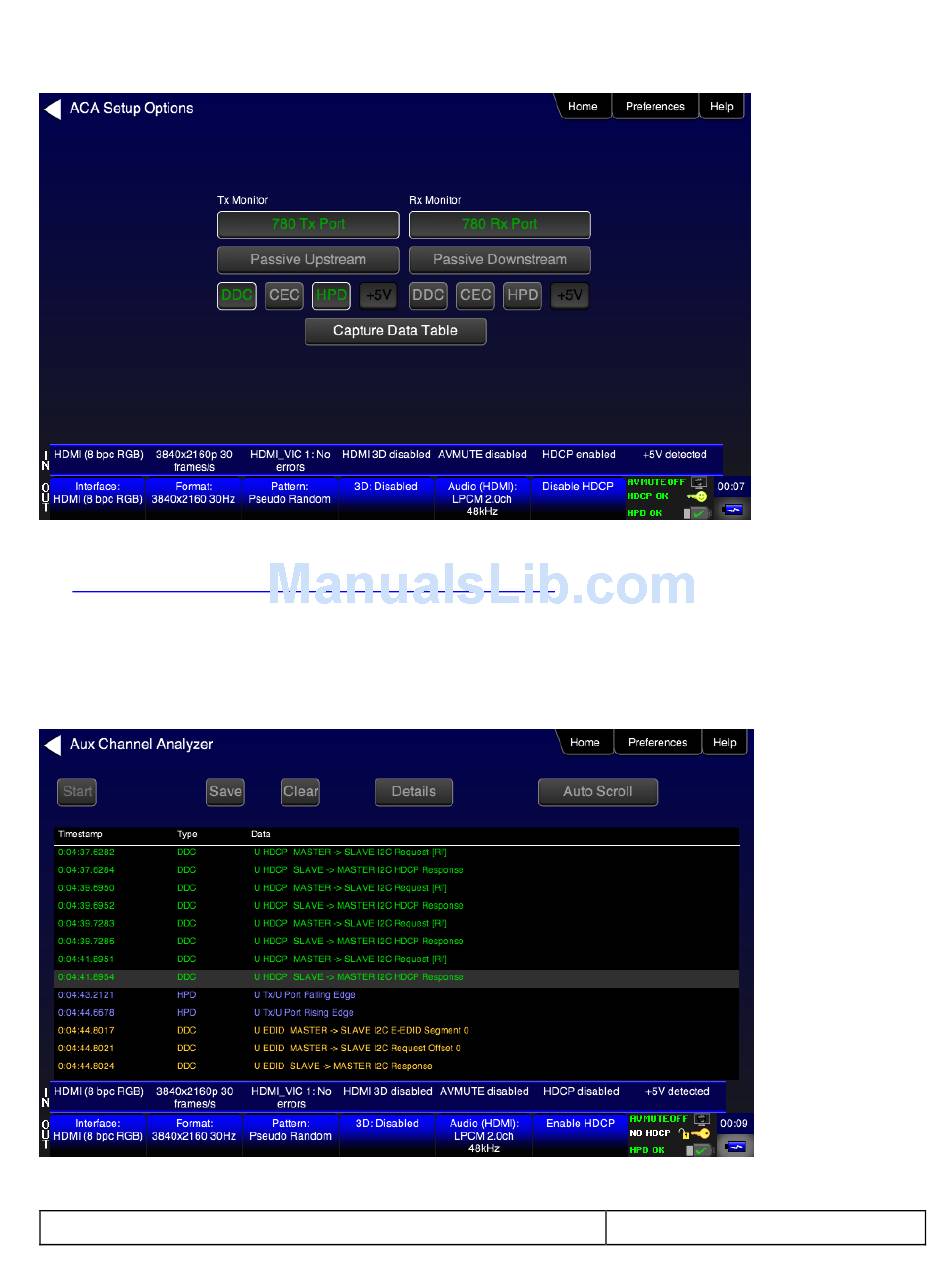

9. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear.
10. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen for the BCAPS register.
September 29, 2014
Device.
Page 155
Revision A1
