780C Multi-Interface Interoperability Tester – User Guide
2. Disconnect the source device at the near end of an HDMI distribution network and connect the HDMI cable
to the first 780's HDMI output connector.
3. Disconnect the sink device at the far end of an HDMI distribution network and connect the HDMI cable to
the second 780's HDMI input connector.

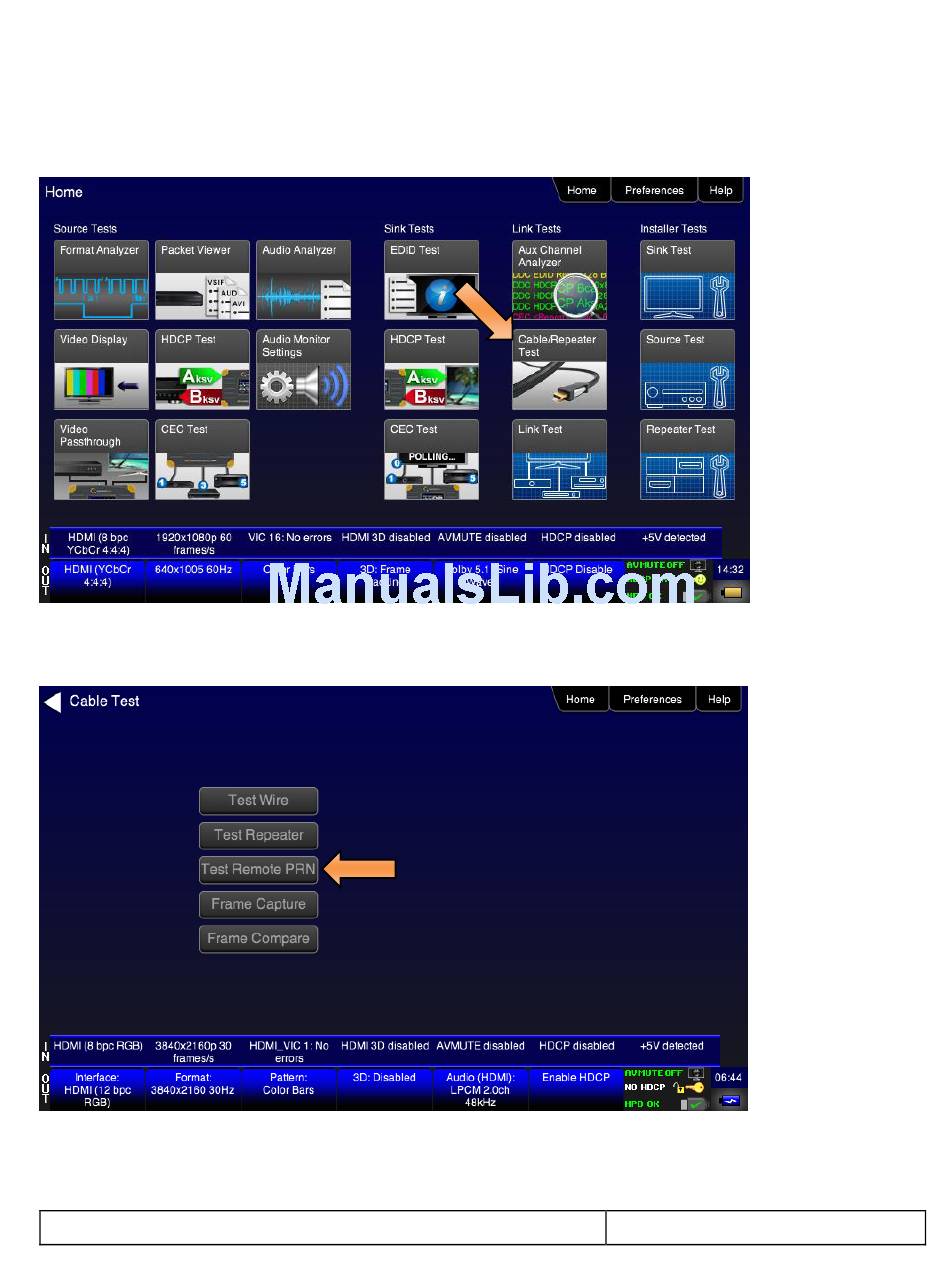

4. Touch select Cable/Repeater Test from the Home menu shown below.
The following screen appears:
5. Select Test Remote PRN to capture a reference frame.
