780C Multi-Interface Interoperability Tester – User Guide
Page 28
Procedures for Selecting a Resolution and Frame Rate – SDI
4.2.4
The procedures below describe how to select the resolution for the SDI output.
Note: You can create your own custom formats using the Quantum Data Format Editor. These procedures are
described in Creating and Using Custom Formats, EDIDs and Bitmaps.

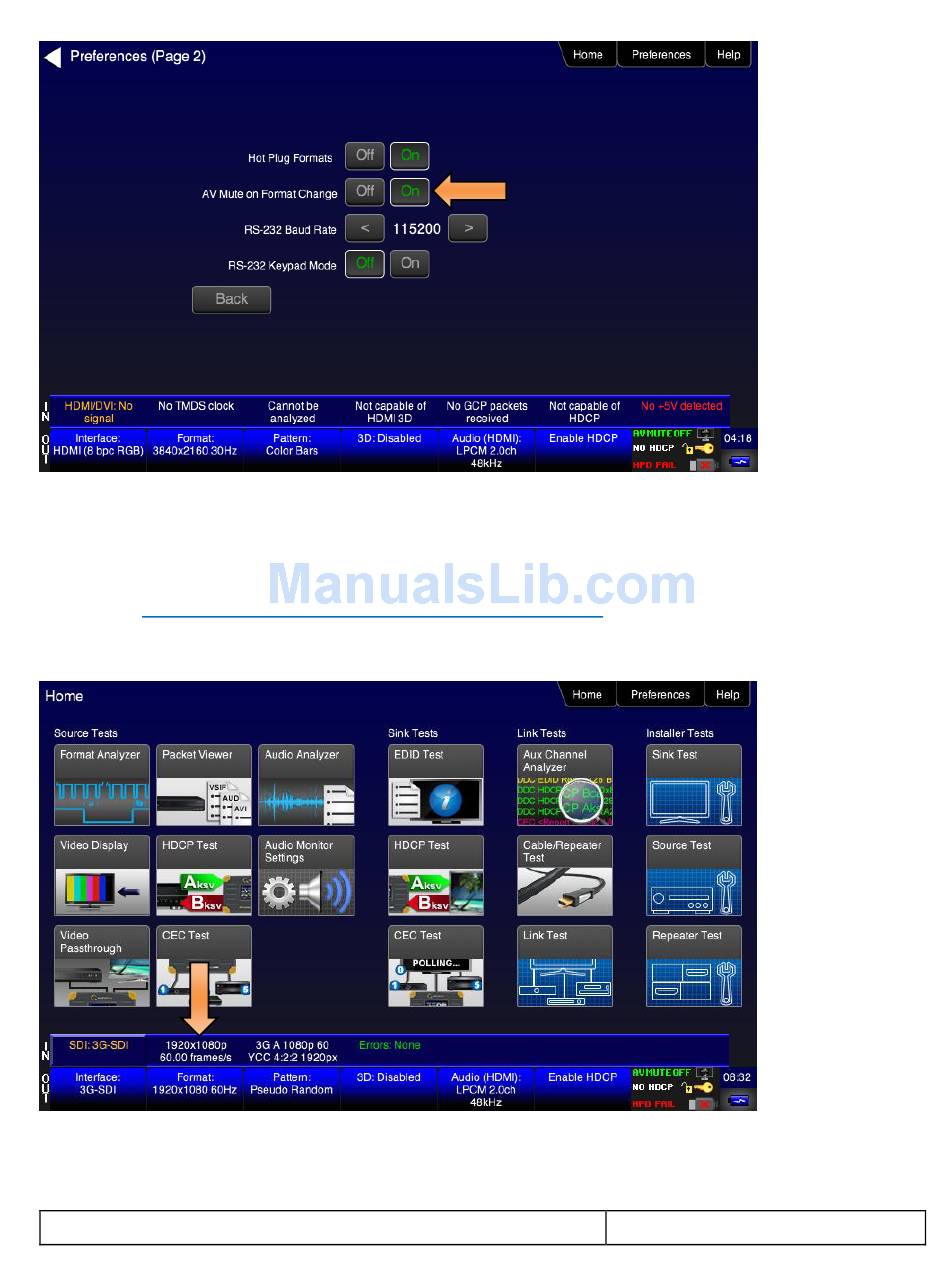

1. Touch select the Formats activation button on the Status bar OUT to access the Formats menu. Refer to
the figure below.
The Formats menu appears as shown below:
September 29, 2014 Revision A1
