The custom menus are setup using two text files that you create on your PC and transfer over to the 780C. The
two files are: 1) UserKeys.txt and 2) SeqMap.txt. The UserKeys.txt is a set of commands with menu key codes.
Each set of commands is a line in the text file.

11.4.1 To create a custom menu:

Use the following procedure to create a custom menu on your 780C.
1. Create a UserKeys.txt file or edit an existing file. An example of a UserKeys.txt file is shown below.
#F0 fmtl 720p60;imgl user01;fmtu
#F1 fmtl 1080p60;imgl pgcwrgb;fmtu
#F2 fmtl 480p60;imgl smptebar;fmtu
#F3 fmtl dmt0660;imgl ramp;fmtu
#F4 fmtl 1080i30;imgl focus;fmtu
#FF fmtl dmt0660;imgl smpte;fmtu
Note that the commands are separated by a semicolon. In the example above in the first line there is a custom
bitmap image "user01" that is used.
2. Create a SeqMap.txt file or edit an existing file. An example of a SeqMap.txt file is shown below.
The SeqMap.txt then maps the commands listed in the UserKeys.txt file to a name and a location on the
custom menu. The following is an example of a SeqMap.txt file.
#F0 720p Master
#F1 1080p PGCWrgb
#F2 480p SMPTEbar
#F3 DMT0660 Ramp
#F4 1080i Focus
#FF Go Home

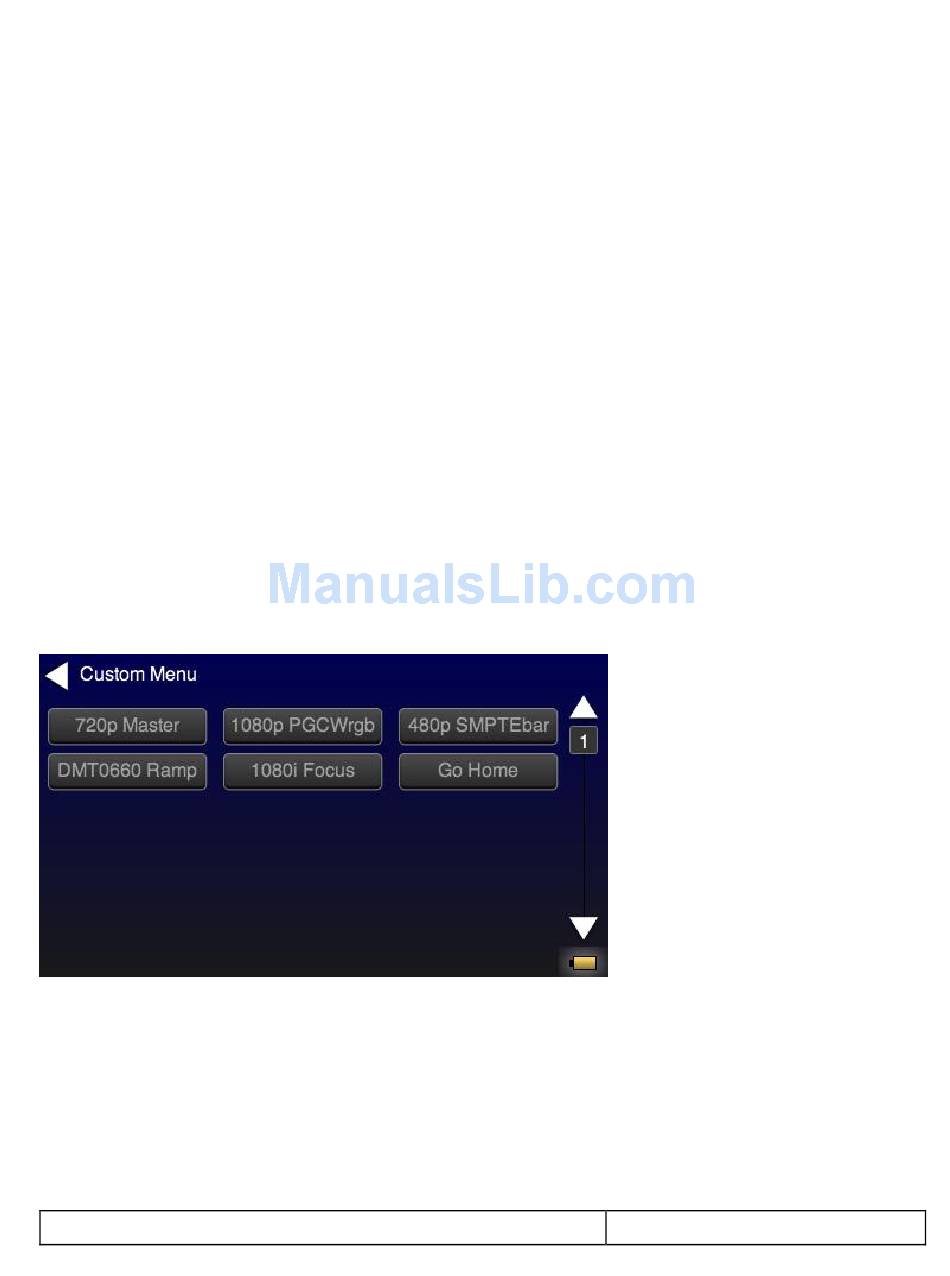

The result of these two files would be the following custom menu:
Touch selecting the key labeled "1080p PGCWrgb" would cause the following command sequence to execute:
#F1 fmtl 1080p60;imgl pgcwrgb;fmtu // loads 1080p60 format,
displays pgcwrgb test pattern

11.4.2 To access custom menus:

Use the following procedure access the custom menu on your 780C.
1. Navigate to the Preference menu by selecting the Preferences tab from the Home menu.
September 29, 2014 Revision A1
