780C Multi-Interface Interoperability Tester – User Guide

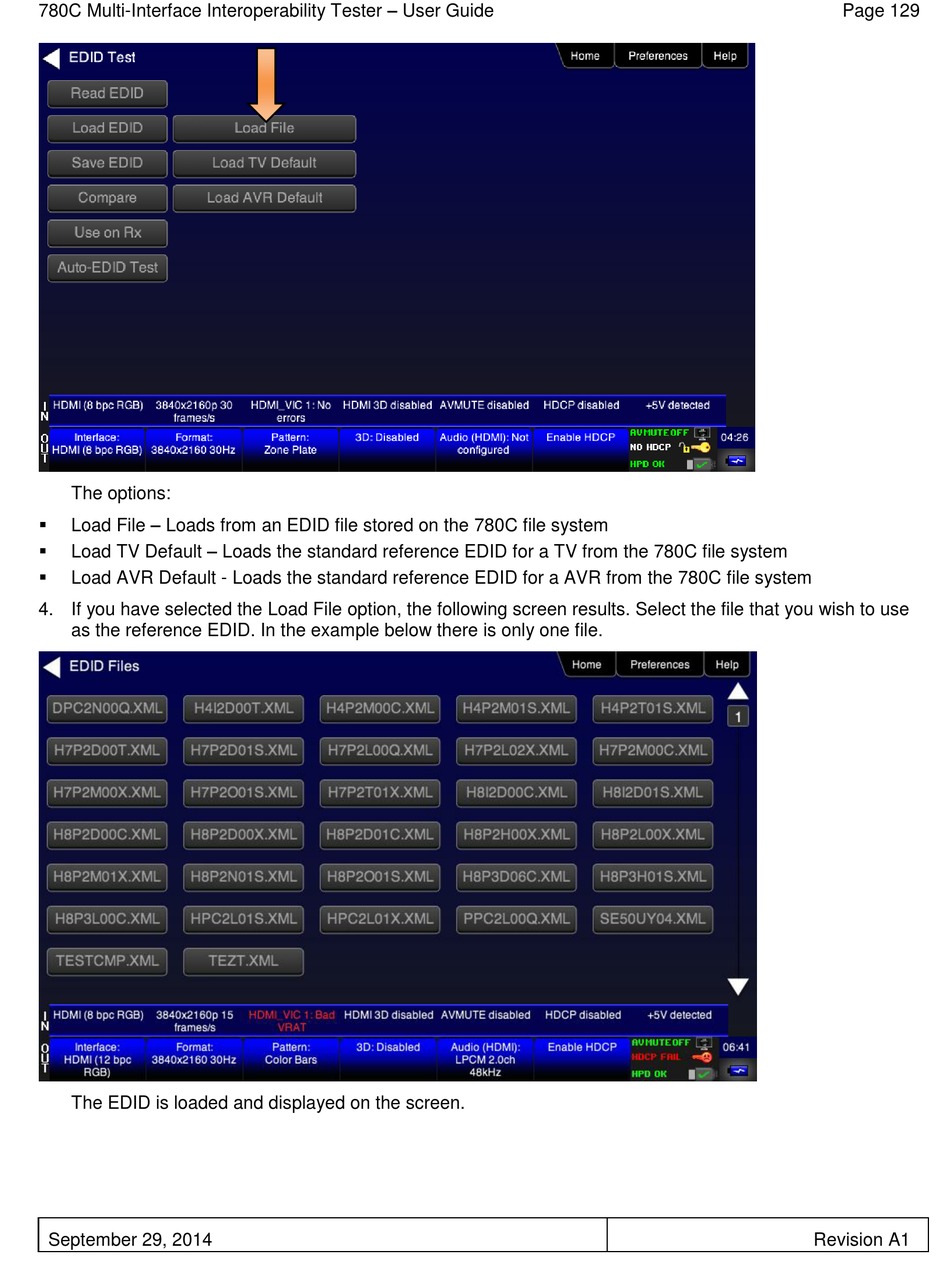

The options:
 Load File – Loads from an EDID file stored on the 780C file system
 Load TV Default – Loads the standard reference EDID for a TV from the 780C file system

Load AVR Default - Loads the standard reference EDID for a AVR from the 780C file system
4. If you have selected the Load File option, the following screen results. Select the file that you wish to use
as the reference EDID. In the example below there is only one file.
The EDID is loaded and displayed on the screen.
